The My-Control; Front View Of The My-Control - Getinge Applikon my-Control Hardware Manual

The my-Control is a full-size biocontroller dedicated to controlling a bioreactor process. It contains:
• Fixed and adaptive PID control for pH, dO
• Stirrer Speed control
• Foam and/or Level control
• Additional (freely configurable) measuring channels / PID control loops, such as:
- (max. 4) Analog Inputs for sensors / measuring devices
- (max. 4) Scales (USB) for Feed Control
- Additional sensors for pH and dO
- Biomass Monitor (USB)
Inside the my-Control, the following actuators are supported:
• Variable speed Micro Valve tubing pumps / connections (max. four mounting positions)
• Gas Solenoid Valves with Tuning Valve for aeration (max. four internal mounting positions)
• Mass Flow Controllers for aeration (internal mounting)
• Power Supply for heating (Heating Blanket or Thermo-Electric element) and cooling (Thermo-Electric
element or a connection for an external cooling valve)
3.1

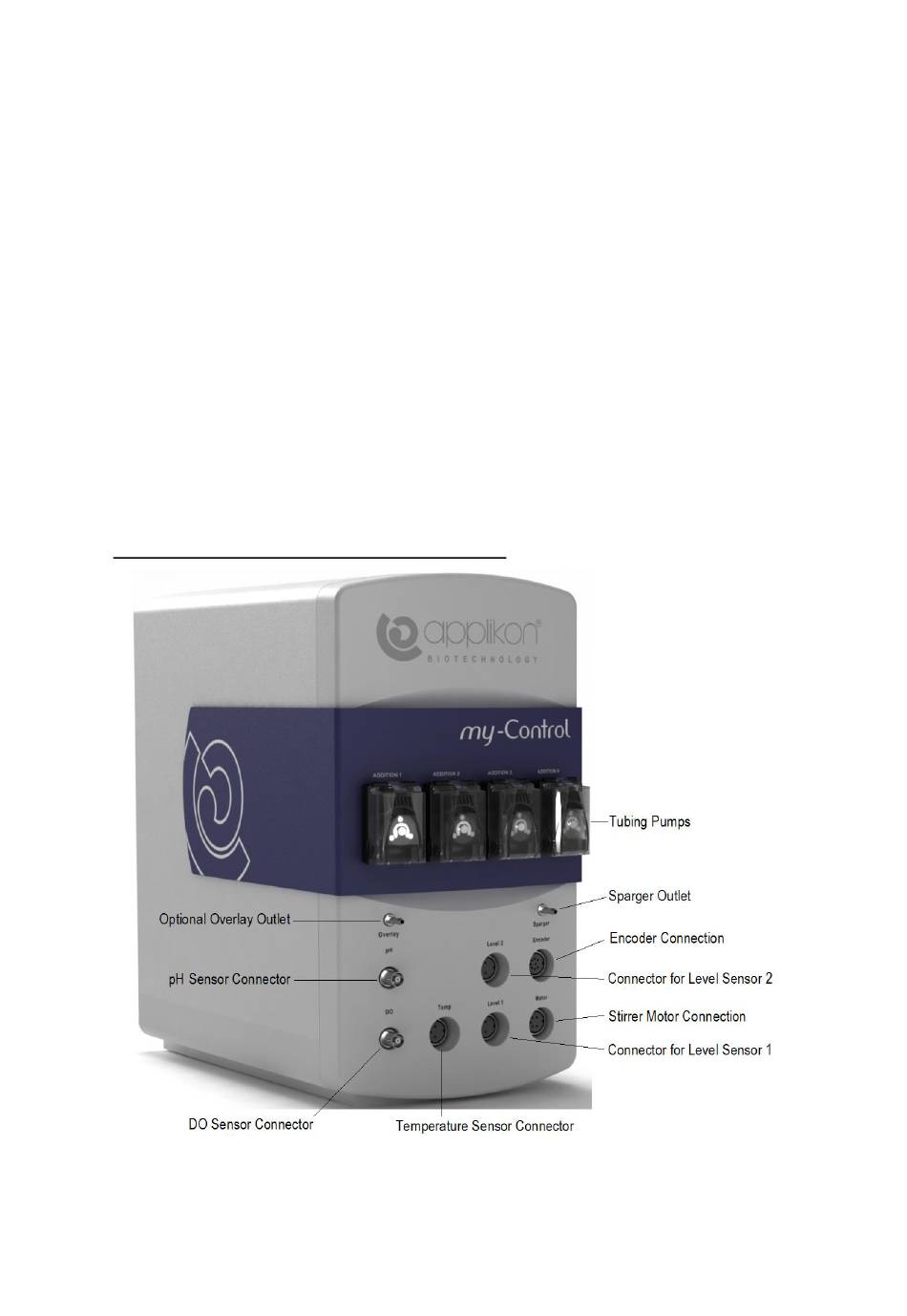

FRONT VIEW OF THE my-CONTROL

The rear view of the my-Control is presented on the next page.
Hardware Manual my-Control MiniBio

3 THE my-CONTROL

and Temperature
2
(USB)
2
THE my-CONTROL
11
