The my-Control may be equipped with different internal actuators for aeration and addition of liquid:
• Solenoid valve with tuning valve per gas inlet line (nitrogen, air, oxygen and carbon dioxide)
• 1-channel or 3-channel mass flow controller
• Tubing pump for liquid additions
Gasses that are used for aeration and pH control (CO
-Required inlet pressure for the gasses: 2 barg.
-Required quality of the gasses:
A micro valve may be applied as external actuator. Refer to the section about the micro valve.
4.1

SOLENOID VALVE WITH TUNING VALVE

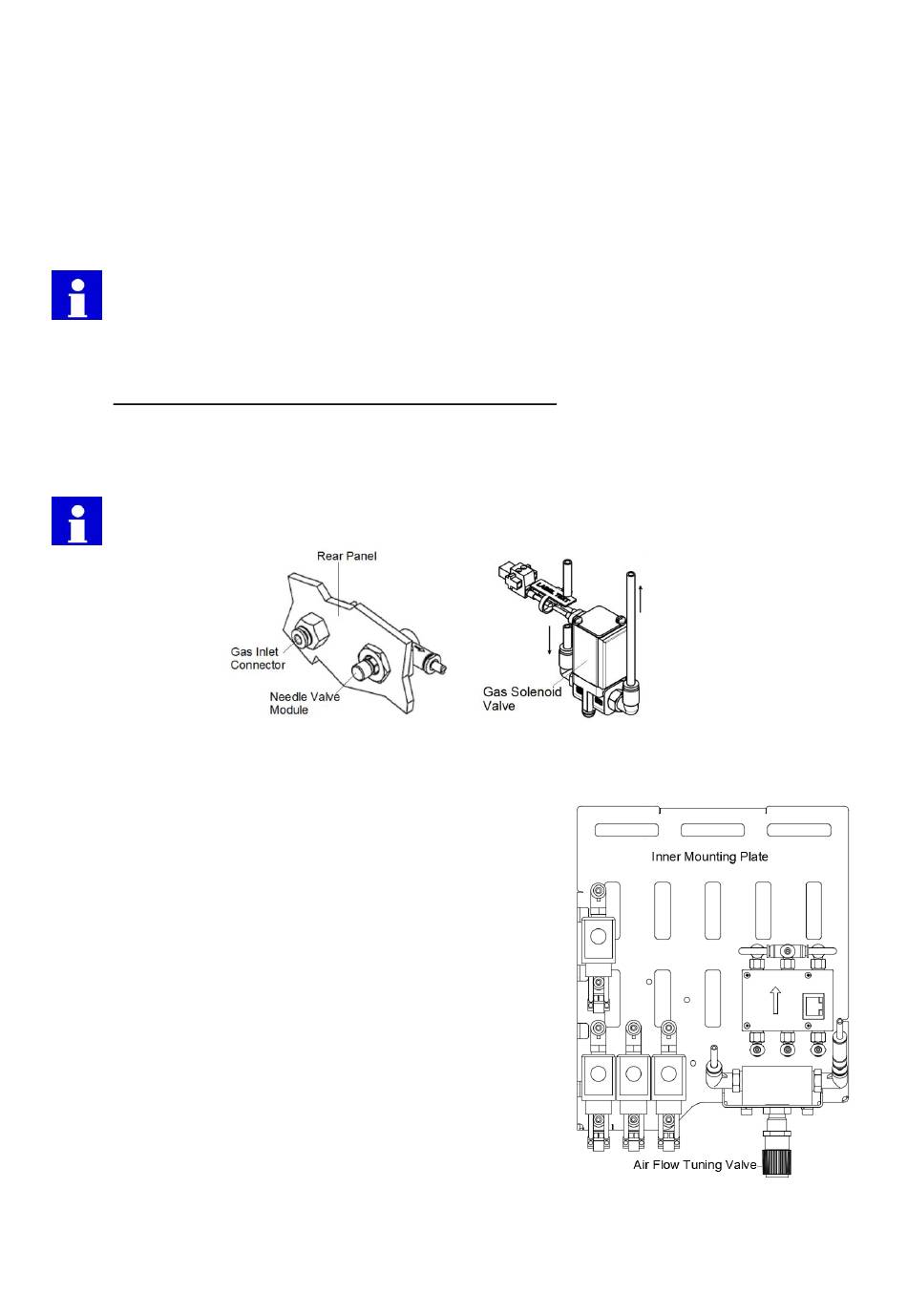

Per gas inlet line, inside the my-Control a solenoid valve may be installed. The individual gas flows can be
manually tuned by a Needle Valve Module. The needle valve module includes a Non-Return valve that
prevents back-flow of gas.
By default, the tuning valve is set to the required gas flow.
Changing the tuning valve setting must only be performed while using a flow meter.
Z310212012* Gas Solenoid Valve Assembly 24 VDC SMC
Z310212022* Gas Needle Valve Module (including the Non-Return Valve)
*Additional (needle ) valves must be installed by a certified Service Engineer.
For gas flows up to 200 ml/min, a precision metering valve is
available for more accurate gas flow regulation:
This metering valve is located inside the Control Console cabinet.
Changing the default gas flow requires opening the cabinet and
must only be performed by qualified personnel.
Top View image of the inner mounting plate with the precision air
flow tuning valve(s) installed:
If two or more metering valves are installed, they are mounted on
top of each other.
Z310212021* Precision Metering Valve Module
(including the Non-Return Valve)
*Additional Metering Valves must be installed by a certified
Service Engineer.
Hardware Manual my-Control MiniBio

4 INTERNAL ACTUATORS

) must comply with the following specifications:
2
Instrument grade (dry and free of particles or oil).
