Connection For Sparging - Getinge Applikon my-Control Hardware Manual

MFC Ordering Information:
Z310212120* 1-Channel MFC Assembly for my-Control
Z310212320* 3-Channel MFC Assembly for my-Control
Z310212110* Mounting Kit for 1-Channel MFC my-Control
Z310212310* Mounting Kit for 1-Channel MFC my-Control
When one or more MFCs must be added to an existing my-Control, one of the cables below must be
ordered: VBL2080321* Cable Act. Board MFC (to connect the 1- or 3-channel MFC with the actuator
board)
VBL2080351* Cable Act. Board MFC 2x (T-piece with extension cable to connect an additional MFX)
* Additional Mass Flow Controllers must be installed by a certified Service Engineer.
4.3

CONNECTION FOR SPARGING

An Aeration Outlet for Sparging is located at the
front of the my-Control cabinet.
A second outlet for Overlay is optional.
Z310212071 Gas Overlay Connection
Z310212081 Gas Overlay Blind Plug

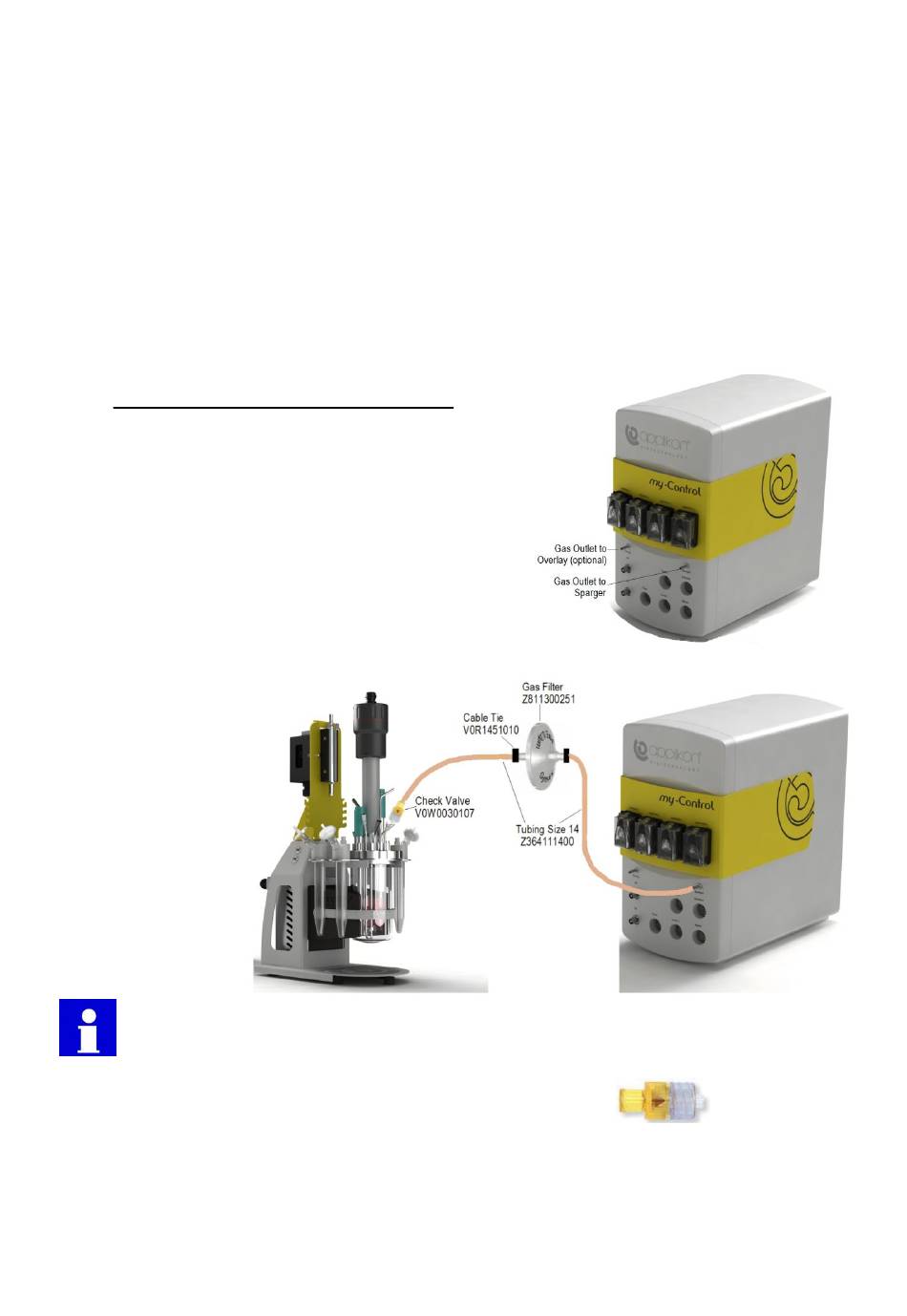

The connection between the my-Control and a MiniBio reactor can be made according to the image below:
If a CO valve or mass flow controller is used as actuator in pH Control (instead of an acid pump),
2
it is advised to mount Check Valve V0W0030107 at the inlet of the sparger pipe (see the above
image). When the gas flow stops, CO
causing a vacuum in the gas inlet line. As a result, medium can wet the Gas Inlet Filter.
V0W0030107 Duckbill Check Valve with Male and Female Luer Locks
The Check Valve (part of the Start-up Kits) has a yellow inlet (female Luer lock) and a clear outlet (male
Luer lock).
Hardware Manual my-Control MiniBio
gas in the sparger pipe will slowly dissolve in the medium,
2
INTERNAL ACTUATORS
21
