EXTERNAL ACTUATORS

5.3.3 MICRO VALVE SETUP

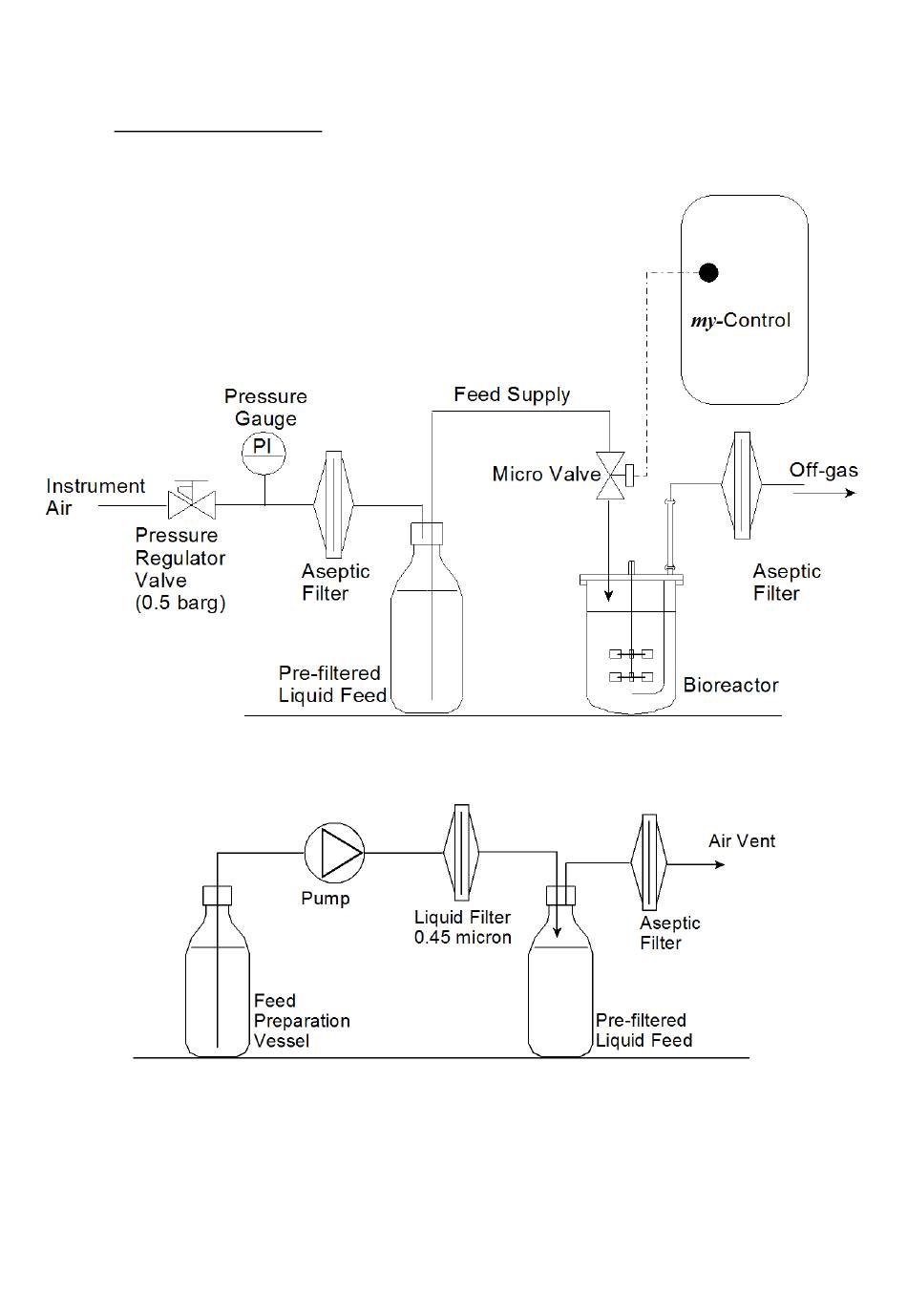

The image below shows the micro valve liquid addition setup. The valve operates optimally with a
differential pressure of 0.5 barg.
The micro valve is controlled by the my-Control.
The liquid feed is pre-filtered using 0.45µm as indicated in the image below.
