3.8

ANALOG AND DIGITAL I/O CONNECTIONS

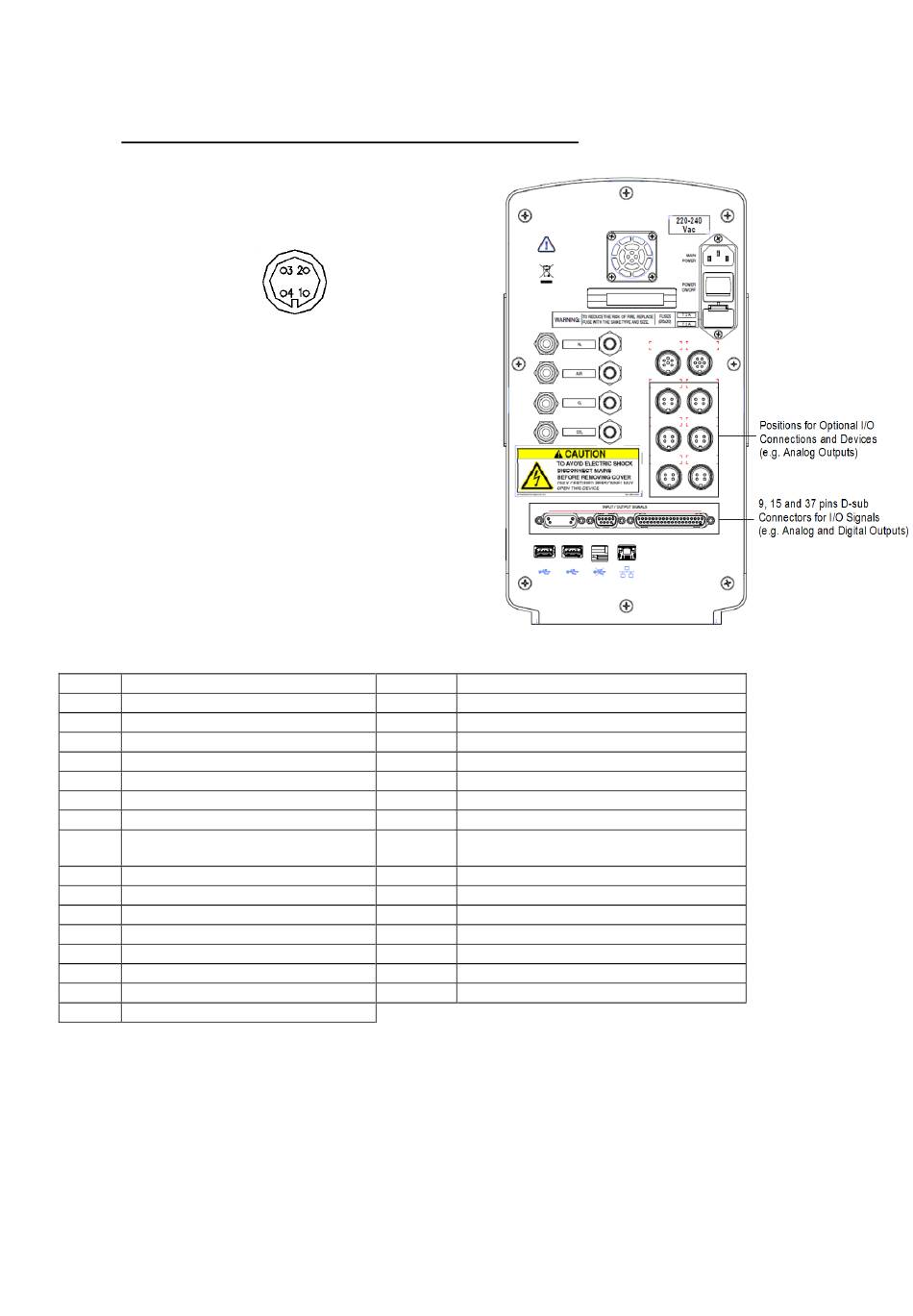

The analog and digital I/O connections are located at the rear of the my-Control:
Analog Inputs
The (max. 4) analog input connectors contain four pins:
• Pin 1 = Analog input
• Pin 2 = Ground
• Pin 3 = Spare
• Pin 4 = Spare
0 – 10 V
Input range:
Impedance: > 100 kΩ
Analog input for the my-Control including external cable
and license:
Z310214010* Analog Input my-Control
*The above mentioned part consists of one internal cable
and two external cables: one for V-signals and one for mA
signals (with a 500 Ohm resistor in its connector to
convert the mA signal to a V-signal)). Additional Analog
Inputs must be installed by a certified Service Engineer.
Analog and Digital Outputs (37 pins sub-connector):
Pin # Description
1 DIGITAL OUTPUT 6+
2 DIGITAL OUTPUT 6-
3 DIGITAL OUTPUT 7+
4 DIGITAL OUTPUT 7-
5 DIGITAL OUTPUT 4+
6 DIGITAL OUTPUT 4-
7 DIGITAL OUTPUT 5+
8 DIGITAL OUTPUT 5-
9 DIGITAL OUTPUT 1+
10 DIGITAL OUTPUT 1-
11 DIGITAL OUTPUT 2+
12 DIGITAL OUTPUT 2-
13 DIGITAL OUTPUT 3+
14 DIGITAL OUTPUT 3-
15 DIGITAL OUTPUT 8+
16 DIGITAL OUTPUT 8-
• Analog output 5 can be found at the 9 pins D-sub connector: pin 2 (+) and pin 6 (GND)!
• The System Alarm output (pin 23/24) indicates that the process cannot be supported anymore.
• The Deviation Alarm output (pin 25/26) indicates that a process value is out-of-limits.
• The ground (GND) pins are used in combination with the analog outputs.
Analog Outputs:
Digital Outputs:
Hardware Manual my-Control MiniBio
Pin #
17
18
19
20
21
22
23 / 24
25 / 26
27
28
30
32
34
35
36
0/4 – 20 mA (software selectable)
0/5 VDC, 100 mA each
Description
ANALOG OUTPUT 3
ANALOG OUTPUT 1
ANALOG OUTPUT 2
ANALOG OUTPUT 4
GND
GND
SYSTEM ALARM OUTPUT (NO / COM)
DEVIATION ALARM OUTPUT (NO /
COM)
24V for Digital I/O (max. 0.5A)
GND
GND
GND
GND
15Vext. (max. 0.1 A)
GND
