Industrial Electronic Devices

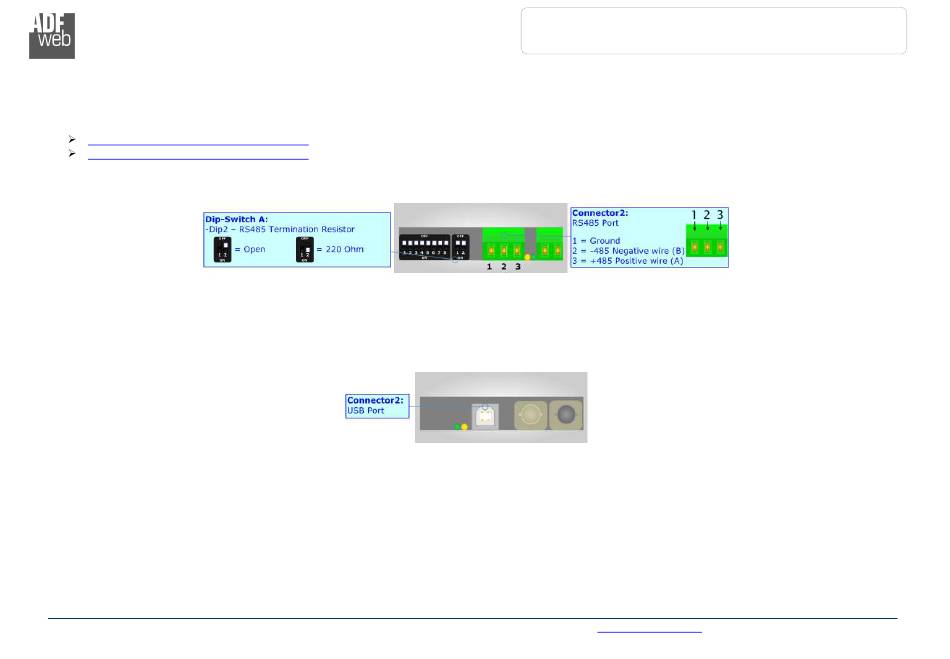

RS485:
The connection from the RS485 socket to the Personal Computer for updating the program must be made with a converter RS485 to USB or
RS485 to RS232. For more details see the following links:
www.adfweb.com?Product=HD67118
www.adfweb.com?Product=HD67119
For terminate the RS485 line with a 220Ω resistor it is necessary that the Dip2 of Dip-Switch A is at ON position.
USB:
The USB connector (Connector2) of HD67074-B2 is a Type-B Female. So the cable must be a Type-B Male.
ADFweb.com Srl – IT31010 – Mareno – Treviso
for the RS232 to RS485 converter;
for the RS485 to USB converter.
User Manual RS232/S485/USB / Optic Fiber
Document code: MN67072_ENG
Revision 1.001
INFO:
www.adfweb.com
Page 12 of 18
Phone +39.0438.30.91.31
