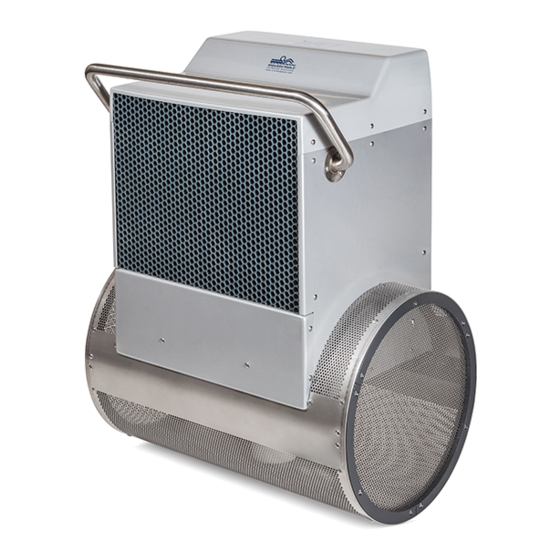

Endless Pools FASTLANE PRO Owner's Manual

Endless Pools FASTLANE PRO Owner's Manual

Hide thumbs Also See for FASTLANE PRO:

Advertisement

Quick Links

Download this manual
FASTLANE
PRO
®
By Endless Pools
®
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the FASTLANE PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Endless Pools FASTLANE PRO

Summary of Contents for Endless Pools FASTLANE PRO

  • Page 1 FASTLANE ® By Endless Pools ® OWNER’S MANUAL...
  • Page 2 Fastlane Pro Swim Unit Installation ®...

  • Page 3: Risk Of Electrical Shock

    Fastlane Pro Swim Unit Installation ® RISK OF ELECTRICAL SHOCK A GROUND FAULT CIRCUIT INTERRUPTER (GFCI) OR RESIDUAL CURRENT DEVICE (RCD) is required for this product. The Ground Fault Circuit Interrupter (GFCI) or Residual Current Device (RCD) is NOT provided with this product. One must be sourced locally and in- stalled into the panel box by a licensed electrician when making the electrical connections to the spa equipment.

  • Page 4: To Avoid Injury

    Fastlane Pro Swim Unit Installation ® TO REDUCE THE RISK OF DROWNING Prolonged immersion in high temperature water can cause hyperthermia. Hyperthermia occurs when the internal temperature of the body is several degrees higher than the normal 98.6°F (37°C). The symptoms of hyperthermia include dizziness, lethargy, drowsiness, and fainting. The effects of hyperthermia include: 1.
  • Page 5 The Fastlane Pro can be mounted one of two ways: The Wall Mount Fastlane Pro fastens to the wall of the pool using the bracket provided. Two 1 1/2" (38mm) PVC pipes which serve as conduits for the hydraulic hoses run under the pool deck to a remotely located, 5-horsepower, hydraulic Power Unit, as shown in Figure 1.1.
  • Page 6 12 feet (3,7m) between the wall on which the Fastlane Pro is installed and the opposing wall in line with the Swim Unit. The Fastlane Pro has more than 9 square feet (.83m2) of water intake to eliminate any entrapment hazards.

  • Page 7: Wall Mount Bracket

    Note: Please read instructions fully prior to installing the wall mount bracket. 4.A. Gunite Pool If the pool being constructed is gunite, please follow the instructions below. The Wall Mount Fastlane Pro Mounting Kit for Gunite pools includes the following: (refer to Fig 4.1) (1) PVC Wall Bracket (2) Bonding Clamp (2) 3/8"...
  • Page 8 Figures 4.2. and 4.5. The area below the bracket should be no more than 5 degrees less than the vertical down to at least 39" (99cm) below the waterline. The Fastlane Pro is 21"...
  • Page 9 24ft 6in (7,5m). This will allow the hydraulic hoses attached to the Fastlane Pro to terminate just inside the junction box. See section 5 for additional information. The threaded rods must be tied into the pools bonding grid. Secure a bonding clamp to each threaded rod.
  • Page 10 Fastlane Pro Swim Unit Installation ® Fig. 4.4 Prior to shooting gunite, it is critical that the opening of each thru-wall and the threaded rods that extend into the finished pool be covered. No gunite can be embedded in these areas. After verifying the bracket is positioned, bonding connections are secure, and thru-wall openings/threaded rods are covered, gunite can be shot (Fig 4.5).
  • Page 11 (1) Clear Silicone Position the PVC template where the Fastlane Pro will attach to the pool wall and align the bottom of the template with the expected water level in the pool (which will typically be located at the centerline of the skimmer) as shown in Figure 4.6.
  • Page 12 Fastlane Pro Swim Unit Installation ® Install the star thru-wall fittings with the holes for the cover at 12, 3, 6, and 9 (clock positions) as shown in Figure 4.7 Fig. 4.7 Thread the 3/8" (9,5mm) jam nut onto the threaded rod. Thread the hex coupling onto the threaded rod so that half of the hex coupling is threaded onto the rod and the other half that’s facing the pool is protruding off the threaded rod.
  • Page 13 In this case, the flex pipe between the wall mount bracket and the junction box must be 24ft 6in (7,5m). This will allow the hydraulic hose attached to the Fastlane Pro to terminate just inside the junction box. Refer to section 5 for additional information.
  • Page 14 No concrete can be embedded in these areas. Pour the concrete collar around the top flange of the pool en- casing the threaded rods and conduit in place. This encasement will help secure the Fastlane Pro (Fig 4.12). Fig. 4.12...
  • Page 15 Fastlane Pro Swim Unit Installation ® After the concrete has cured remove the sacrificial 3/8” (9,5mm) washers and bolts and install the pool liner. Before beginning the liner installation, be sure to note the orientation of the star thru-wall holes at the 12, 3, 6, and 9 (clock positions) as they will be hidden once the liner is installed.
  • Page 16 4.C. Gunite Pool with a Vinyl Liner If the pool being constructed is a gunite pool with a vinyl liner, please follow the instructions below. The Wall Mount Fastlane Pro Mounting Kit for steel/polymer/gunite pools with a vinyl liner includes the following: (1) PVC Wall Bracket (2) Bonding Clamp (2) 3/8”...
  • Page 17 Fastlane Pro Swim Unit Installation ® Thread the 3/8” (9,5mm) jam nut onto the threaded rod. Thread the hex coupling onto the threaded rod so that half of the hex coupling is threaded onto the rod and the other half that’s facing the pool is protruding off the threaded rod.
  • Page 18 Once encased in concrete, these rods will serve as a suitable hanger. The threaded rods must penetrate 1-1/4" to 1-1/2" (31,8mm x 38mm) into the finished pool and will be used to hang the Fastlane Pro (Fig 4.18). Fig. 4.18 Apply Teflon thread sealant to the threads of the 1/1/2"...
  • Page 19 24ft 6in (7,5m). This will allow the hydraulic hose attached to the Fastlane Pro to terminate just inside the junction box. Refer to section 5 for additional information. The threaded rods must be tied into the pools bonding grid. Secure a bonding clamp to each threaded rod.
  • Page 20 Fastlane Pro Swim Unit Installation ® After the liner is installed, add water to the pool to weigh the liner down pulling it tight. When the liner is tight, cut the holes for each thru-wall fitting and threaded rod hole using a sharp utility knife. Cut the holes as small as possible for the threaded rods (Fig 4.22).
  • Page 21 Remove the hardware from the PVC bracket. In this application the bracket will serve primarily as a tem- plate. Position the bracket on the pool wall where the Fastlane Pro will be placed. Align the etched mark on the bracket with the expected waterline, which is typically halfway up the skimmer opening. The bracket must be level on the pool wall.
  • Page 22 Fastlane Pro Swim Unit Installation ® Cut the center portion out of the bracket using the etched marks in the brackets as a guide. The two end portions will be used as washers on the backside of the pool wall (Fig 4.25). Fig.
  • Page 23 In this case, the flex pipe between the wall mount bracket and the junction box must be 24ft 6in (7,5m). This will allow the hydraulic hoses attached to the Fastlane Pro to terminate just inside the junction box. See section 5 for additional information.
  • Page 24 No concrete can be embedded in these areas. When all of the connections on the outside of the pool are complete, a concrete collar should be poured around the threaded rods and conduit. This encasement will help secure the Fastlane Pro (Fig 4.30) Fig. 4.30...
  • Page 25 It is at the junction box where a step up to 1/2" run hose occurs. The hydraulic hose from the Fastlane Pro Swim Unit to the junction box is 3/8" (9,5mm) and the run hose from the junction box to the Power Unit is 1/2".
  • Page 26 The packaging can be collapsed and used as a protective surface upon which to assemble the Fastlane Pro. The foam packing material can be used to wedge under the base to prevent it from tipping over. When assembling the Fastlane Pro, a low torque setting should be used on the drill to prevent the holes in the acrylic from stripping.
  • Page 27 Fastlane Pro Swim Unit Installation ® 6.4 Remove the throat from the upper housing. There are two screws on each side of the throat. Pull the throat off of the housing and set it aside. Pull the vertical water-conditioning grill up and out of the housing.
  • Page 28 ® 6.7 Carefully lay the Fastlane Pro onto its face. Position the hydraulic hoses up the back of the upper hous- ing. The two hat sections will be placed over the hydraulic hoses. Make sure that the mounting hole in the end of the hat section is facing up.
  • Page 29 Fastlane Pro Swim Unit Installation ® 6.9 Slide the horizontal water-conditioning grill back into its track inside the housing. The horizontal grill is the wider of the two grills (Fig 6.7). Fig. 6.7 6.10 Install the stainless steel grab bar to the upper housing using the provided stainless steel screws and lock nuts.
  • Page 30 Fastlane Pro Swim Unit Installation ® 6.11 Reattach the throat to the upper housing. Again, there will be 2 screws on either side of the throat (Fig 6.9). Fig. 6.9 6.12 Slide the vertical water-conditioning grill back down into the housing (Fig 6.10). Fig.
  • Page 31 Fig. 6.11 6.14 Once the Fastlane Pro is installed in the pool, place the housing lid onto the housing and use the pro- vided screws to attach. There will be three screws per side, for a total of six (Fig 6.12).
  • Page 32 Fig. 7.1 Using two people, carefully lower the Fastlane Pro into the pool. Align the holes at the top of the protective hat sections with the threaded mounting rods and rest the Fastlane Pro into place. The Fastlane Pro will hang from the mounting rods.
  • Page 33 DECK MOUNT FASTLANE PRO HOSE COVER TRAY INSTALLATION 8.1 Choose where the Fastlane Pro is to be placed in the pool. The water depth must be 39" (99cm). There must be a minimum of 24" (61cm) between the Fastlane Pro and any adjacent wall or pool obstruction.
  • Page 34 Fig. 9.1 9.2 Carefully lay the assembled Fastlane Pro down on its front face. There are six pre-drilled holes in the center of the top housing (between the protective hat channels). Align the top set of holes in the rear of the housing with appropriate number hole in the hanger bracket (if the freeboard is 6"...
  • Page 35 9.6 Place the Fastlane Pro lid onto the top of the Fastlane Pro and use the six 3/4" (19mm) stainless steel screws that were provided (3 on each side) (See Fig 6.12).
  • Page 36 Fastlane Pro Swim Unit Installation ® Section 10 INSTALLATION OF THE HYDRAULIC POWER UNIT 10.1 Placement Considerations: The Power Unit should be placed on a flat, level surface. If placing outside, it is recommended the Outdoor Power Unit Weather Guard be purchased (see Fig 10.1), but should not be subject to driving rain.
  • Page 37 Fastlane Pro Swim Unit Installation ® Section 11A ELECTRICAL REQUIREMENTS FOR THE UNITED STATES (60HZ) (and countries with similar electrical requirements) A Ground Fault Circuit Interrupter (GFCI) is required for this product. A GFCI is a device that shuts off an electrical circuit when it detects that electricity is flowing along an unintended path.
  • Page 38 (and countries with similar electrical requirements) The unique design of the Fastlane Pro facilitates sales to UK and international customers. The Fastlane Pro is shipped in kit form for easy assembly and installation into any new conventional pool following the detailed instructions provided.

  • Page 39: Equipment Start Up

    (19L) bucket used to fill the power unit. 12.4 Turn on the Fastlane Pro, making sure to hold the hose firmly in your hand over the bucket. The re- turning hydraulic fluid will flow into the bucket. The system will automatically shut off when the float level switch inside the fluid reservoir is tripped.
  • Page 40 All Deckmount Fastlane Pro shipments include a copper bonding lug that's pre-attached to the hose cover tray (deck plate). Once the Fastlane Pro is installed into the pool, the stainless steel wire that exits the top of the unit must be attached to the bonding lug on the hose cover tray. A #8 solid copper wire is then attached to the bonding lug which must tie into the pool's bonding grid.
  • Page 41 Fastlane Pro Swim Unit Installation ® Section 13 WALL MOUNTED FASTLANE PRO BONDING Fig. 13.1...
  • Page 42 Fastlane Pro Swim Unit Installation ® Section 13 DECK MOUNTED FASTLANE PRO BONDING Fig. 13.2...
  • Page 43 Fastlane Pro Swim Unit Installation ® Testing Fastlane Bonding Multi Meter Multi Meter Hydraulic Power Unit Bonding Test Wire Bonding Test Wire Bonding Connection Bonding Connection Metal Reinforcement / Pool Bonding Grid Pool Equipment Attach stainless steel "Bonding Test Wire" to the bonding lug located on the hydraulic power unit. 2) Run the test wire across the pool deck to the Fastlane bonding connection.

  • Page 44: General Information

    The hydraulic power unit controller is equipped with a built-in timer, shutting the unit off after 30 minutes. The Fastlane Pro will “remember” the speed of the swim current at which it was turned off and will default to that same speed when the unit is turned back on.
  • Page 45 Endless Pool winterizing procedures. • Do not use the Fastlane Pro if there is any evidence of damage or tampering. Call the Endless Pools Cus- tomer Service Department at 800 910 2714 immediately. The Submerged Suction Outlet Model #29-19 (part #124011) must be secured as described in this manual before the Fastlane Pro is used again.
  • Page 46 Prepaid returns of all Fastlane Pro products are accepted less a 10% restocking fee, up to 30 days from the date of purchase if undamaged and in its original shipping containers. Accessories, options and equipment that have been used are non-refundable All product returns require proper pre-authorization from our Cus- tomer Service Department and must be shipped to the address shown below.
  • Page 47 Fastlane Pro Swim Unit Installation ®...
  • Page 48 Endless Pools • 1601 Dutton Mill Rd • Aston, PA 19014-2931 D30001 1119 800-910-2714 US • 610-497-8693 fax • www.myendlesspool.com © Copyright 2019 Wellness Marketing Corporation...
