JUNCTION BOX AND 1/2" RUN HOSES (OPTIONAL)
Section 5
The wall mount bracket must be attached on the pool wall as explained in the installation instructions in
W
Section 4. Attached to this bracket are two (2) lengths of 1-1/2" (38mm) PVC flex pipe that run back under
the deck and carry two (2) hydraulic hoses.
If the hydraulic hose runs back to the Power Unit are less than 25' (7,6m), it is not necessary to step up to
1/2" run hose to reduce pressure loss. Instead, the 3/8" (9,5mm) hydraulic hose can run directly to the Pow-
er Unit in the protective conduit.
If the hydraulic hose runs are greater than 25' (7,6m), in order to reduce pressure loss and potential reduc-
tion in speed, a junction box must be used. It is at the junction box where a step up to 1/2" run hose occurs.
The hydraulic hose from the Fastlane Pro Swim Unit to the junction box is 3/8" (9,5mm) and the run hose
from the junction box to the Power Unit is 1/2". It's important the junction box is installed in suitable loca-
tion. Access to the junction box MUST be maintained for future maintenance.
Junction Box Kit (optional) includes:
(1) Junction Box
(4) 1-1/2" (38mm) FSlip x 1-1/2" (38mm) MPT Adapters
(4) 1-1/2" (38mm) Conduit Locknuts
(1) Roll of Anti-Corrosion Tape
• The 1-1/2" (38mm) PVC flex pipe will need to be cut to 24' 6" (7,5mm) from the wall mount bracket to
the junction box.
• Glue the 1-1/2" (38mm) FSlip x MPT Adapter fittings on the end of the PVC flex pipe that will
connect to the junction box. Secure the fittings to the junction box with the provided lock nuts.
• To get from the junction box to the Power Unit, run 1-1/2" (38mm) PVC flex pipe.
• Unroll the two (2) lengths of PVC flex pipe from the junction box to the Power Unit. The PVC flex pipe
should exit the ground next to the Power Unit.
• Measure the length of PVC flex pipe. Your 1/2" (12,7mm) run hoses will need to be AT LEAST 4 feet
longer then the length of the PVC flex pipe. Order your 1/2" (12,7mm) run hoses at this time by calling
our Customer Service Department at 800-910-2714.
• Adapters to connect the 1/2" (12,7mm) run hoses to the 3/8" (9,5mm) hoses attached to the Fastlane Pro
have been provided. They can be found in the 1/2" (12,7mm) run hose box and will be attached at a later
step (see section 7).
• If desired, the junction box can be anchored by attaching the feet included with the kit.

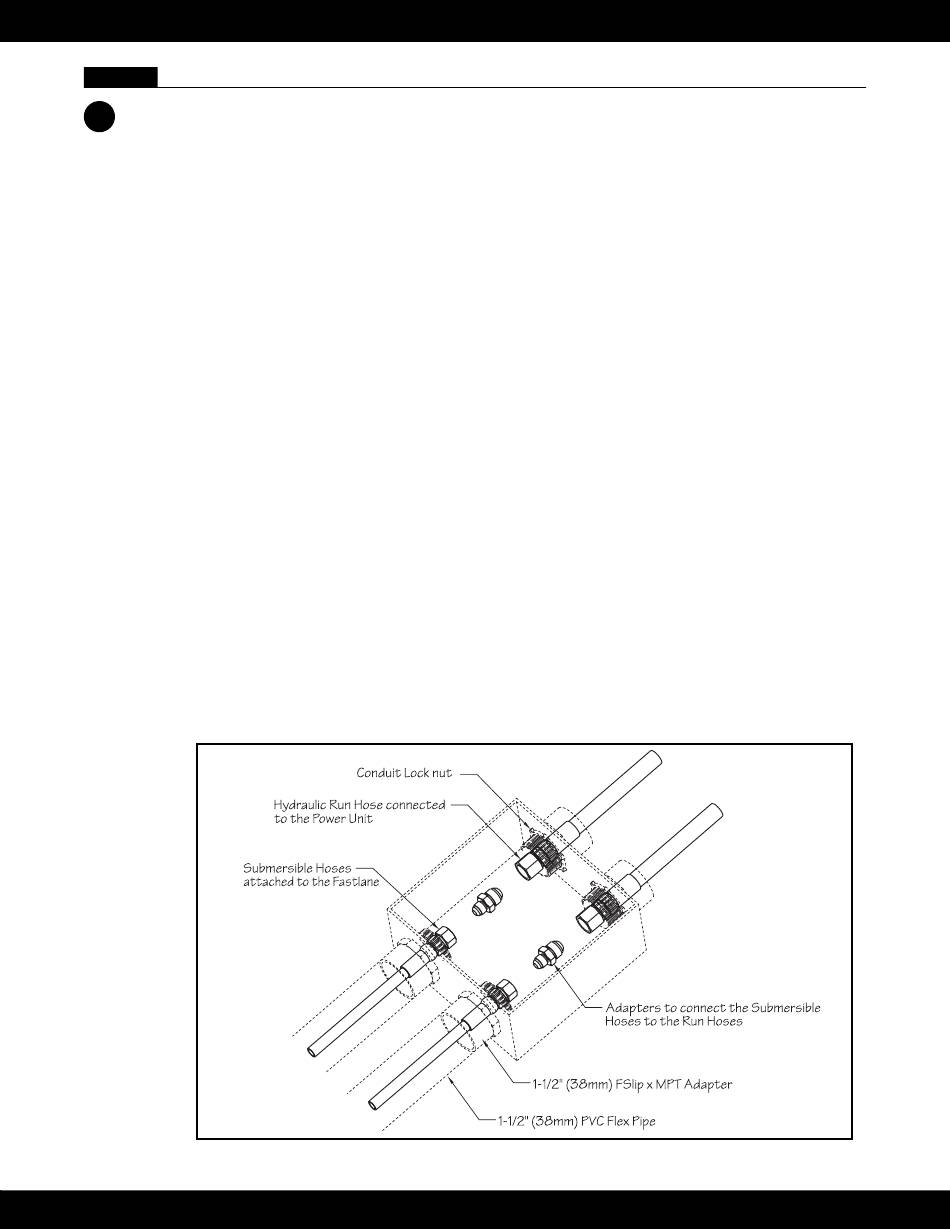

Fig. 5
