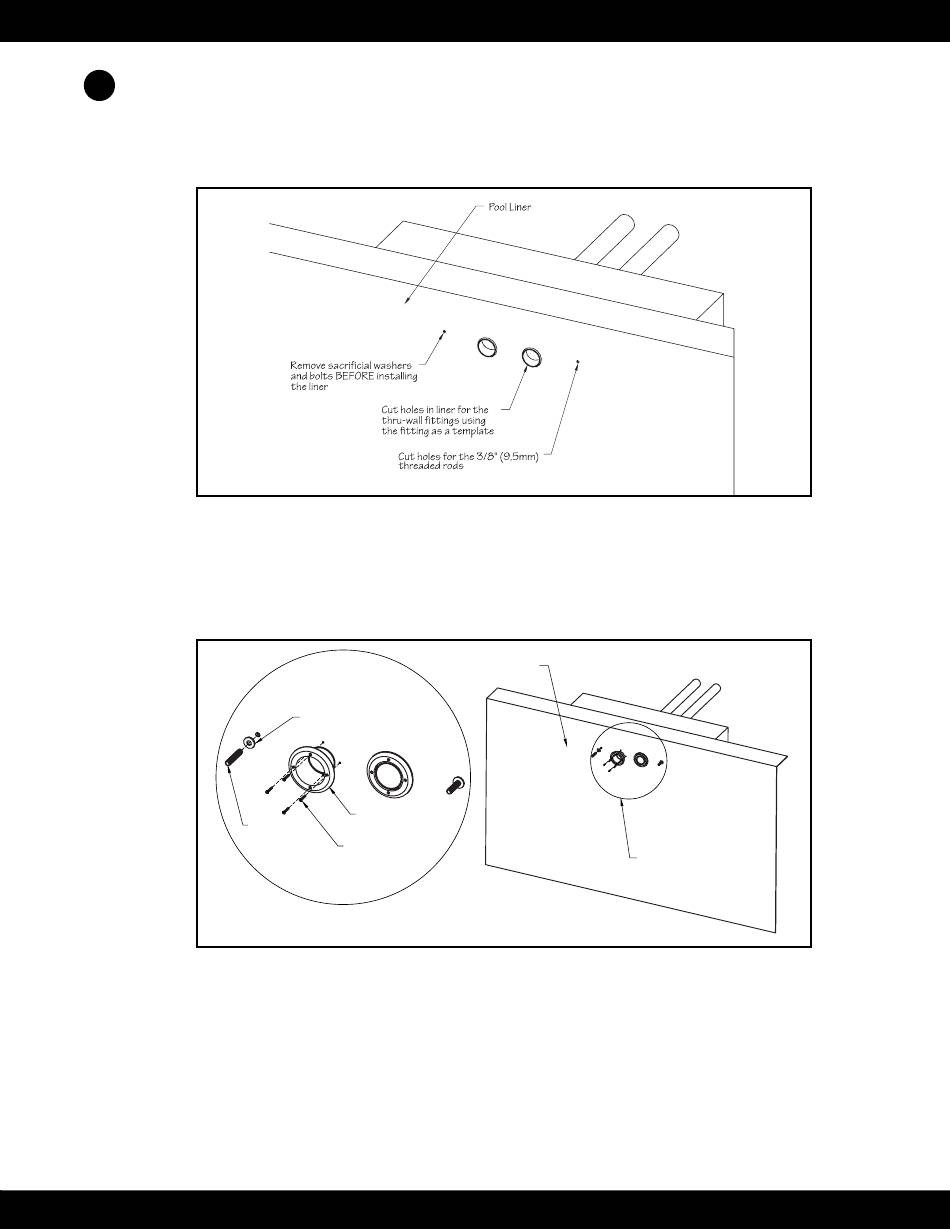

After the concrete has cured remove the sacrificial 3/8" (9,5mm) washers and bolts and install the pool

liner. Before beginning the liner installation, be sure to note the orientation of the star thru-wall holes at the

12, 3, 6, and 9 (clock positions) as they will be hidden once the liner is installed. After the liner is installed,

add water to the pool to weigh the liner down pulling it tight. When the liner is tight, cut the holes for each

thru-wall fitting and threaded rod hole using a sharp utility knife. Cut the holes as small as possible for the

threaded rods (Fig 4.13).

Fig. 4.13

Using a scratch awl, poke the holes out in each star thru-wall fitting (holes located in 12, 3, 6, 9 clock

positions) and install the thru-wall faceplates using the screws provided. Tighten the screws with a hand

screwdriver to avoid cracking the faceplates. Apply RTV or a similar caulk to the threaded stud and rubber

washer and thread each stud into the 3/8" (9,5mm) holes in the liner/pool wall making sure the rubber

washer is flush against pool liner. (Fig 4.14).

Threaded

Stud

Fig. 4.14

Rubber Washer

Thru-Wall

Faceplate

Screw

DETAIL A

Pool Liner

Threaded Stud &

Thru-Wall Faceplates

(See Detail A)

Fastlane

Pro Swim Unit Installation
