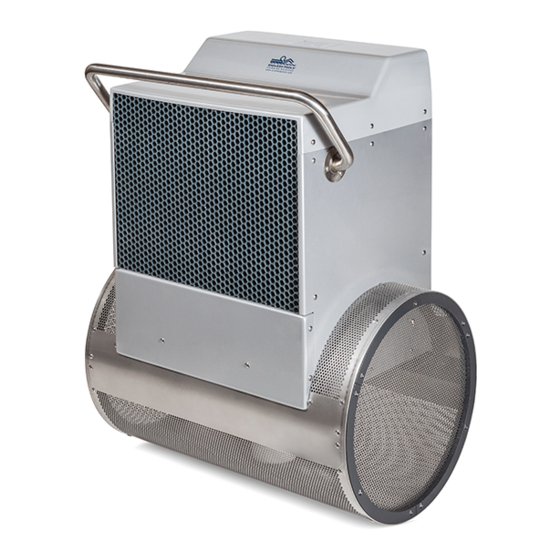

FASTLANE
PRO
®
By Endless Pools
®
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FASTLANE PRO and is the answer not in the manual?

Questions and answers

Related Manuals for Endless Pools FASTLANE PRO

Summary of Contents for Endless Pools FASTLANE PRO

  • Page 1 FASTLANE ® By Endless Pools ® OWNER’S MANUAL...
  • Page 2 WARNING: Before each use, examine the unit for damage or signs of wear. Do not use the product if found in this condition. Contact Endless Pools Customer Service. WARNING: Never operate the unit without reading and completely understanding the results of any operational change you request from the controller.
  • Page 3 Fastlane Pro Swim Unit Installation ® Other Important Safety Instructions WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. AVERTISSEMENT: Pour réduire le risque de blessure, ne permettez pas aux enfants d’utiliser ce produit à moins qu’ils ne soient surveillés de près en tout temps.
  • Page 4 Fastlane Pro Swim Unit Installation ® DANGER: RISK OF ACCIDENTAL DROWNING: Extreme caution must be exercised to prevent unauthorized access by children. To avoid accidents, ensure that children cannot use this spa unless they are supervised at all times. DANGER: RISQUE DE NOYADE ACCIDENTELLE: Une extrême prudence doit être exercée pour empêcher tout accès non autorisé...
  • Page 5 Fastlane Pro Swim Unit Installation ® WARNING: TO AVOID INJURY, EXERCISE CARE WHEN ENTERING OR EXITING THE SPA OR HOT TUB. AVERTISSEMENT: POUR ÉVITER DES BLESSURES, USER DE PRUDENCE EN ENTRANT DANS UNE CUVE DE RELAXATION ET EN SORTANT. WARNING: DO NOT USE DRUGS OR ALCOHOL BEFORE OR DURING THE USE OF A SPA OR HOT TUB TO AVOID UNCONSCIOUSNESS AND POSSIBLE DROWNING.
  • Page 6 WARNING: Loose cover/grates shall be reattached before bathers are allowed to use the pool. Suction Outlet Fitting Assembly (SOFA) User Maintenance Instructions Field Modifications: Any field modification made to the SOFA not authorized by Endless Pools installation instructions shall void the SOFA certification. Configuration Modifications: No modification shall be made to a SOFA structure or flow path unless the new configuration has been certified as a new SOFA.

  • Page 7: Table Of Contents

    Fiberglass Pool ........23 Using Your Fastlane Pro ......43 Junction Box And 1/2”...

  • Page 8: General Overview Of Fastlane Pro

    Hydraulic Power Unit, as shown in Figure 1.1. Fig. 1.1 The Deck Mount Fastlane Pro fastens to the pool deck using a Deck Plate and Hanging Bracket. The two hydraulic lines then run back to the remotely located Hydraulic Power Unit. The hydraulic hoses can be run through a conduit or run aboveground, as shown in Figure 1.2.

  • Page 9: Choosing A Location For Your Fastlane Pro

    12 feet (3,7m) between the wall on which the Fastlane Pro is installed and the opposing wall in line with the Swim Unit. The Fastlane Pro has more than 9 square feet (.83m2) of water intake to eliminate any entrapment hazards.

  • Page 10: Wall Mount Bracket Installation

    Section 4 WALL MOUNT BRACKET INSTALLATION The following sections provide detailed instructions for installing the Wall Mount Fastlane Pro Mounting bracket. The instructions vary depending on the type of pool (gunite, steel panel/vinyl liner, gunite/vinyl liner, fiberglass) the unit is being installed in. Refer to the appropriate section.
  • Page 11 Figures 4.2. and 4.5. The area below the bracket should be no more than 5 degrees less than the vertical down to at least 39" (99cm) below the waterline. The Fastlane Pro is 21"...
  • Page 12 Fastlane Pro Swim Unit Installation ® The location of the Hydraulic Power Unit should be determined at this point in the installation. Unroll lengths of 1-1/2" (38mm) flexible PVC pipe from the back of the wall mount bracket to the Power Unit. Any bends in the flexible pipe MUST be gradual sweeps and not sharp to allow the hydraulic hoses to easily be fed through each conduit.
  • Page 13 Fastlane Pro Swim Unit Installation ® The threaded rods MUST be tied into the pools bonding grid. Secure a bonding clamp to each threaded rod. Attach a #8 solid copper wire to each bonding clamp. These wires MUST be attached to a bonding connection that’s incorporated into the pool's bonding grid.

  • Page 14: Steel/Polymer Pool With Vinyl Liner

    (1) Clear Silicone Position the PVC template where the Fastlane Pro will attach to the pool wall and align the bottom of the template with the expected water level in the pool (which will typically be located at the centerline of the skimmer) as shown in Figure 4.6.
  • Page 15 Fastlane Pro Swim Unit Installation ® Install the star thru-wall fittings with the holes for the cover at 12, 3, 6, and 9 (clock positions) as shown in Figure 4.7 Fig. 4.7 Thread the 3/8" (9,5mm) jam nut onto the threaded rod. Thread the hex coupling onto the threaded rod so that half of the hex coupling is threaded onto the rod and the other half that’s facing the pool is protruding off the threaded rod.
  • Page 16 Fastlane Pro Swim Unit Installation ® On the inside of the pool, thread the sacrificial 3/8" (9,5mm) steel (with rubber washer) and bolt into the hex coupling through the hole that was previously drilled in the steel wall. Tighten the bolt to secure the assembly (Fig.
  • Page 17 Prior to pouring concrete, it is critical that the opening of each thru-wall and the sacrificial bolt be covered. No concrete can be embedded in these areas. Pour the concrete collar around the top flange of the pool encasing the threaded rods and conduit in place. This encasement will help secure the Fastlane Pro (Fig. 4.12).
  • Page 18 Fastlane Pro Swim Unit Installation ® After the concrete has cured remove the sacrificial 3/8” (9,5mm) washers and bolts and install the pool liner. Before beginning the liner installation, be sure to note the orientation of the star thru-wall holes at the 12, 3, 6, and 9 (clock positions) as they will be hidden once the liner is installed.

  • Page 19: Gunite Pool With Vinyl Liner

    Fastlane Pro Swim Unit Installation ® 4.C. GUNITE POOL WITH VINYL LINER If the pool being constructed is gunite with a vinyl liner, please follow the instructions below. The Mounting Kit for Steel/Polymer pools with vinyl liner includes: (1) PVC Wall Bracket (2) Bonding Clamp (2) 3/8”...
  • Page 20 Fastlane Pro Swim Unit Installation ® Thread the 3/8” (9,5mm) jam nut onto the threaded rod. Thread the hex coupling onto the threaded rod so that half of the hex coupling is threaded onto the rod and the other half that’s facing the pool is protruding off the threaded rod.
  • Page 21 Once encased in concrete, these rods will serve as a suitable hanger. The threaded rods must penetrate 1-1/4" to 1-1/2" (31,8mm x 38mm) into the finished pool and will be used to hang the Fastlane Pro (Fig 4.18). Fig. 4.18 The location of the Hydraulic Power Unit should be determined at this point in the installation.
  • Page 22 24ft 6in (7,5m). This will allow the hydraulic hose attached to the Fastlane Pro to terminate just inside the junction box. Refer to section 5 for additional information. The threaded rods MUST be tied into the pools bonding grid. Secure a bonding clamp to each threaded rod.
  • Page 23 Fastlane Pro Swim Unit Installation ® After the liner is installed, add water to the pool to weigh the liner down pulling it tight. When the liner is tight, cut the holes for each thru-wall fitting and threaded rod hole using a sharp utility knife. Cut the holes as small as possible for the threaded rods (Fig.

  • Page 24: Fiberglass Pool

    Remove the hardware from the PVC bracket. In this application the bracket will serve primarily as a tem- plate. Position the bracket on the pool wall where the Fastlane Pro will be placed. Align the etched mark on the bracket with the expected waterline, which is typically halfway up the skimmer opening. The bracket must be level on the pool wall.
  • Page 25 Fastlane Pro Swim Unit Installation ® Cut the center portion out of the bracket using the etched marks in the brackets as a guide. The two end portions will be used as washers on the backside of the pool wall (Fig. 4.25). Fig.
  • Page 26 Fastlane Pro Swim Unit Installation ® The backside of the thru-wall holes may need to be sanded flat so that a proper seal can be made. Place one of the rubber gaskets onto each thru-wall fitting. The second rubber gasket will not be used in this applica- tion.
  • Page 27 No concrete can be embedded in these areas. When all of the connections on the outside of the pool are complete, a concrete collar should be poured around the threaded rods and conduit. This encasement will help secure the Fastlane Pro (Fig. 4.30) Fig. 4.30...

  • Page 28: Junction Box And 1/2" Run Hoses

    It is at the junction box where these hose connections occur. The hydraulic sub hoses from the Fastlane Pro to the junction box are 3/8" (9,5mm) and the run hoses from the junction box to the Power Unit are 1/2" (13mm). The junction box MUST be above the pool's water level to avoid drainage of overfull pool water through the PVC conduit.

  • Page 29: Assembly Of The Fastlane Pro Swim Unit

    THIS STEP IS CRITICAL. If the Fastlane Pro is being installed into a pool using a salt-chlorine generator, a sacrificial zinc anode MUST be installed to combat the corrosive nature of the salt. Secure anode to one of the grab bar screws on the right side of the unit.
  • Page 30 6.4 Reinstall the vertical water-conditioning grill (Fig. 6.3). Vertical Grill Fig. 6.3 6.5 The top lid will be installed AFTER the Fastlane Pro is mounted to the pool wall/pool deck using the provided 3/4" (19mm) screws (Fig. 6.4). Top Lid 3/4"...

  • Page 31: Wall Mount Fastlane Pro Installation

    Pro will be attached directly to the Hydraulic Power Unit. 7.3 The next step is bonding the Fastlane Pro. On the left side of the swim unit, attach the bonding wire from the grab bar to the threaded rod/stud. On the right side of the unit, attach the bonding wire, pre-attached to the swim unit, to the threaded rod/stud.

  • Page 32: Deck Mount Fastlane Pro Deck Plate Installation

    DECK MOUNT FASTLANE PRO DECK PLATE INSTALLATION 8.1 Choose where the Fastlane Pro is to be placed in the pool. The water depth must be 39" (99cm). There MUST be a minimum of 18" (46cm) between the Fastlane Pro and any adjacent wall or pool obstruction.

  • Page 33: Deck Mount Fastlane Pro Installation

    Fig. 9.1 9.2 Carefully lay the Fastlane Pro down on its front face. There are six pre-drilled holes in the center of the housing assembly between the hat sections. Align the top set of holes with the appropriate number hole in the hanger bracket (if the freeboard is 5"...
  • Page 34 Pro Swim Unit Installation ® 9.3 With a minimum of two people, carefully lower the Fastlane Pro into the pool. Align the holes in the hanger bracket with the holes in the deck plate bottom. Use the provided 1/2" (13mm) screws to attach the Fastlane Pro to the pool wall (Fig.
  • Page 35 Fastlane Pro Swim Unit Installation ® 9.5 Attach a length of #8 solid copper wire (provided locally) to the bonding lug. This wire MUST be incorporated into the pool's bonding grid. Route the hydraulic hoses into the deck plate bottom and out the rear.

  • Page 36: Installation Of The Hydraulic Power Unit

    Fastlane Pro Swim Unit Installation ® Section 10 INSTALLATION OF THE HYDRAULIC POWER UNIT 10.1 The Hydraulic Power Unit should be placed on a flat, level surface. If placing the unit outside, it is recommended that the optional weather guard be purchased (Fig. 10.1), but should not be subject to driving rain.

  • Page 37: Electrical Requirements For The United States

    Fastlane Pro Swim Unit Installation ® ELECTRICAL REQUIREMENTS FOR THE UNITED STATES (60HZ) Section 1 1A (and countries with similar electrical requirements) IMPORTANT NOTE: The following instructions are intended for Single Phase equipment. If Three Phase equipment was ordered, refer to the Three Phase Equipment Supplemental Guide at this time. A Ground Fault Circuit Interrupter (GFCI) is required for this product.

  • Page 38: Electrical Requirements For The Uk

    Fastlane Pro Swim Unit Installation ® ELECTRICAL REQUIREMENTS FOR THE UK (50HZ) Section 1 1B (and countries with similar electrical requirements) IMPORTANT NOTE: The following instructions are intended for Single Phase equipment. If Three Phase equipment was ordered, refer to the Three Phase Equipment Supplemental Guide at this time. A Residual Current Device (RCD) is required for this product.

  • Page 39: Equipment Startup

    12.6 Turn on the Fastlane Pro, making sure to hold the hose firmly in your hand over the bucket. The returning hydraulic fluid will flow into the bucket. The system will automatically shut off when the float level switch inside the fluid reservoir is tripped.

  • Page 40: Bonding The Fastlane Pro

    All Deck Mount Fastlane Pro shipments include bonding hardware to allow the unit to be incorporated into the pool's bonding grid. Once the Fastlane Pro is installed in the pool, the (2) #8 solid insulated copper wires, pre-attached to the Fastlane Pro, and bonding lug MUST be attached to the deck plate bottom with the hardware provided.

  • Page 41: Wall Mount Fastlane Pro Bonding

    Section 13 WALL MOUNTED FASTLANE PRO BONDING Both #8 solid insulated copper wires, pre-a ached to the Fastlane Pro, are a ached to the threaded mounting rods or studs on the inside of the pool. Bonding clamps that are a ached to threaded mounting rods are tied to the pool’...

  • Page 42: Deck Mount Fastlane Pro Bonding

    Section 13 DECK MOUNTED FASTLANE PRO BONDING Both #8 solid insulated copper wires, pre-a ached to the Fastlane Pro, are a ached to the machine screw that is secured to the deck plate. The bonding lug, a ached to the...
  • Page 43 1) A ach stainless steel "Bonding Test Wire" to the bonding lug located on the hydraulic power unit. 2) Run the test wire across the pool deck to the Fastlane Pro bonding connections. For Wall Mount units, the connections will be at the threaded mounting rods under the top lid (as shown). For Deck Mount units the connections will be under the deck plate cover.

  • Page 44: Using Your Fastlane Pro

    The Hydraulic Power Unit Controller is equipped with a built-in timer, shutting the unit off after 30 minutes. The Fastlane Pro will “remember” the speed of the swim current at which it was turned off and will default to that same speed when the unit is turned back on.

  • Page 45: Scheduled Maintenance

    17.2 Grill Cleaning. Should you perceive a reduction in speed of your Fastlane Pro, it may be caused by a reduction in water flow due to a blockage of the inlet assembly of the cylindrical base. Because the un-...

  • Page 46: Suction Outlet Fitting Service Instructions

    For Deck Mounted units, these wires are attached to the deck plate bottom. 3. Disconnect the hydraulic hoses outside the pool and then remove the Fastlane Pro from the pool. 4. Remove the hat sections from the back of the housing assembly.
  • Page 47 Fastlane Pro Swim Unit Installation ® Endless Pools • 1601 Dutton Mill Rd • Aston, PA 19014-2931 D30001 0323 800-910-2714 US • www.myendlesspool.com © 2023 Wellness Marketing Corporation...
