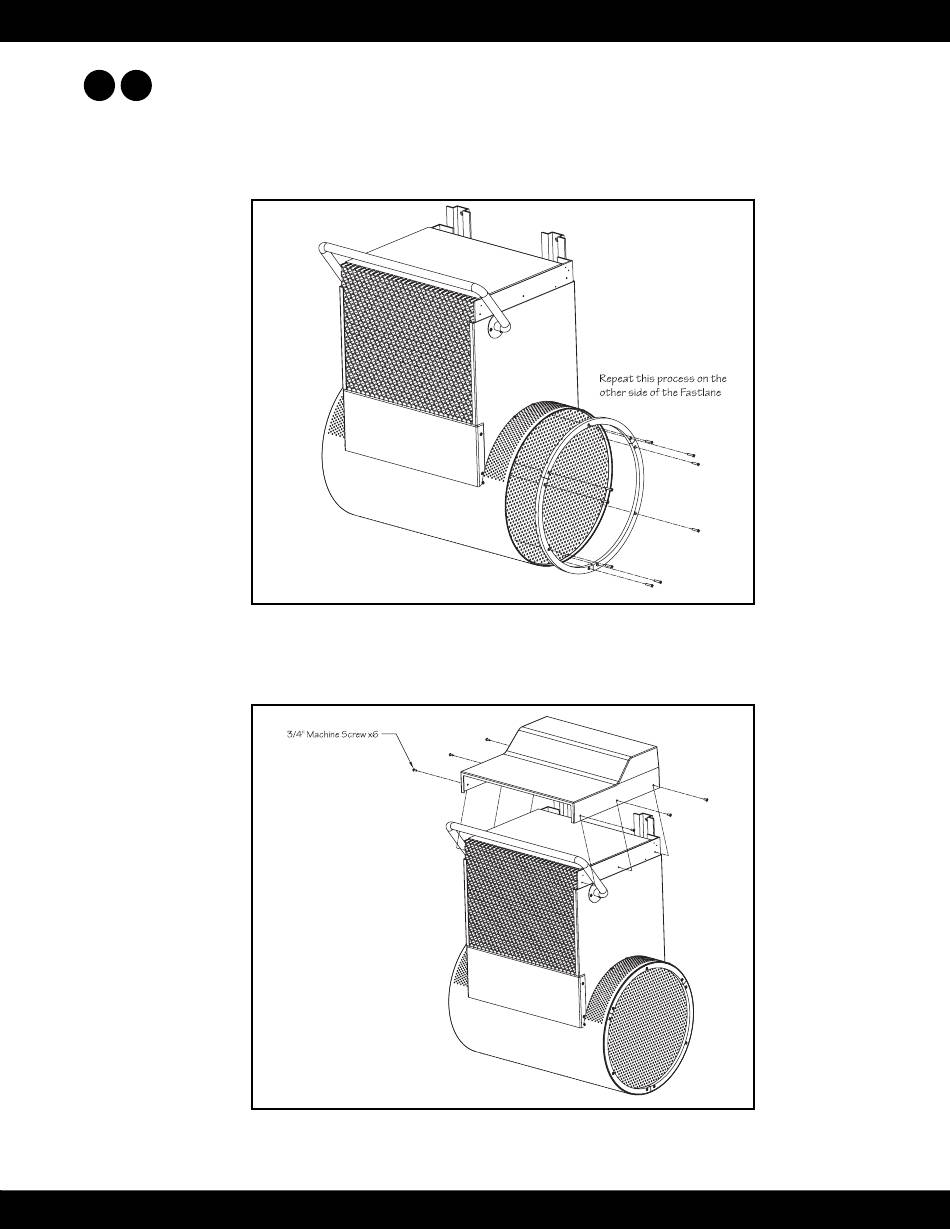

6.13 Re-install the circular end caps. Make sure that the "smooth" surface of the end caps are facing out.
D
W
If the stainless steel wire from the base to the end cap was removed, then it must be reattached at ths
time. Align the end caps to the internal PVC supports so that the holes in the internal supports are
aligned with holes in the end caps. Position the arced cover strips over the end caps, making sure to
align the hole in the arced cover strips with the holes in the stainless end caps and the internal PVC
supports. Install the nine screws (3 per cover strip) that were removed in step 6.1. Repeat for the re-
maining end cap (Fig 6.11).
Fig. 6.11
6.14 Once the Fastlane Pro is installed in the pool, place the housing lid onto the housing and use the pro-
vided screws to attach. There will be three screws per side, for a total of six (Fig 6.12).
Fig. 6.12
Fastlane
Pro Swim Unit Installation
®
30
