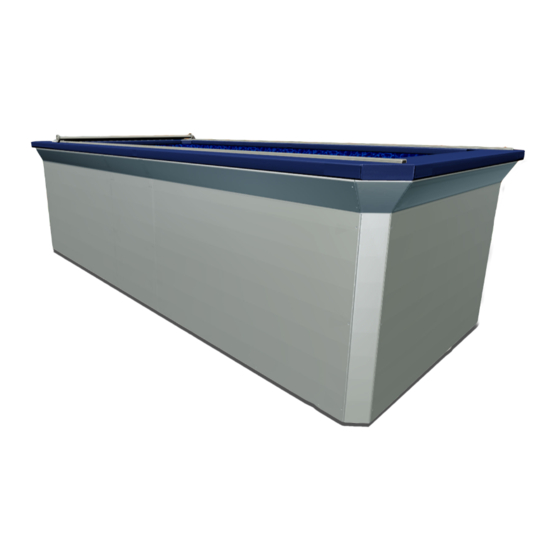

Endless Pools Streamline Installation, Operations And User's Manual

Hide thumbs Also See for Streamline:
Table of Contents

Advertisement

Quick Links

I N S T A L L A T I O N , O P E R A T I O N S
A N D U S E R ' S M A N U A L
Endless Pools
Streamline
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Streamline and is the answer not in the manual?

Questions and answers

Related Manuals for Endless Pools Streamline

Summary of Contents for Endless Pools Streamline

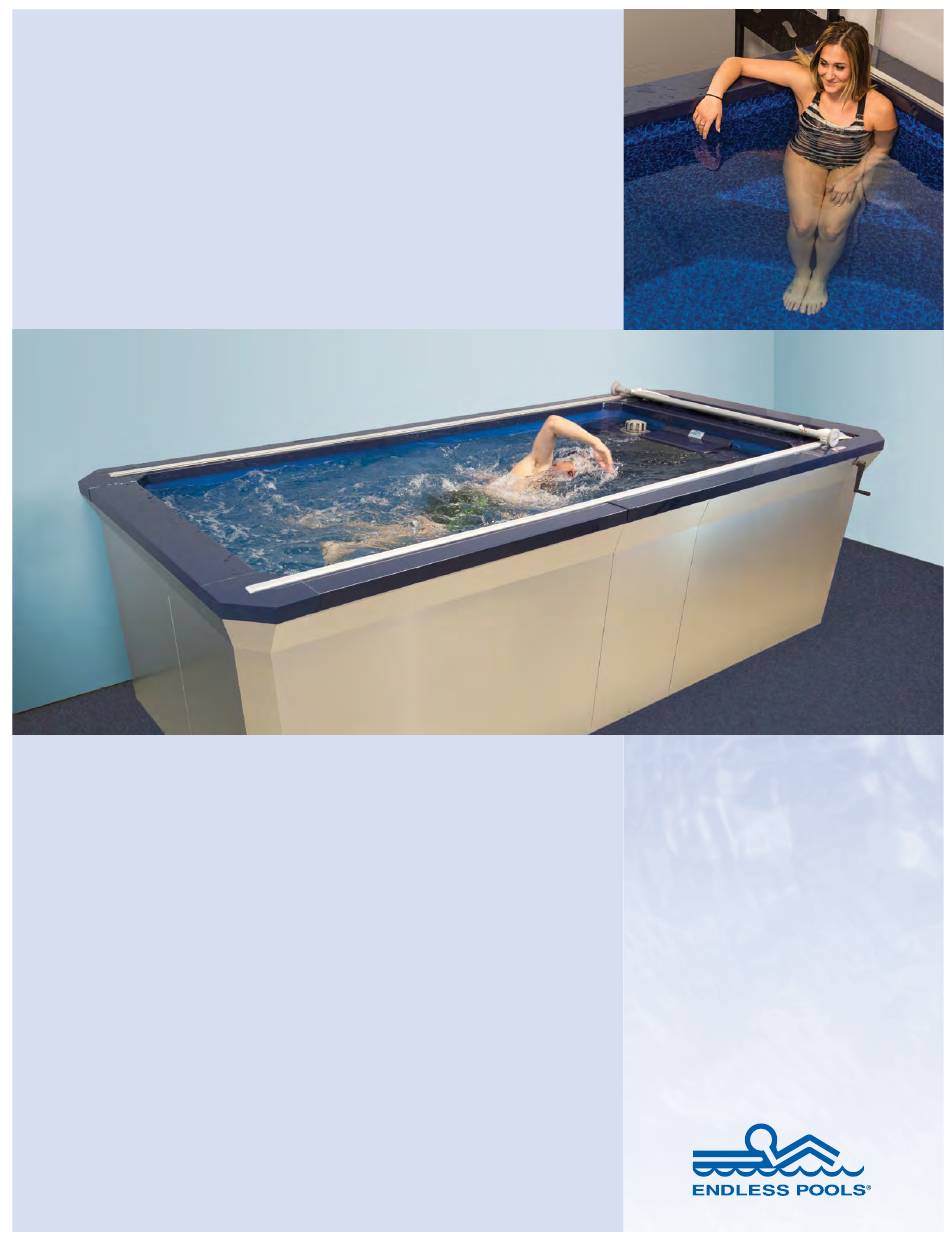

  • Page 1 I N S T A L L A T I O N , O P E R A T I O N S A N D U S E R ’ S M A N U A L Endless Pools Streamline ®...

  • Page 2: Warnings And Safety Information

    WARNING: Before each use, examine the unit for damage or signs of wear. Do not use the product if found in this condition. Contact Endless Pools Customer Service. WARNING: NEVER operate the unit without reading and completely understanding the results of any operational change you request from the controller.
  • Page 3 Other Important Safety Instructions WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times. AVERTISSEMENT: Pour réduire le risque de blessure, ne permettez pas aux enfants d’utiliser ce produit à moins qu’ils ne soient surveillés de près en tout temps.
  • Page 4 DANGER: RISK OF ACCIDENTAL DROWNING: Extreme caution must be exercised to pre- vent unauthorized access by children. To avoid accidents, ensure that children cannot use this spa unless they are supervised at all times. DANGER: RISQUE DE NOYADE ACCIDENTELLE: Une extrême prudence doit être exer- cée pour empêcher tout accès non autorisé...
  • Page 5 WARNING: TO AVOID INJURY, EXERCISE CARE WHEN ENTERING OR EXITING THE SPA OR HOT TUB. AVERTISSEMENT: POUR ÉVITER DES BLESSURES, USER DE PRUDENCE EN ENTRANT DANS UNE CUVE DE RELAXATION ET EN SORTANT. WARNING: DO NOT USE DRUGS OR ALCOHOL BEFORE OR DURING THE USE OF A SPA OR HOT TUB TO AVOID UNCONSCIOUSNESS AND POSSIBLE DROWNING.
  • Page 6 WARNING: Loose cover/grates shall be reattached before bathers are allowed to use the unit. Suction Outlet Fitting User Maintenance Instructions Field Modifications: Any field modification made to the suction outlet fitting not authorized by Endless Pools installation instructions shall void the suction outlet fitting assembly certification. Configuration Modifications: No modification shall be made to a suction outlet fitting structure or flow path unless the new configuration has been certified as a new suction outlet fitting assembly.

  • Page 7: Table Of Contents

    Installation Instruction Booklet Information The entire Endless Pool system is ETL listed, Ref. #2001779 and conforms to UL Standard #1563. Individually, all electrical components of the Endless Pool are UL and/or CSA approved. As defined by the International Residential Code (IRC), the Endless Pool is considered an above-ground or an in-ground pool depending on the installation.

  • Page 8: Pool Arrival And Inspection

    In installations where The Streamline Pool arrives in a kit that includes the pool this is not possible, the installation of a secondary containment panels, sidewall reinforcing channels, and pool components.

  • Page 9: Panel Assembly

    Panel Assembly When assembling the panels that make up the side walls, it is extremely important to ensure that the opposing panels mirror each other (the 5 ft (1.52m) panel should face the other 5 ft (1.52m) panel and the 6 ft (1.21m) panel should face the other 6 ft (1.21m).

  • Page 10: Equipment Cabinet

    Insulation To conserve heat and reduce operating costs, an R-13 fiberglass insulation kit is provided. The sheets of insulation are to be cut to size and adhered to the backside of the panels with the spray Reinforcing adhesive provided. For 6 foot panels, cut the insulation to length Channel and install the sheets in a vertical orientation.
  • Page 11 Align the pre-drilled holes in each diagonal support with the pre-drilled holes on the flat surface of the tray. Attach the diag- Truss Head Screw onal supports to the underside of the equipment tray using the (4) 1" (25mm) truss head screws located in the diagonal support hardware bag.

  • Page 12: Aluminum Skirting

    Once the skirting panel is positioned over the tension strap bolt and the bottom of skirting panel is seated up against the bottom flange of the pool panel, bend the skirting panel by pressing up against the center to the point where the back of the skirting panel makes contact with the vertical panel stiffeners of the pool panel.
  • Page 13 A skirting corner is attached next. Carefully peel back the pro- There are four identical side skirting panels which will be in- tective film on the sides of the skirting corner and adjoining pan- stalled at the front and rear of each side wall. On the backside el to expose the screw holes.

  • Page 14: Liner Hanger

    Bend and attach a trim strip to the rear side skirting panel. The Liner Hanger holes on each side of the trim strip will align with the holes in the The aluminum liner hanger is installed around the top perimeter adjoining skirting panel.

  • Page 15: Liner Underlayment

    Once the notched liner hanger sections are installed in each Once all of the plastic flooring pieces are in place, use the clear corner, secure the unnotched sections along each side wall. The packaging tape to tape the plastic floor pieces together and tape unnotched sections will transition onto the reinforcing channel to the galvanized panels.

  • Page 16: Foam Corners

    Position a side plate followed by a top plate over the foam pieces Foam Corners to form a corner step. Fig. 26a. Repeat for the other rear corner. Foam corners are installed in the front and rear corners of the No screws or adhesives are required for the corner step installa- pool enclosure.
  • Page 17 From the backside of the front pool panel, position the propul- Adhere a large black gasket, located in the hardware kit, to sion system suction and pressure thru-wall assemblies so the each thru-wall assembly using a thin bead of clear holes in the corners of the square PVC plates align with the holes silicone.

  • Page 18: Liner Installation

    Liner Installation Propulsion System Part 1 All work around the pool should be completed before the liner is The propulsion system housing comes pre-assembled; however, to be installed. This will help ensure that the liner is not damaged connections must be made to attach the internal plumbing as- and keep the pool water free of construction debris.

  • Page 19: Plumbing Part 1

    Remove the left cap/skimmer-filter assembly and right cap by Plumbing Part 1 removing the screws of each acrylic component as shown. Fig. 36 Removing these components will allow you to safely rotate the Water Quality System Plumbing housing assembly so that it’s parallel with the front wall. Attach the pre-plumbed suction assembly to the suction th- ru-wall fitting.
  • Page 20 Attach the pre-plumbed pump-to-heater assembly to the circu- At the outlet of the heater controller, attach the pre-plumbed lation pump. Again, make sure that the pump union o-ring is heater-to-return assembly. Again, make sure the T gasket is seat- seated properly prior to installing. Fig. 40. ed properly prior to tightening the heater-controller union nut.
  • Page 21 Propulsion System Plumbing Attach the pre-plumbed external suction assembly to the suction Attach the pre-plumbed external pressure assembly to the pres- thru-wall assembly. Orient the assembly so that the slide valve is sure thru-wall assembly. Orient the assembly so the slide valve is facing down.

  • Page 22: Thru-Wall Connections Part 2

    Thru-wall Connections Part 2 Propulsion System Thru-wall Connections Locate the propulsion system thru-wall fittings behind the liner. Use a finger to feel for the holes around the perimeter of the Once the water level in the pool is 24” (61cm) high, the thru-wall black gasket that’s adhered to the thru-wall (behind the liner).

  • Page 23: Plumbing Part 2

    Plumbing Part 2 Attach the internal pressure assembly to the pressure thru-wall assembly. The assembly needs to be facing the floor of the pool as shown. Fig. 53. Attach the adapter to the suction thru-wall assembly. Fig. 51. Fig. 53 Fig.
  • Page 24 Carefully rotate and position the propulsion system housing so Propulsion System Plumbing Height Adjustment it’s parallel with the front wall of the pool. Fig. 55 Carefully move the propulsion system housing far enough away from the front wall of the pool to gain access to the rear of the unit.
  • Page 25 Reposition the propulsion system housing at the front of the Attach the suction hose to the elbow and secure the hose with pool to align and attach the pressure assemblies. New holes will the plastic hose clamp. Fig. 57. need to be drilled to secure the escutcheon to the right side of the propulsion system housing.

  • Page 26: Propulsion System Part 2

    Propulsion System Part 2 Once the propulsion housing has been attached to the front wall, the housing lid can be reattached by reinstalling the screws. Fig. 61. Reinstall the screws to secure the left cap/skimmer assembly and right cap. Fig. 59. Fig.

  • Page 27: Coping

    Coping Align the cover system crank handle shaft with the square slot located on the end of the PVC roller assembly. Insert the shaft An aluminum and acrylic coping system finishes the top flange in the slot and tighten the set screw using a 1/8" (3mm) Hex of the pool.
  • Page 28 Attach a PVC coping attachment to each vertical support using Once satisfied with placement of each shim, adhere each section the 1" (25mm) truss head screws located in the support beam to the top flange of the pool with the provided clear silicone. attachment hardware bag.
  • Page 29 Fig. 70 At the rear of the pool, apply silicone to the ends of each cop- ing section to seal the gap between the coping and top flange. Position the rear corner pieces in the rear corners of the pool. Use the provided 11/64"...

  • Page 30: Cover System

    Before installing the coping tee’s at the front of the pool, deter- Keypad Installation mine which side of the pool the keypad will be installed on. On Peal the adhesive film off the backside of the keypad. Insert the the underside of each coping tee there is a template for a keypad cord into the oval shaped knock out in the acrylic coping tee.
  • Page 31 Cover Track Remove the snap in track inserts from each track section. Fig. 77. Because the height of the acrylic coping corners and trim strip are slightly higher than the surrounding coping sections on each side wall, ABS shim is included to provide a level surface for the cover tracks.
  • Page 32 There are pre-drilled holes down the length of each track section. Secure both the end cap and end guide into the track using the Use the 11/64" (4mm) drill bit to drill out the holes (to make it 8-32 x 5/16" (8mm) self-tapping screws. Repeat for the track on easier to install track screws).
  • Page 33 Leading Edge Installation Pull out a few inches of fabric on each end of the leading edge. Slide the leading edge on to the bead at the front of the cover. Fig. 84.2. Fig. 83. Despite the way the fabric is stitched, the front bead does not extend all the way to the sides of the fabric.
  • Page 34 Fabric Installation Leading Edge Stops Insert the front edge of the cover fabric (the end with the beaded Drill a 1/4" (6mm) hole into the track insert 3" (76mm) in from edge) into the end guides on both sides of the pool. Pull the cover the end of the track sections closest to the front of the pool and into the tracks evenly towards the rear of the pool, completely roller mechanism.

  • Page 35: Outdoor Installations

    Locking Strap Installation Outdoor Installations Make sure the cover is in the closed position prior to installing For outdoor installations, place the cover pump on top of the the safety strap. Locate the center of the leading edge. The ideal cover.

  • Page 36: Heater-Controller Plug-In Connections

    Heater-Controller Plug-In Connections The Heater-Controller (In.xe) features in.links connectors with colored and tagged polarizers. This plug and connector technolo- gy has been specifically designed for easy and safe assembly. The tags are interchangeable depending on the output; the polarizers are designed to avoid misconnections. Fig. 92. Fig.

  • Page 37: Electrical Wiring Connections - 60Hz (Us)

    The path could be through a person or water. The purpose of this device is to reduce the chance of electrical shock. The Streamline Pool requires one single phase 220V 30amp GFCI protected service. All connections should be made by a licensed electrician.

  • Page 38: Electrical Wiring Connections - 50Hz (International)

    The path could be through a person or water. The purpose of this device is to reduce the chance of electrical shock. The Streamline Pool requires one single phase 220V 32amp RCD protected service. All connections should be made by a licensed electrician.

  • Page 39: Pool Start Up

    Pool Start up Open both water quality system ball valves making sure they are parallel with the plumbing. Open both propulsion system slide valves. Close slide valve and wait 1-2 minutes for When power is first introduced to the system, the heater-con- pump housing to fill with water troller will go through a boot-up cycle (which can last 2-5 min-...
  • Page 40 Position the horizontal brace in the notches of the vertical brac- Position and attach the front skirting panel to each front skirting es. Attach the horizontal brace to each vertical brace with the corner. Make sure the pre-drilled holes around the perimeter of 3/4"(19mm) flat screws located in the access panel frame hard- the access port align with the holes in the vertical braces, hori- ware bag.

  • Page 41: Product Information Label

    The suction outlet fitting MUST be repaired or replaced if it’s missing, loose, dented, cracked, or An additional Streamline Users Guide has been provided with broken. The fasteners and corresponding receptacles MUST be this pool. This guide provides a full overview on the pools func- replaced or repaired if damaged.
  • Page 42 1. Remove the #10 x 3/4” (19mm) Phillips Truss Head Screws on 4. Remove the #10 x 3/4” (19mm) Phillips Truss Head Screws the horizontal surface of the suction outlet fitting grill cover. securing the suction outlet grill to the housing and remove the Fig.
  • Page 44 2008 VGB Complient Endless Pools • 1601 Dutton Mill Rd • Aston, PA 19014-2931 D10107 0420 800-910-2714 US • 610-497-8693 fax • www.myendlesspool.com © 2020 Endless Pools...
