Fastlane Pro Swim Unit Installation
®

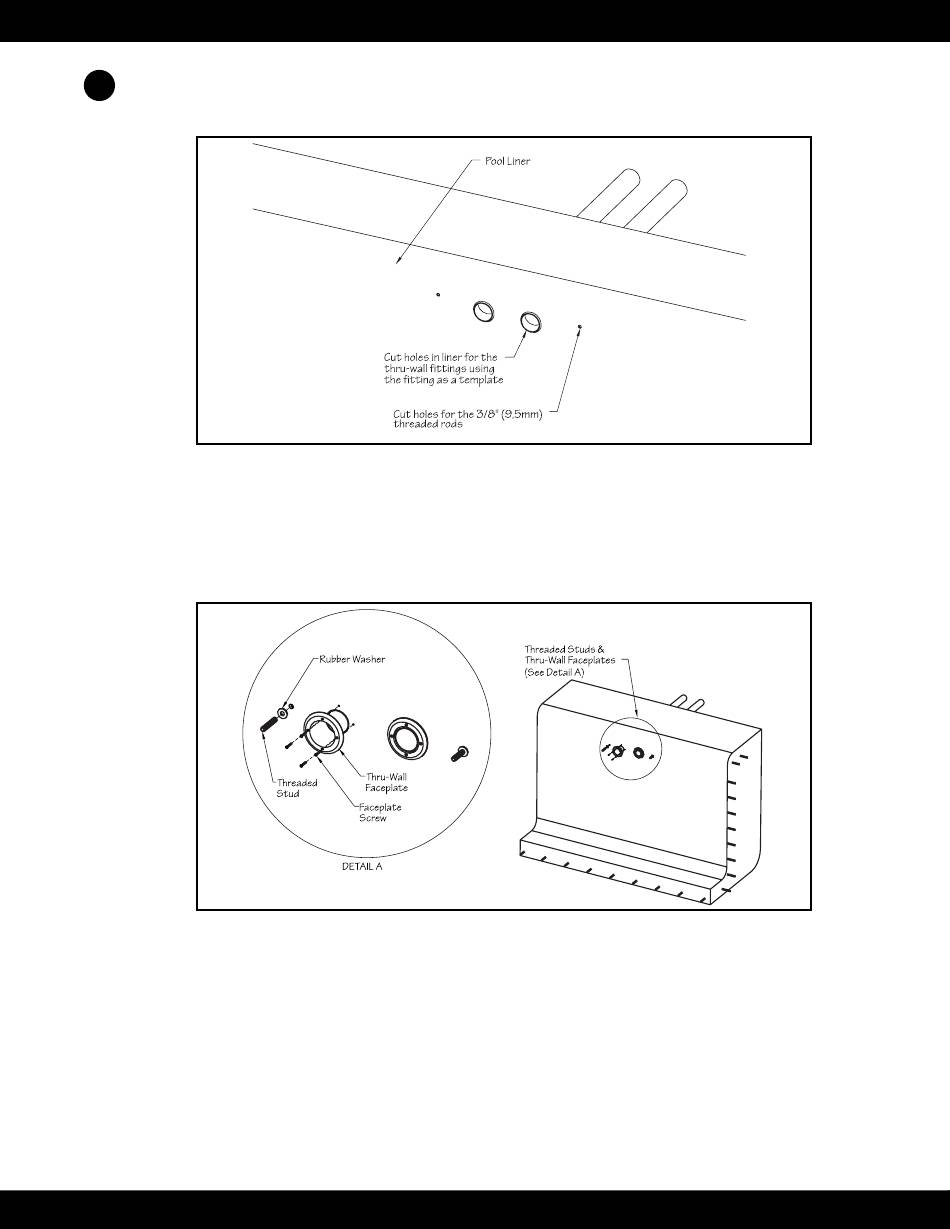

After the liner is installed, add water to the pool to weigh the liner down pulling it tight. When the liner is
W
tight, cut the holes for each thru-wall fitting and threaded rod hole using a sharp utility knife. Cut the holes
as small as possible for the threaded rods (Fig 4.22).
Fig. 4.22
Using a scratch awl, poke the holes out in each star thru-wall fitting (holes located in 12, 3, 6, 9 clock
positions) and install the thru-wall faceplates using the screws provided. Tighten the screws with a hand
screwdriver to avoid cracking the faceplates. Apply RTV or a similar caulk to the threaded stud and rubber
washer and thread each stud into the 3/8" (9,5mm) holes in the liner/pool wall making sure the rubber
washer is flush against pool liner (Fig 4.23).
Fig. 4.23
