SwimCross
Exercise Systems
™
by Endless Pools
®
O W N E R ' S M A N U A L 5 0 H Z

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SwimCross X500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Endless Pools SwimCross X500

Summary of Contents for Endless Pools SwimCross X500

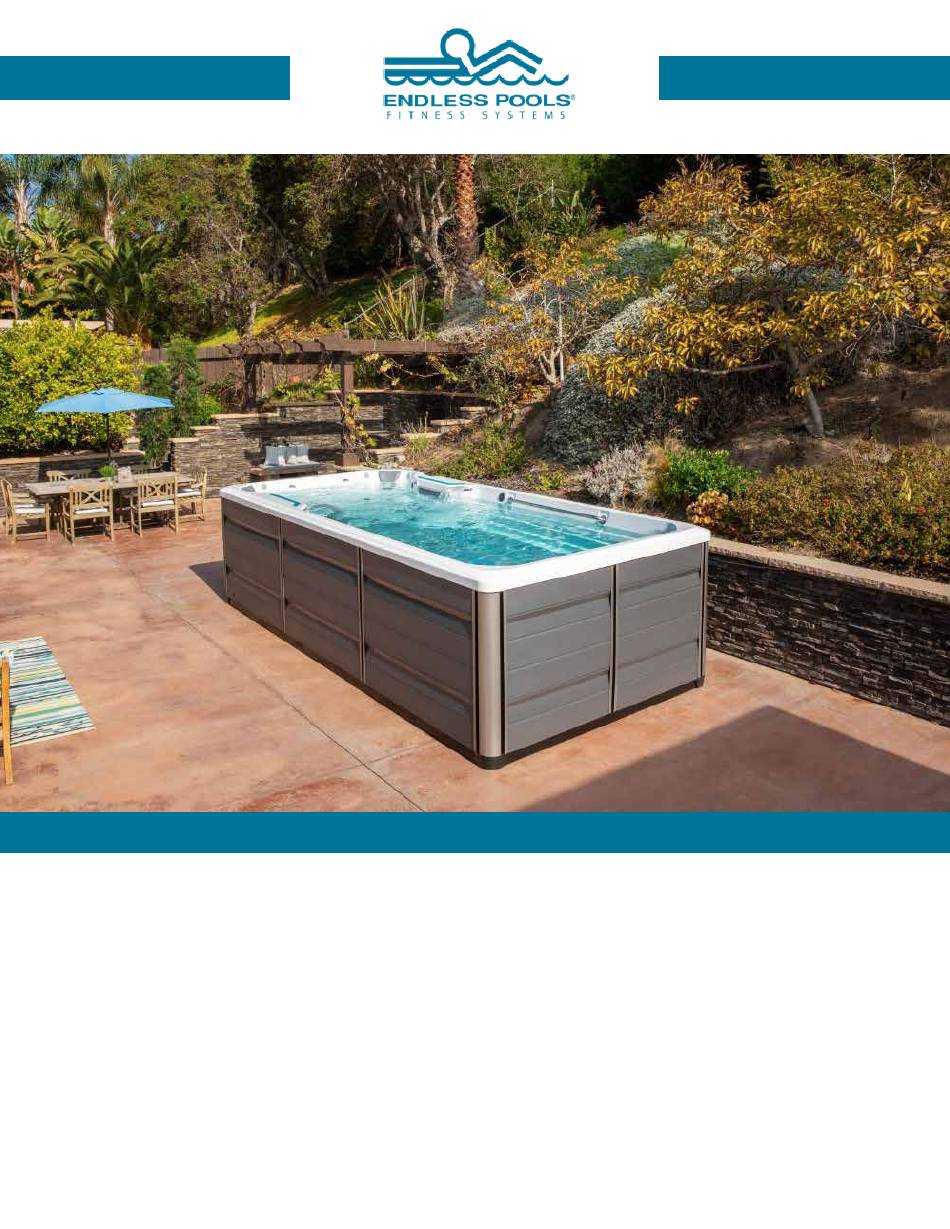

  • Page 1 SwimCross Exercise Systems ™ by Endless Pools ® O W N E R ' S M A N U A L 5 0 H Z...
  • Page 2 If you have questions about any aspect of your SWIMCROSS Exercise System’s set-up, operation or maintenance, contact your authorized ENDLESS POOLS dealership. They are trained professionals who are familiar with the product, as well as new SWIMCROSS Exercise System ownership concerns. Their expertise will facilitate the enjoyment of your new SWIMCROSS Exercise System.

  • Page 3: Table Of Contents

    DECK INSTALLATION ............5 FUNDAMENTALS OF DELIVERY ACCESS .............. 5 WATER MAINTENANCE .............16 X500 MODEL ................6 THE ENDLESS POOLS WATER MAINTENANCE ELECTRICAL REQUIREMENTS PROGRAM ................18 220 - 240 VOLT PERMANENTLY CONNECTED ....7 VACATION WATER CARE INSTRUCTIONS .....19 EQUIPMENT COMPARTMENT ..........8 GLOSSARY ................20...

  • Page 4: Safety Information

    NO DIVING afety nformatIon IMPORTANT SAFETY Danger: Diving may result INSTRUCTIONS in serious injury or death. (READ AND FOLLOW ALL • A ground terminal (pressure wire connector) is provided on the control box inside the unit to permit connection of a minimum 8 mm² INSTRUCTIONS) solid copper bonding conductor between this point and any metal equipment, metal water pipe, metal enclosures of electrical equipment,...
  • Page 5 • Keep the water clean and sanitized with correct chemical care. The • Attempt to open the electrical control box. There are no user serviceable recommended levels for your ENDLESS POOLS SWIMCROSS parts inside. Exercise System are: RISKS TO AVOID...

  • Page 6: Important Swimcross Exercise System Instructions

    Troubleshooting section. If you are not able to resolve the problem, exercise. contact your authorized ENDLESS POOLS dealer. Many problems can easily be diagnosed over the telephone by an Authorized Service • Keep all breakables, especially glass, away from this SWIMCROSS Technician.

  • Page 7: Site Requirements

    Should there a be a gap or should the water puddle inside the footprint, Nighttime lighting. call your Endless Pools dealer prior to continuing to discuss the best Consider sunlight exposure, views, access, property lines, lighting, way to resolve this situation.

  • Page 8: Deck Installation

    DECK INSTALLATION DELIVERY ACCESS To be certain your deck can support your system you must know It may be necessary to remove a gate, part of a fence, or other movable the deck’s maximum load capacity. Consult a qualified building obstructions in order to move the system to its installation site.

  • Page 9: X500 Model

    DOOR SIDE NOTE: ENDLESS POOLS requires that the X500 Model be installed on a minimum 15 cm (6") thick reinforced concrete pad or structurally sound deck able to support the “dead weight” found in the specification chart on the back page.

  • Page 10: Electrical Requirements

    Exercise System, but not closer than 1.5 m (5 feet) away. Your IMPORTANT: If you ever need to move or relocate your ENDLESS POOLS SWIMCROSS Exercise System, it is essential that you understand and apply these installation requirements. Your ENDLESS POOLS SWIMCROSS Exercise System has been carefully engineered to provide maximum safety against electric shock.

  • Page 11: Equipment Compartment

    EQUIPMENT COMPARTMENT The illustrations below are to be used as a reference only (your SWIMCROSS Exercise System may look different). The equipment compartment is located behind the hydromassage seats (back of the SWIMCROSS Exercise System). Hydromassage Jets & Filter Pump UVC Ozone Swim Jets Pump Bluetooth Music (optional)

  • Page 12: Getting Started

    ettInG tarted MAIN SWIMCROSS EXERCISE SYSTEM FEATURES 1 ) The control panel provides a quick visual check of the SWIMCROSS Exercise System’s status and allows the user to set different functions of the SWIMCROSS Exercise System. 2) The Air Valve allows you to add air to your hydromassage jets.

  • Page 13: Hydromassage Jets

    HYDROMASSAGE JETS RIVER JET - Raise or lower the River jet nozzle to simulate a water current at or below your body during your swim. Rotate the right diverter valve to change the strength of the water flow coming out of the jet. LARGE HYDROMASSAGE JETS - This jet provides a unique, pulsating massage.
  • Page 14 • To turn off the jets, press all of the jets button on the control panel to turn off the jets. Your ENDLESS POOLS SWIMCROSS Exercise System has been • If you do not feel a steady stream of water from your jets, refer...

  • Page 15: Operating Instructions

    WATER CARE peratInG nStructIonS The Water Care section will help you set up your ideal filtration and heating CONTROL PANEL settings. Choose from Away from Home, Standard, Energy Savings, Super Energy The control panel provides a bright, full color display, and intuitive user Savings, and Weekender, depending on experience, while its screen’s high resolution brings SWIMCROSS your needs.
  • Page 16 KEYPAD SETTINGS You can modify the programmed schedules by selecting one (middle left) lit button and adjusting the schedule using the buttons. In this section, you can change the Press (middle left) lit button to move between parameters. temperature unit, language, display You have several possibilities for the schedule (Mon-Fri, weekend, every orientation, rim around the control day, or single days).

  • Page 17: Audio In.stream 2 (Optional)

    WI-FI devices using Bluetooth technology only, and will NOT work when AUX (OPTIONAL) is selected as the source. This menu allows you to connect TURNING POWER ON/OFF your in.touch module to a Wi-Fi network or to change its network. Press the (top right) lit button to start the audio on or off process.

  • Page 18: Smart Winter Mode

    HYDROMASSAGE JETS EXTERNAL LIGHTS (OPTIONAL) Turn the hydromassage jet pump On to activate all of the hydromassage Press the (middle right) button (when in the home screen) to activate jets in the seated area as well as the waterfall if the waterfall valve is the external lights and right light icon.

  • Page 19: Water Quality And Maintenance

    SYSTEM WATER CHEMICALS: water every year; however, it is dependent on the amount of usage. Check with your ENDLESS POOLS dealer to determine if water in your Fold back the cover. region has unique qualities - such as high metal or mineral content - that should be addressed.
  • Page 20 • Chemical Balance/pH Control: It is important to adjust the primary • Water Conditioners: SWIMCROSS Exercise System fill water varies water parameters (Total Alkalinity, Calcium hardness, pH) into the from location to location and user to user, therefore it is important to recommended ranges so that they are stabilized or balanced.

  • Page 21: The Endless Pools Water Maintenance Program

    THE ENDLESS POOLS WATER or evening, additional sanitizer will be needed. MAINTENANCE PROGRAM Required: One Silver Ion cartridge per 1,893 liters (500 gallons). FILLING THE SWIMCROSS EXERCISE Silver Ion cartridges to be placed inside filter skimmer tray (maximum of 2 per tray).

  • Page 22: Vacation Water Care Instructions

    DON'T: Upon your return: • Use compressed sanitizers. 3. Sanitize the water by following the shock procedures. Return the set temperature to its original setting. The SWIMCROSS Exercise System • Use a floater type sanitization system as a low or no maintenance water will be safe for you to use once the Free Available Chlorine solution to your SWIMCROSS Exercise System maintenance program.

  • Page 23: Glossary

    GLOSSARY Oxidizer: The use of an oxidizing chemical is to prevent the buildup of contaminants, maximize sanitizer efficiency, minimize combined chlorine The following chemical terms are used in this Water Quality and and improve water clarity. See MPS and Ozone. Maintenance section.

  • Page 24: Care And Maintenance

    Your ENDLESS POOLS SWIMCROSS Exercise System is manufactured from the highest quality, most durable materials available. Even so, the SWIMCROSS Exercise System care and maintenance program you develop will ultimately determine how long your SWIMCROSS Exercise System, and its individual components, will last.

  • Page 25: Draining Your Swimcross Exercise System

    WINTERIZING YOUR SWIMCROSS EXERCISE SYSTEM EXERCISE SYSTEM An ENDLESS POOLS SWIMCROSS Exercise System may be Turn off all RCD breakers in sub-panel, or main electrical panel. used year round, even in colder climates. If you will not be using the...

  • Page 26: Care Of The Exterior

    SWIMCROSS EXERCISE SYSTEM SHELL cleaning and conditioning are recommended to maintain its beauty. Your ENDLESS POOLS SWIMCROSS Exercise System has an acrylic To clean and condition the vinyl cover without a lifter: shell. Stains and dirt generally will not adhere to your SWIMCROSS Remove the covers from the SWIMCROSS Exercise System and Exercise System’s surface.

  • Page 27: Service Information

    SWIMCROSS Exercise System has not tripped. The limited warranty is void if the ENDLESS POOLS SWIMCROSS If it has, this is an indication that the circuit was either overloaded or a...

  • Page 28: Disclaimers

    Watkins Wellness shall not be liable for loss of use of the ENDLESS POOLS SWIMCROSS Exercise System, or other incidental, If you have any questions about any aspect of your ENDLESS POOLS consequential, special, indirect, or punitive costs, expenses or damages,...
  • Page 29 • Let cool for one hour. Motor overload will reset automatically. If problem persists, contact your ENDLESS POOLS dealer • Disconnect SWIMCROSS Exercise System and contact your ENDLESS POOLS dealer • Control switch failure if jet symbol does not come on Surging pump or motor •...
  • Page 32 * NOTE: The “Filled weight” and “Dead weight” of the SWIMCROSS Exercise System includes the weight of 10 occupants (assuming an average occupant weight of 80 kg (175 lbs)). ©2022 WATKINS WELLNESS. ENDLESS POOLS IS A TRADEMARK OF WATKINS WELLNESS, registered in the U.S., CTM and other countries. Vista, California 305034.23 A (11/22)
