Thread the 3/8" (9,5mm) jam nut onto the threaded rod. Thread the hex coupling onto the threaded rod so
W
that half of the hex coupling is threaded onto the rod and the other half that's facing the pool is protruding
off the threaded rod. Tighten the jam nut so that its flush with the hex coupling to prevent the hex coupling
from threading further onto the rod (Fig 4.16).

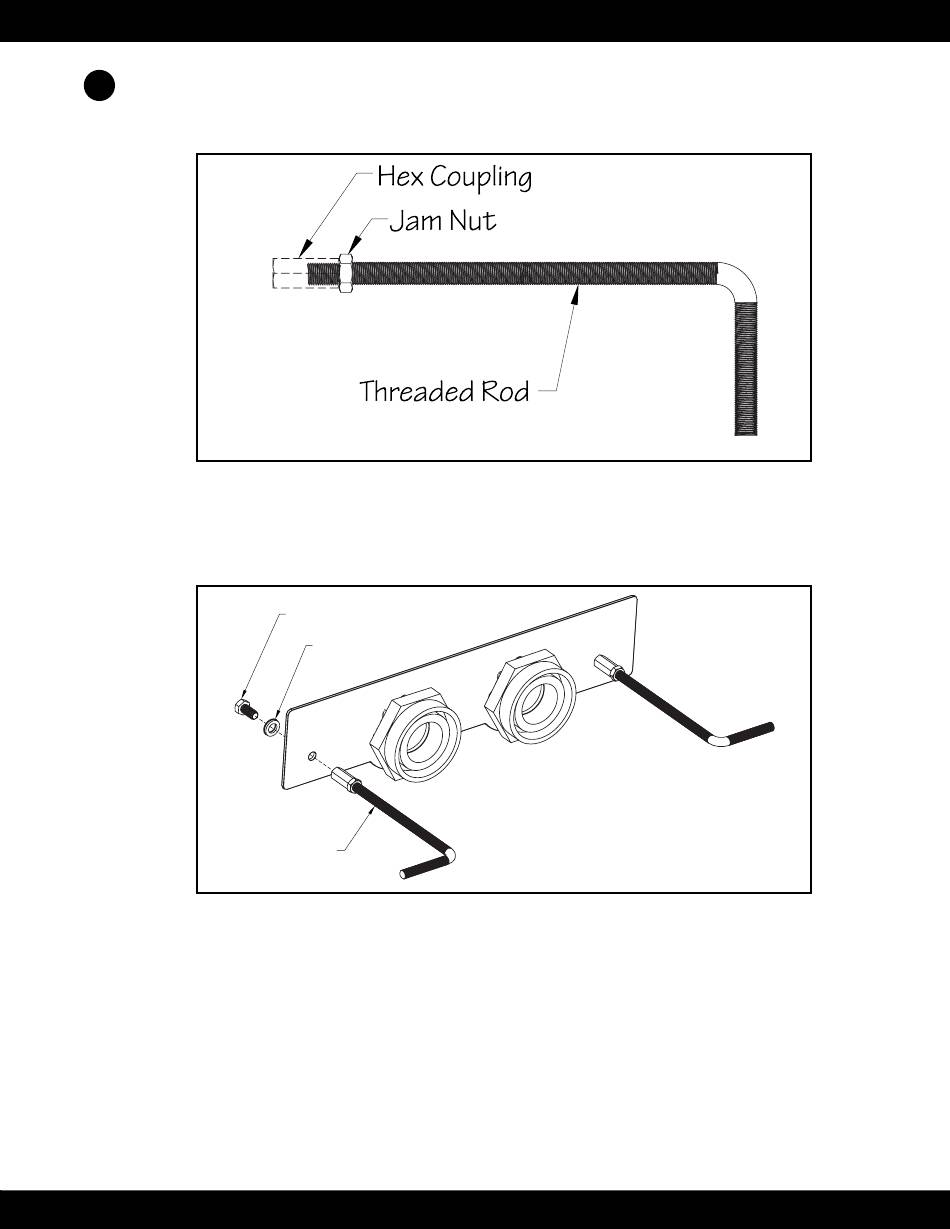

Fig. 4.16
On the backside of the bracket, position each threaded rod with the hex coupling to align with the 3/8"
(9,5mm) holes. On the front of the bracket, thread the sacrificial 3/8" (9,5mm) steel with rubber washers
and bolts into the hex couplings (Fig 4.17).
Threaded Rod
Assembly
Fig. 4.17
Sacrificial Bolt
Sacrificial Washer
