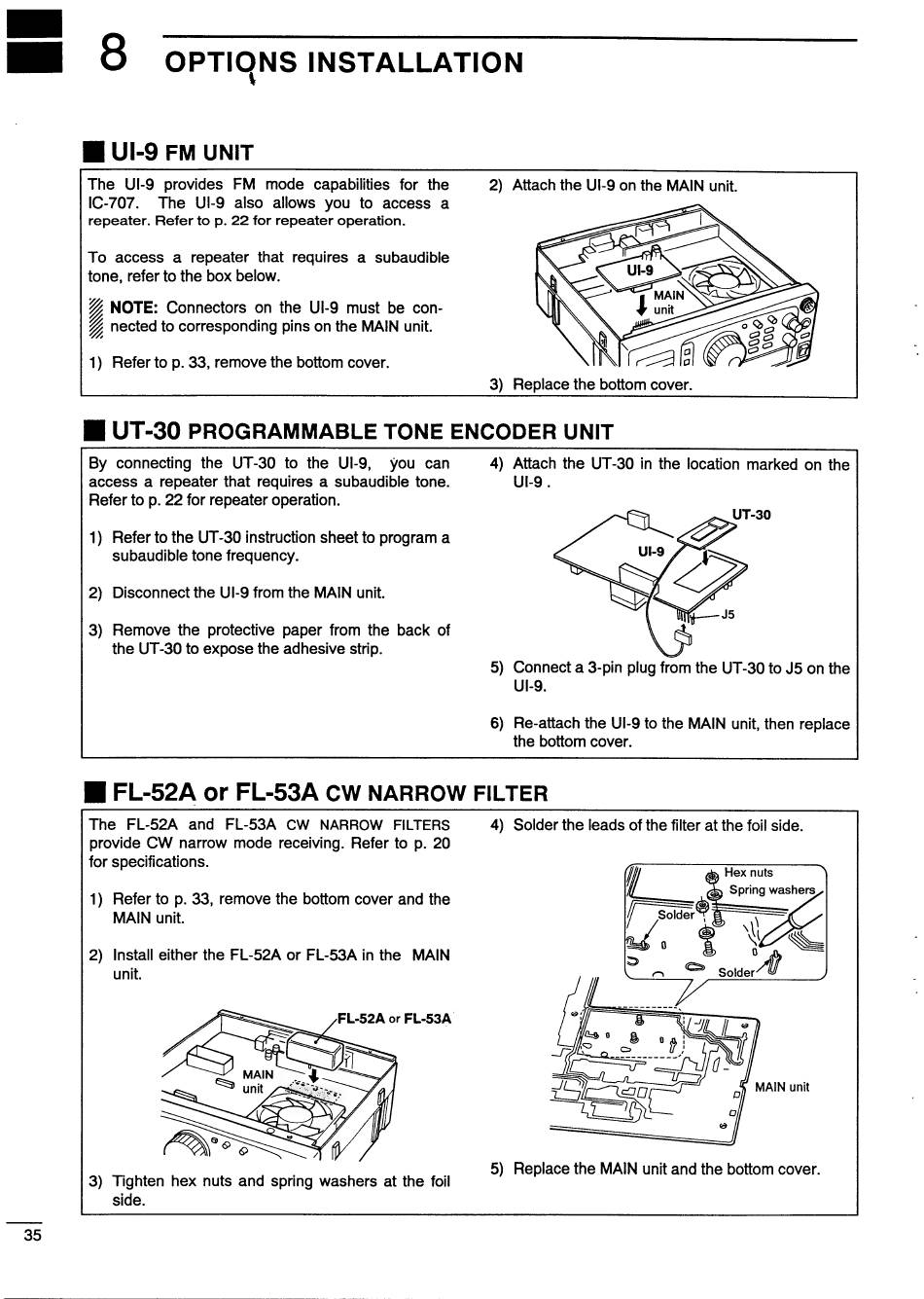

Wi UI-9 FM UNIT
The UI-9 provides FM mode capabilities for the
IC-707. The UI-9 also allows you to access a
repeater. Refer to p. 22 for repeater operation.
2) Attach the UI-9 on the MAIN unit.
To access a repeater that requires a subaudible
tone, refer to the box below.
Z NOTE: Connectors on the UI-9 must be con-
A nected to corresponding pins on the MAIN unit.
1) Refer to p. 33, remove the bottom cover.
By connecting the UT-30 to the UI-9, you can
access a repeater that requires a subaudible tone.
Refer to p. 22 for repeater operation.
1) Refer to the UT-30 instruction sheet to program a
subaudible tone frequency.
2) Disconnect the UI-9 from the MAIN unit.
3) Remove the protective paper from the back of
the UT-30 to expose the adhesive strip.
UI-9.
6) Re-attach the UI-9 to the MAIN unit, then replace
the bottom cover.
W FL-52A or FL-53A CW NARROW FILTER
The FL-52A and FL-53A CW NARROW FILTERS
provide CW narrow mode receiving. Refer to p. 20
for specifications.
4) Solder the leads of the filter at the foil side.
1) Refer to p. 33, remove the bottom cover and the
MAIN unit.
2) Install either the FL-52A or FL-53A in the MAIN
unit.
FL-52A or FL-53A
MAIN unit
, ji ji 5) Replace the MAIN unit and the bottom cover.
3) Tighten hex nuts and spring washers at the foil
side.
35
