1 PANEL DESCRIPTION

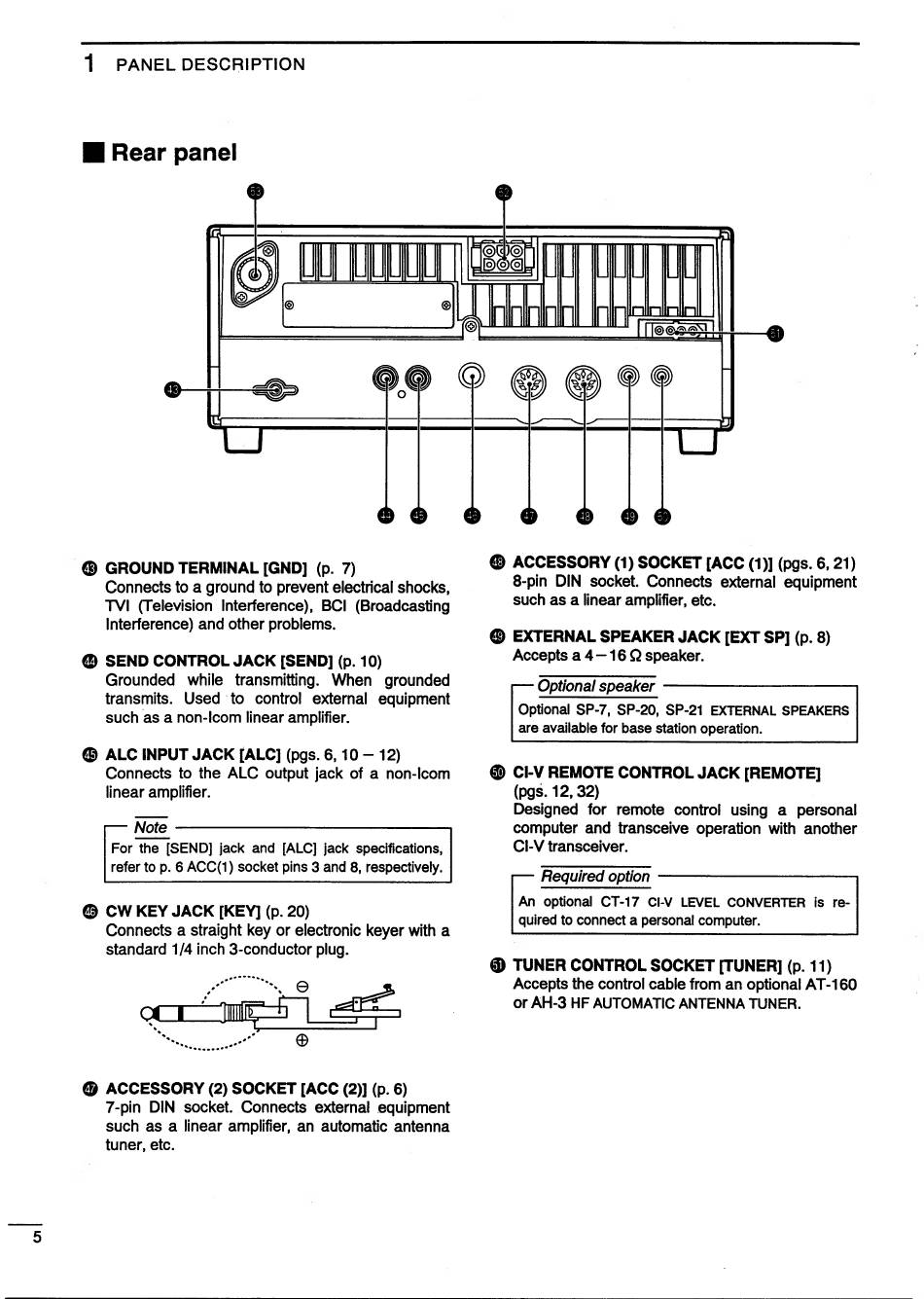

W Rear panel
(9 GROUND TERMINAL [GND] (p. 7)
Connects to a ground to prevent electrical shocks,
TVI (Television Interference), BCI (Broadcasting
Interference) and other problems.
@ SEND CONTROL JACK [SEND] (p. 10)
Grounded while transmitting. When grounded
transmits. Used to control external equipment
such as a non-Icom linear amplifier.
@ ALC INPUT JACK [ALC] (pgs. 6, 10 — 12)
Connects to the ALC output jack of a non-icom
linear amplifier.
Note
For the [SEND] jack and [ALC] jack specifications,
refer to p. 6 ACC(1) socket pins 3 and 8, respectively.
@ CW KEY JACK [KEY] (p. 20)
Connects a straight key or electronic keyer with a
standard 1/4 inch 3-conductor plug.
@ ACCESSORY (2) SOCKET [ACC (2)] (p. 6)
7-pin DIN socket. Connects external equipment
such as a linear amplifier, an automatic antenna
tuner, etc.
© JIAN |
|
D
W
@ ACCESSORY (1) SOCKET [ACC (1)] (pgs. 6, 21)
8-pin DIN socket. Connects external equipment
such as a linear amplifier, etc.
@ EXTERNAL SPEAKER JACK [EXT SP] (p. 8)
Accepts a 4— 16 Q speaker.
Optional speaker
Optional SP-7, SP-20, SP-21 EXTERNAL SPEAKERS
are available for base station operation.
@ CI-V REMOTE CONTROL JACK [REMOTE]
(pgs. 12, 32)
Designed for remote control using a personal
computer and transceive operation with another
CI-V transceiver.
Required option
An optional CT-17 CI-V LEVEL CONVERTER is re-
quired to connect a personal computer.
@ TUNER CONTROL SOCKET [TUNER] (p. 11)
Accepts the control cable from an optional AT-160
or AH-3 HF AUTOMATIC ANTENNA TUNER.
