CASE REMOVAL FROM SKID (LOCKING/UNLOCKING CASTERS)
1. Removing Case Shipping Brackets That Are Attached To Skid
• Remove screws holding shipping brackets to skid.
• Remove shipping brackets from skid.
• See illustrations below. Note: Shipping Brackets will vary in size, shape, material and location depending
upon case type and model.
2. Remove Case (With Casters) From Skid
A. Place ramp up against skid (to allow case to smoothly slide off from skid).
B. Maintain support of case at all times or center of gravity may cause case to fall.
C. Unlock Casters. Slide unit to rear of skid. Slide down ramp and off from skid.
Note: See next page for panel attachment instructions. CN33R shown for reference only, you model may
differ in appearance.

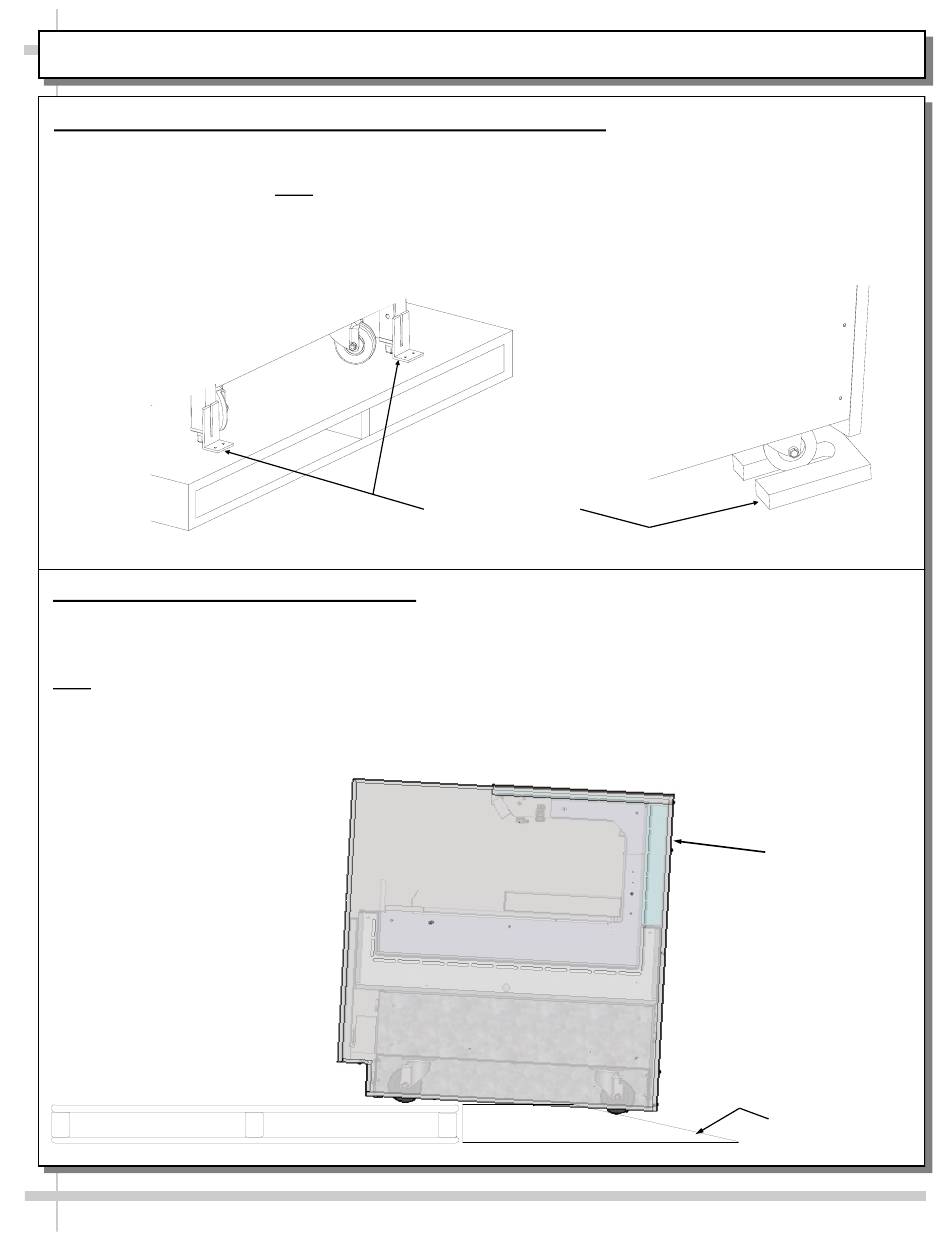

Various Types Of
Case Shipping
Brackets
6
Support case
while sliding
down ramp.
Ramp
