REFRIGERATION - CONDENSATE PACKAGE ILLUSTRATED PARTS BREAKDOWN

Refrigeration Fundamentals, Continued

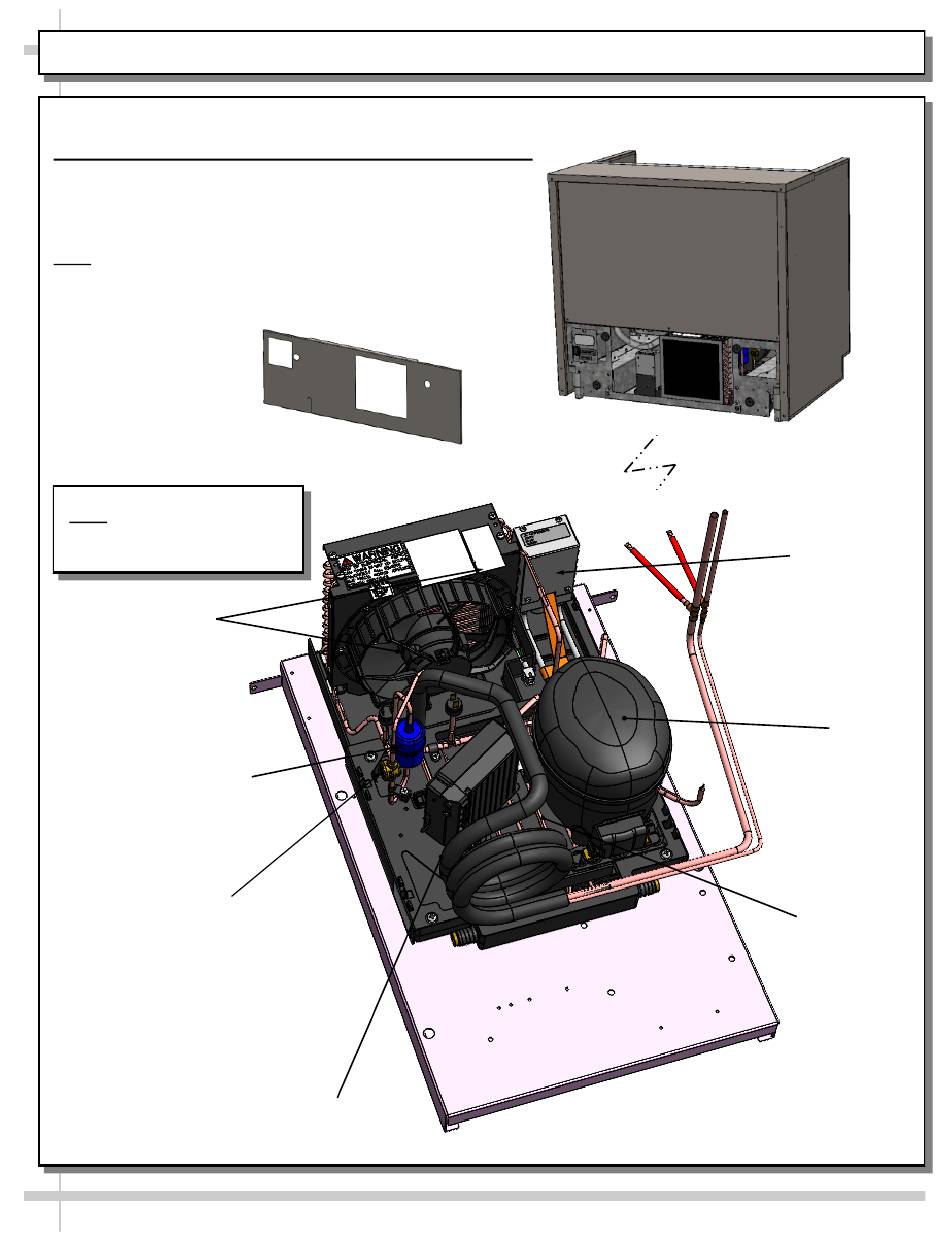

3. Condensate Package Illustrated Parts Breakdown
Assembly or disassembly and servicing to be
accomplished by licensed refrigeration contractor.
After rear grille has been removed, slide condensate
package out slowly and carefully.
Note: CN33R shown for reference only, you model may differ
in appearance.
Rear Grille
Note: Condensate Package
Is Shown Rotated For
Illustrative Purposes
Condensing Coil
(and Internal Fan)
Filter Drier
Sight Glass
Condensate
Overflow Pan
14
Compressor
Electrical
Box
Compressor
Hot Gas Loop
Condensate
Pan
