INSTALLATION, CONTINUED: FRONT GLASS ALIGNMENT & ADJUSTMENT (VIA RAIL SYSTEM)

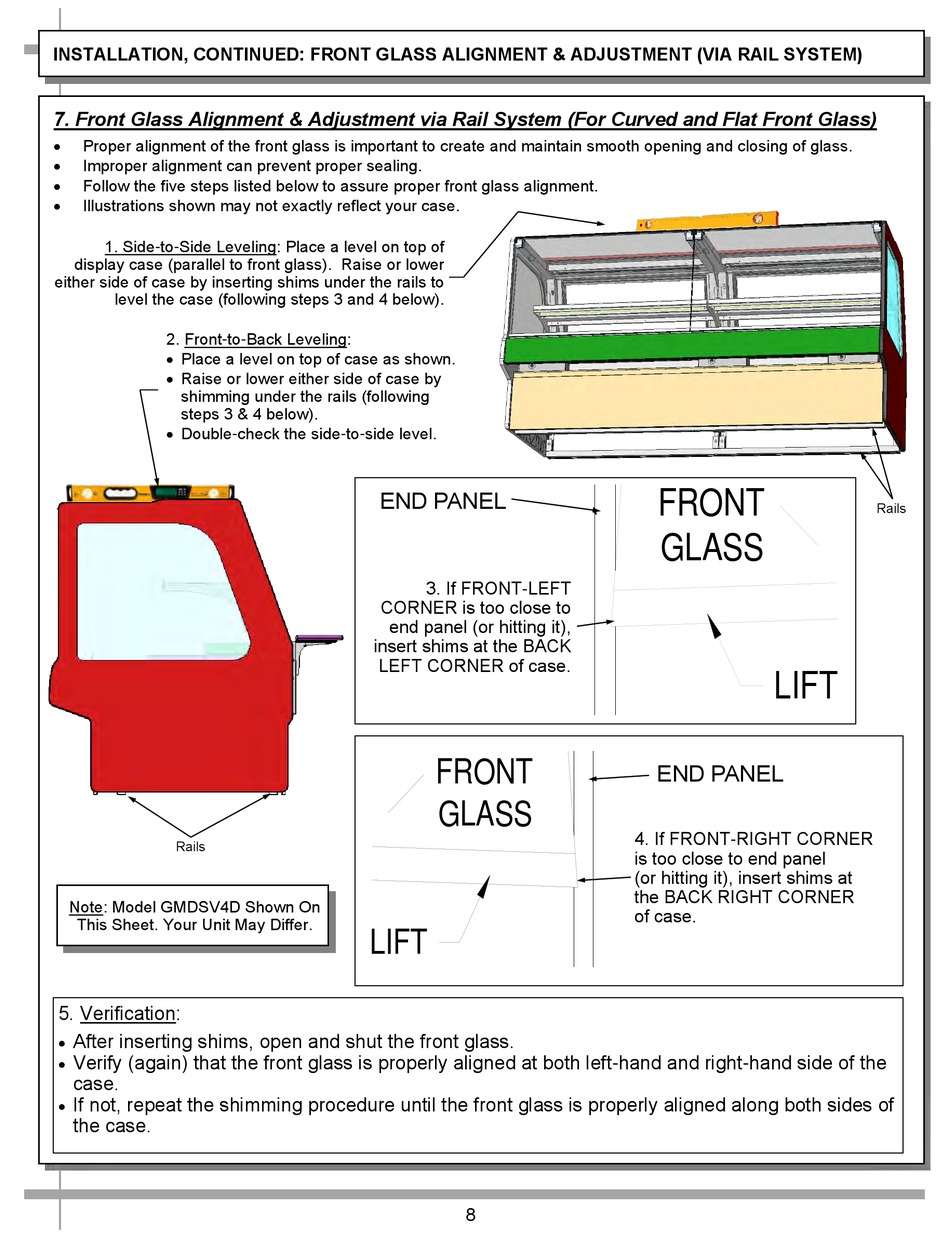

7. Front Glass Alignment & Adjustment via Rail System (For Curved and Flat Front Glass)

Proper alignment of the front glass is important to create and maintain smooth opening and closing of glass.

Improper alignment can prevent proper sealing.

Follow the five steps listed below to assure proper front glass alignment.

Illustrations shown may not exactly reflect your case.
1. Side-to-Side Leveling: Place a level on top of
display case (parallel to front glass). Raise or lower
either side of case by inserting shims under the rails to
level the case (following steps 3 and 4 below).
2. Front-to-Back Leveling:
 Place a level on top of case as shown.
 Raise or lower either side of case by
shimming under the rails (following
steps 3 & 4 below).
 Double-check the side-to-side level.
Rails
Note: Model GMDSV4D Shown On
This Sheet. Your Unit May Differ.
5. Verification:
After inserting shims, open and shut the front glass.

Verify (again) that the front glass is properly aligned at both left-hand and right-hand side of the

case.
If not, repeat the shimming procedure until the front glass is properly aligned along both sides of

the case.
END
END PANEL
PANEL
3. If FRONT-LEFT
CORNER is too close to
end panel (or hitting it),
insert shims at the BACK
LEFT CORNER of case.
CURVED
FRONT
GLASS
LIFT
8
CURVED
FRONT
GLASS
LIFT
END
END PANEL
PANEL
4. If FRONT-RIGHT CORNER
is too close to end panel
(or hitting it), insert shims at
the BACK RIGHT CORNER
of case.
Rails
