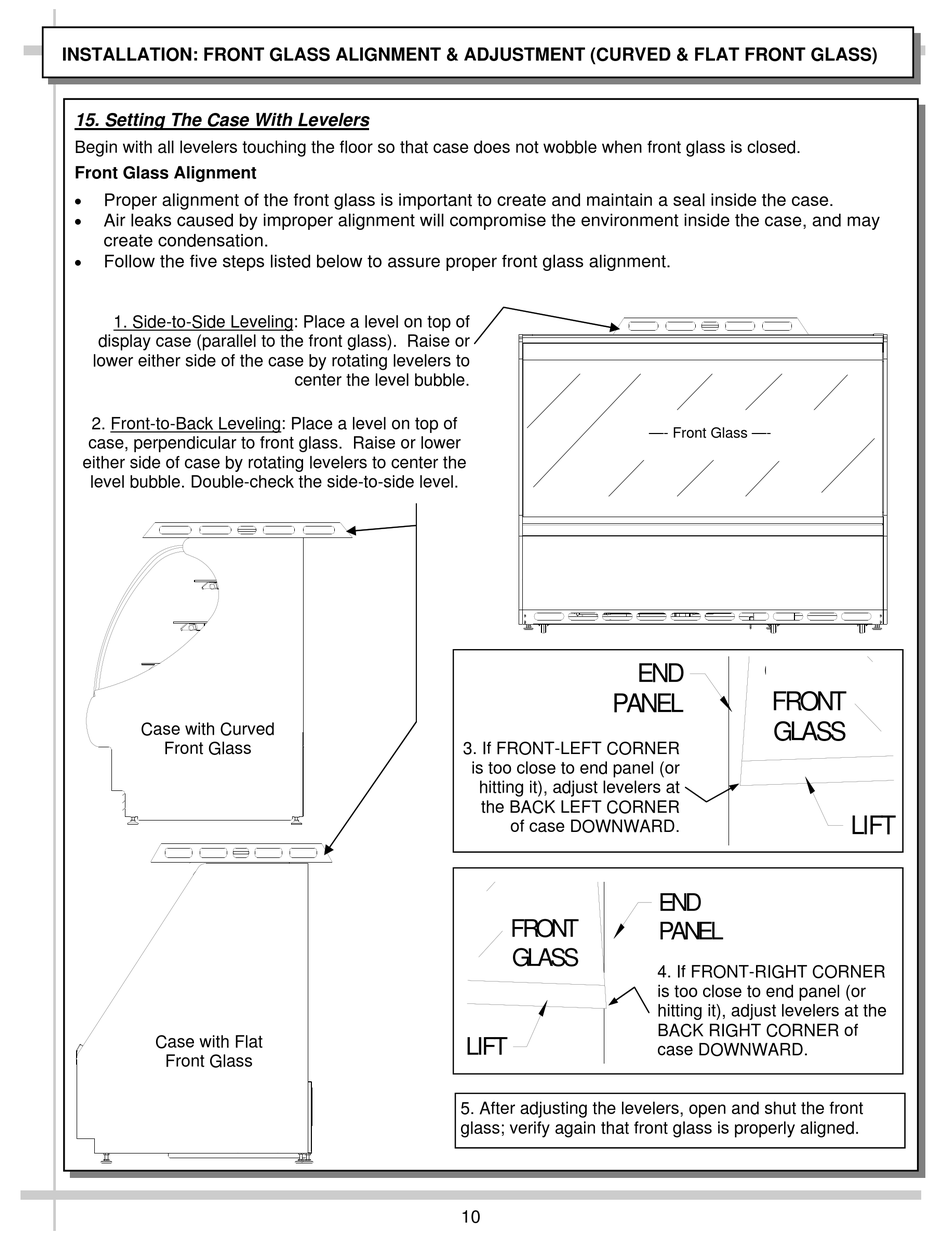

INSTALLATION: FRONT GLASS ALIGNMENT & ADJUSTMENT (CURVED & FLAT FRONT GLASS)
15. Setting The Case With Levelers
Begin with all levelers touching the floor so that case does not wobble when front glass is closed.
Front Glass Alignment

Proper alignment of the front glass is important to create and maintain a seal inside the case.

Air leaks caused by improper alignment will compromise the environment inside the case, and may
create condensation.

Follow the five steps listed below to assure proper front glass alignment.
1. Side-to-Side Leveling: Place a level on top of
display case (parallel to the front glass). Raise or
lower either side of the case by rotating levelers to
2. Front-to-Back Leveling: Place a level on top of
case, perpendicular to front glass. Raise or lower
either side of case by rotating levelers to center the
level bubble. Double-check the side-to-side level.
Case with Curved
Front Glass
Case with Flat
Front Glass
center the level bubble.
3. If FRONT-LEFT CORNER
is too close to end panel (or
LIFT
5. After adjusting the levelers, open and shut the front
glass; verify again that front glass is properly aligned.
10
—- Front Glass —-
END
PANEL
hitting it), adjust levelers at
the BACK LEFT CORNER
of case DOWNWARD.
CURVED
END
FRONT
PANEL
GLASS
4. If FRONT-RIGHT CORNER
is too close to end panel (or
hitting it), adjust levelers at the
BACK RIGHT CORNER of
case DOWNWARD.
CURVED
FRONT
GLASS
LIFT
