READ AND SAVE THESE INSTRUCTIONS
OASIS
®
Important!
USER MANUAL
See Counter
Installation Guide
21-33895
Section In This
Manual Before
Proceeding With
Installation!
SELF-SERVICE REFRIGERATED MERCHANDISERS

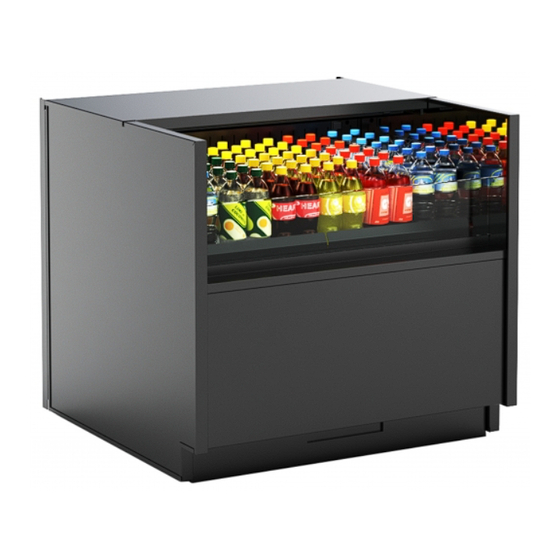

Model C33R
Model CN33R
Models Represented In This Operating Manual*
C33R, C43R, C53R, CN33R, CN43R, CN53R, B37R, B47R, B57R, B67R, BN37R, BN47R,
BN57R, B35R, B45R, B55R, B65R
* This Manual May Also Be Applicable To Models Not Listed Herein.
Structural
Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
21-33895 OASIS REF SELF-SERVICE B BN C CN-EN
REV-A DATE: 5/22/24
