LOAD LEVEL GUIDE & TEMPERATURE GUIDE - MODELS C(T)(L)(H)R
LOAD LEVEL & TEMPERATURE GUIDE - MODELS C(T)(L)(H)R
>> FOLLOW THESE PRODUCT PLACEMENT GUIDELINES TO
MAINTAIN DESIRED PRODUCT TEMPERATURES.
>> FRONT TO REAR PRODUCT TEMPS ARE ESTIMATES ONLY.
>> NOTES CORRESPOND WITH ILLUSTRATIONS SHOWN.
1. ALLOW AT LEAST 1" SPACE BETWEEN PRODUCT AND
ITS SHELF ABOVE.
PACKAGED
PRODUCT
ILLUSTRATION

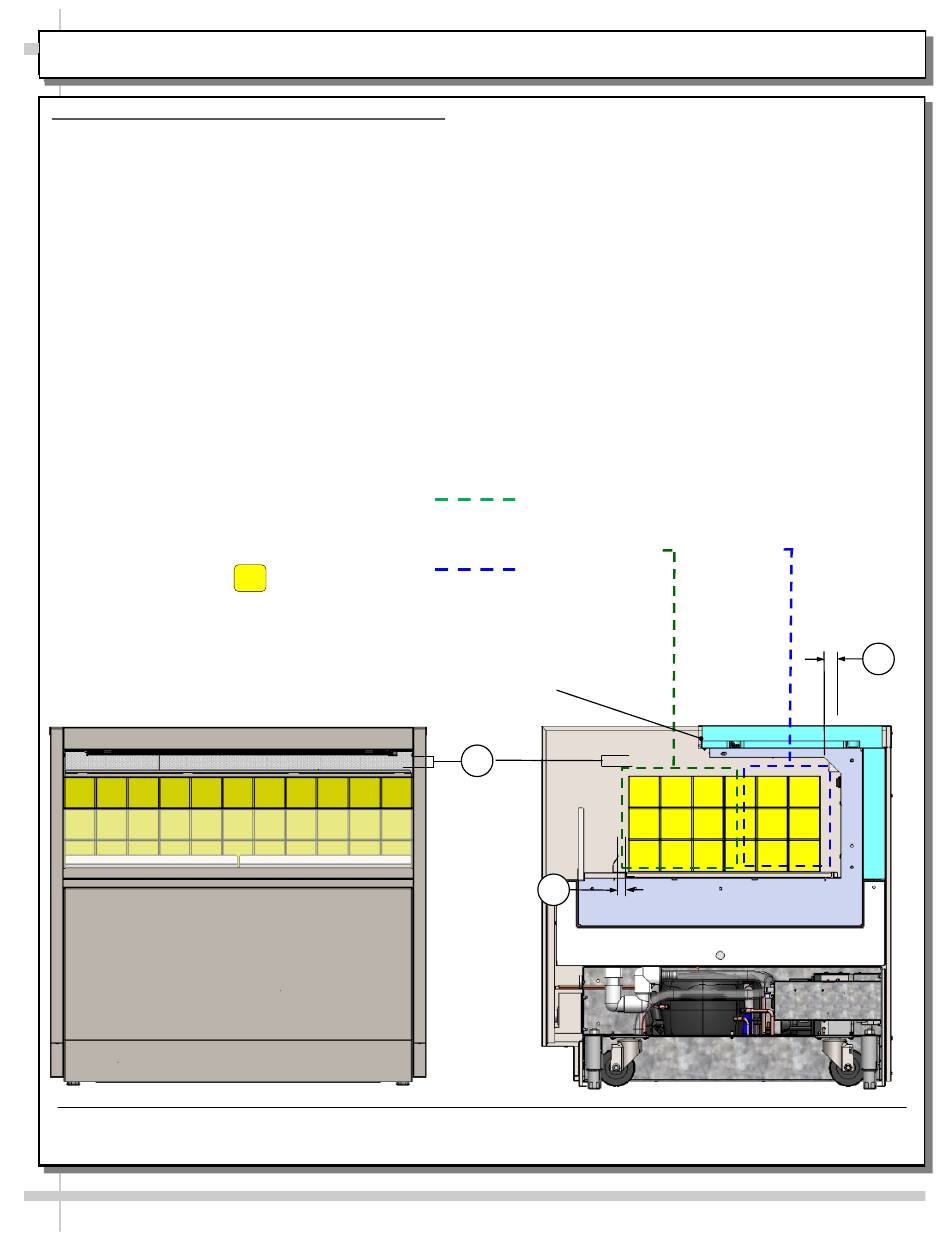

MODEL C33R SHOWN ABOVE. CASE IS PARTIALLY DISASSEMBLED, CROSS SECTIONED
AND PACKAGED PRODUCT LADEN FOR ILLUSTRATIVE PURPOSES ONLY.
2. AT CASE REAR, ALLOW AT LEAST 1" SPACE BETWEEN
PRODUCT AND REAR PERFORATED PLENUM.
3. DO NOT BLOCK 1 1/4" AIR RETURN OPENING WITH PRODUCT.
>> IF YOU ARE UNABLE TO MAINTAIN DESIRED PRODUCT
TEMPERATURES, SEE TROUBLESHOOTING SECTION IN MANUAL.
PRODUCT
TEMPERATURE
37 °F TO 41 °F
RANGE SHOWN
PRODUCT AT
AT RIGHT.
CASE FRONT
HEADER
1
3
8
33 °F To 37 °F
PRODUCT AT
CASE REAR
2
