AIE100-T2NX Series User's Manual

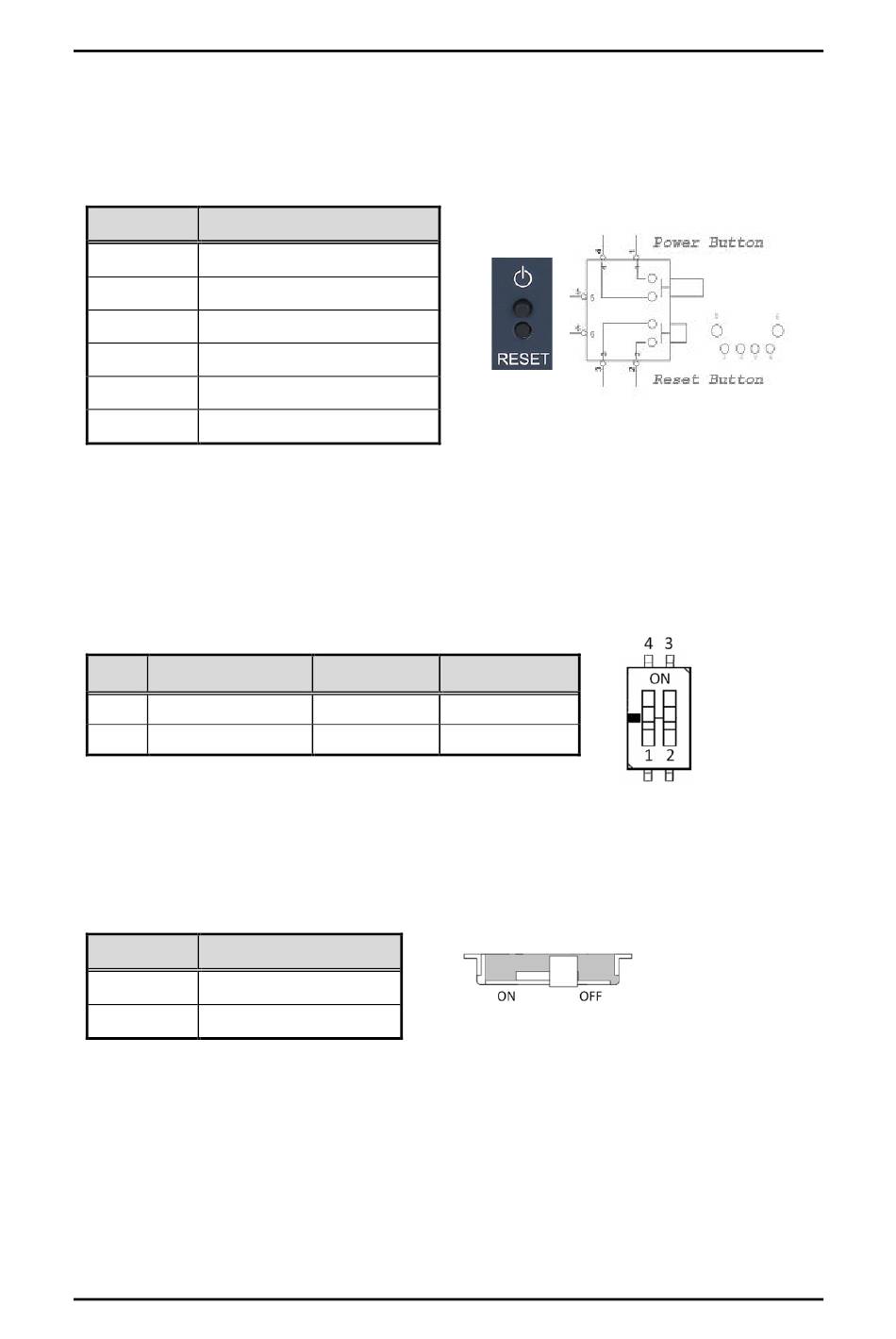

3.2.11 Power Button & Reset Button (SW1)
Power button can allow users to either turn on the AIE100-T2NX or forcibly shut down the
system, and the reset button can allow users to reset AIE100-T2NX during system abnormal
situation.
Pin
1
2
3
4
5
6

3.2.12 AT/ATX Switch (SSW1)

If you turn OFF the Pin1 (AT mode) of SSW1, the system will be automatically power on without
pressing soft power button during power input; we can use this switch to achieve auto power
on demand.
Pin Description
1 AT / ATX Mode
2 NC

3.2.13 Recovery Mode Switch (SSW2)

It will make NVIDIA® Jetson™ TX2 NX force recovery mode when switching SSW2 to ON
before booting up the system.
Pin Signal
ON Recovery Mode
OFF Normal
32
Signal
GND
GND
RST_BTN
PWR_BTN
GND
GND
ON (Default)
ATX
NC
OFF
AT
NC
Jumper setting & connector
