Appendix E. Verifying the FA-10RU Version

E-1. FA-10RU INFORMATION (Front Panel)

Displays the FA-10RU version information and FA-10RU FAN unit status.
- - - F A - 1 0 R U I N F O R M A T I O N - - -
F P G A 1 V e r s i o n : 1 . 0 0
F P G A 2 V e r s i o n : 1 . 0 0
S O F T V e r s i o n : 1 . 0 0
F A N S t a t u s

E-2. Information (Web)

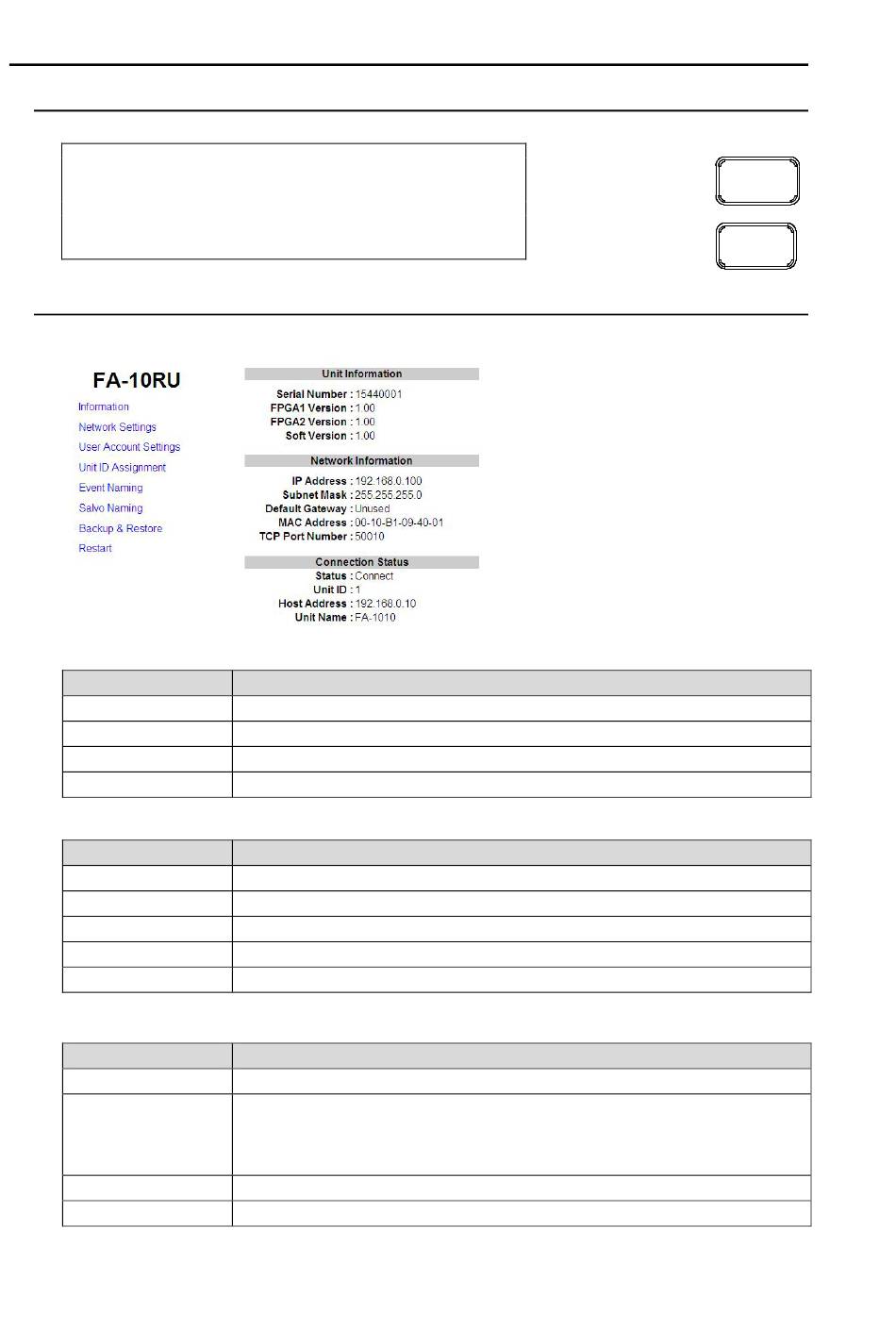

Click Information. The information page as shown below appears.
 Unit Information
Item
Serial Number
FPGA1 Version
FPGA2 Version
Soft Version
 Network Information
Item
IP Address
Subnet Mask
Default Gateway
MAC Address
TCP Port Number
 Connection Status
Item
Status
Unit ID
Host Address
Unit Name
*1 See Sec. 10-4. "Unit ID Assignment" of FA-10RU Operation Manual for details.
*2 See Sec.5-2-2. "Connecting in IP Address Selection Mode" of FA-10RU Operation
Manual for details.
: N o r m a l
Displays the serial number of the FA-10RU.
Displays the version of the FA-10RU FPGA1.
Displays the version of the FA-10RU FPGA2.
Displays the version of the FA-10RU Software.
Displays the IP address of the FA-10RU.
Displays the subnet mask of the FA-10RU.
Displays the gateway of the FA-10RU.
Displays the MAC address of the FA-10RU.
Displays the TCP port number of the FA-10RU.
Displays the status of connection with FA-1010.
Displays the registered ID number if the connected FA-1010 IP address is
registered using Unit ID Assignment
Displays an "IP Address Select" message, if the connection is established
via the IP ADDR SEL menu
Displays the IP address of the connected FA-1010.
Displays the unit name of the connected FA-1010.
P 8 3 3
Description
Description
Description
*1
.
*2
.
