3-2-6. FA-10PS

A

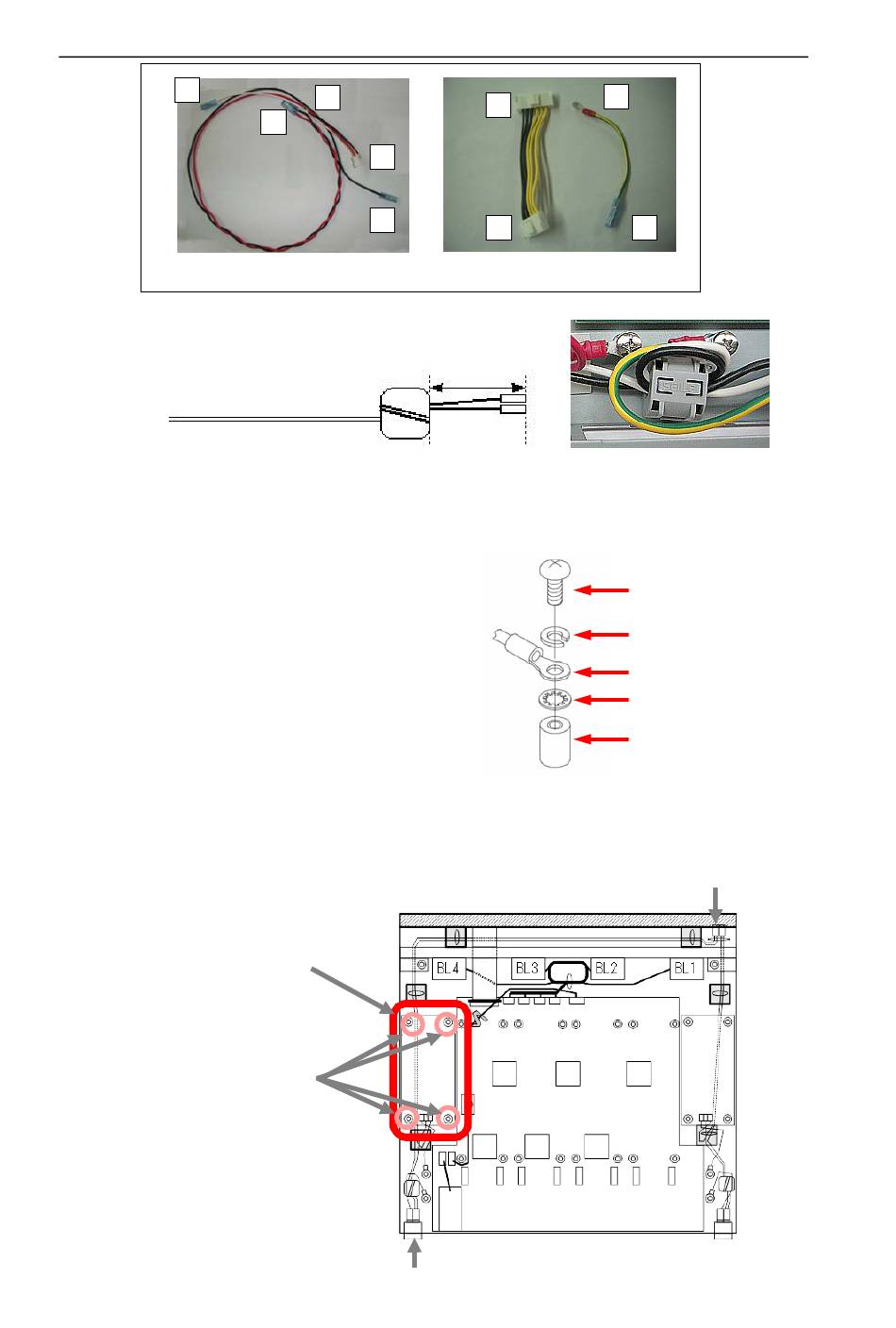

1) Attach the ferrite core to leads A and B of PWA1658-2.
Wrap the white and black cables
together around the ferrite core once.
Cables should be bundles closely
together.
2) Connect leads A, B, and I (grounding terminal) of the cable to the AC inlet.
3) Connect C of the cable to the power switch. (Connect the black cable to the top, and the
red cable to the bottom terminals.)
4) Connect D and H of the cable to bosses. (See
the figure at right)
Boss locations are shown in the figure below.
(Circled)
5) Place the insulation sheet (bottom) on the
chassis in the area shown with thick border
lines in the figure
PWA1658-2 under the insulation sheet.
6) Place the power supply unit on the insulation sheet (bottom) placed in step 7). Then
secure the power supply unit with the supplied studs screwed to the bosses.
7) Secure the (top) insulation sheet over the power supply unit with the supplied 3x6 mm
binding screws.
Wire the PWA1658-2 cable under
the insulation sheet (bottom).
Screw 4 studs into the bosses, then
secure the insulation sheet (top)
over the power supply unit with 3x6
mm binding screws.
D
C
E
B
PWA1658-2
Within 40 mm
below. Place cable
AC inlet
14
H
F
G I
4x8 mm binding screw
M4 spring washer
Cable D or H
M4 toothed lock washer
Boss
Switch
