3-2. Installation Procedure for Each Option

3-2-1. FA-10AES-BL

Nest connectors on the option card into the slot, align screw holes, then secure the card with
the supplied double-SEMS screws. Connect the PWA cable (Fig. 6). Secure the option card
to the rear panel with the binding screws removed under Common Installation/Removal
Procedure.
Connect the PWA 107 connector to CN7.
CN7
CN6
Connect the PWA 106 connector to CN6.

3-2-2. FA-10AES-UBL

Nest connectors on the option card into the slot, align screw holes, then secure the card with
the supplied double-SEMS screws. Connect the PWA cable to CN8 (Fig.7).
Secure the option card to the rear panel with the binding screws removed in Common
Installation/Removal Procedure.
Fasten the PWA with the blue fastening cord, so that
the PWA does not run over switches.
CN8
Bundle cables.
AES CARD

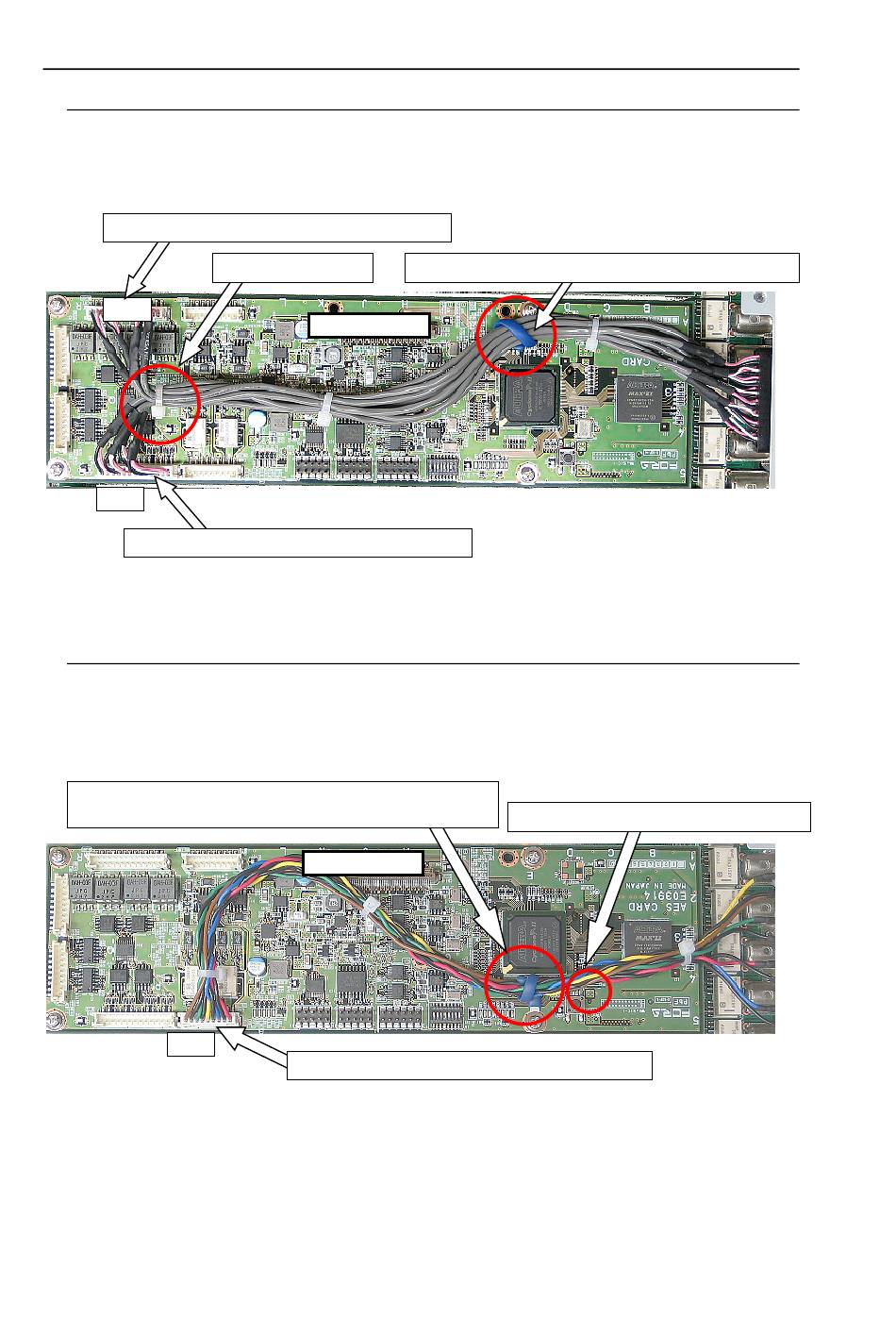

Fig. 6 FA-10AES-BL PWA Wiring
AES CARD
Connect PWA 108 connector to CN8.
Fig. 7 FA-10AES-UBL PWA Wiring
Fasten cables with the blue fastening cord.
Leave the PWA away from switches.
