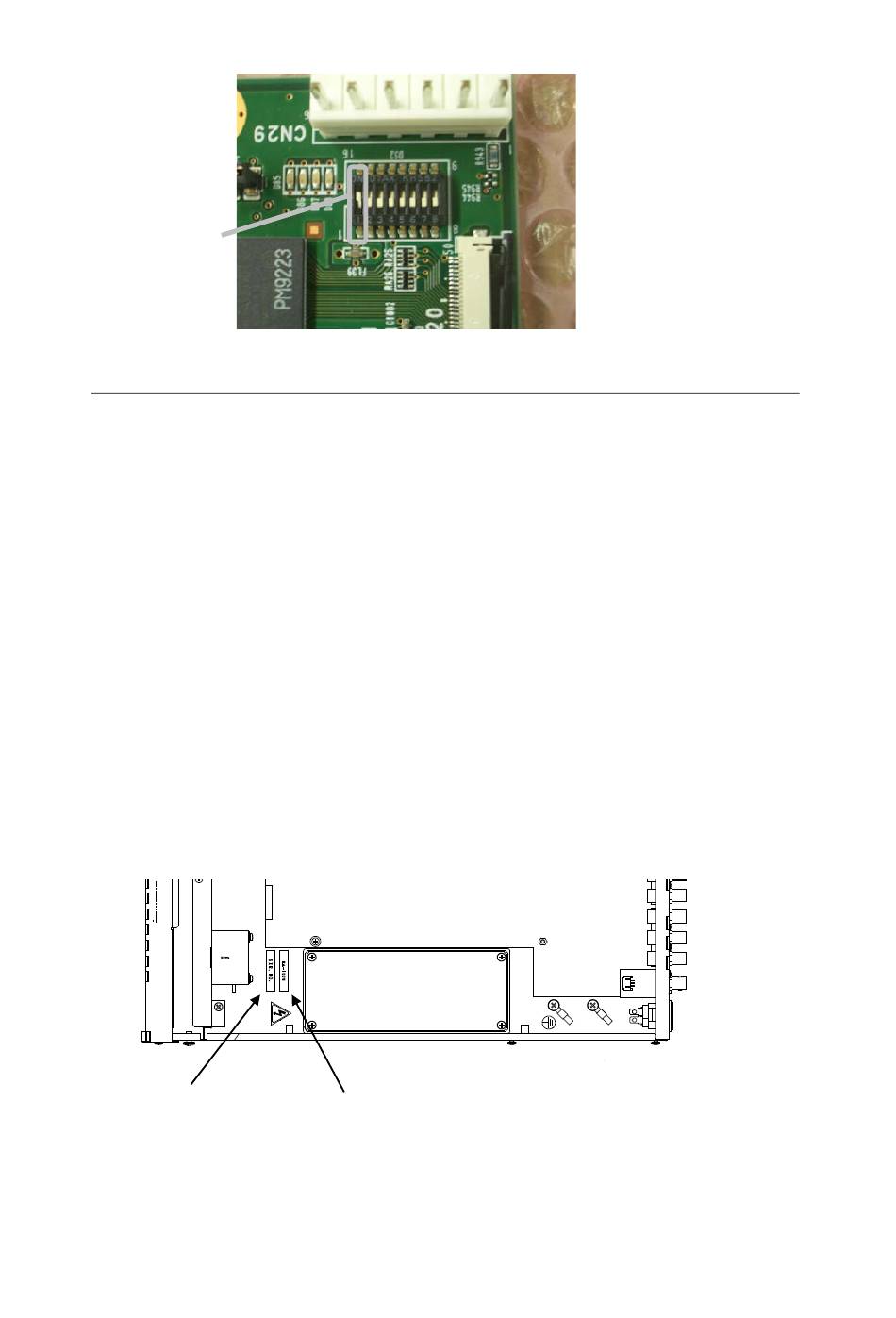

13) Set DS2 (see the above figure) DIP switch 1 to ON.
Push switch 1 up.

3-2-6-1. FA-10PS Verification

1) Connect an AC cord to FA-1010 AC IN 1 and turn the power on.
2) Verify that the DC Power 2 LED on the front panel is lit red.
3) Connect another AC cord to AC IN 2 while the power is on, then verify that the DC
Power 2 LED turns green.
4) Verify the voltage of the installed FA-10PS to be +12V (± 0.2V).
Adjust the voltage if it exceeds the above allowance using the power supply voltage
adjustor VR51.
5) Connect a Windows 7 or 8 PC to the same network with the FA-1010.
Start-up the FA-1010 Windows GUI on the PC. Enter the FA-1010 IP address (default
is 192.168.0.10), then click Connect.
6) Once the connection is established, open the Status tab.
7) Verify that DC Power 2 under "Power Supply Status" is indicated as Normal.
(Abnormal if an AC cord is not connected to AC IN 2.)
8) Attach the Serial No. and Model name stickers as shown below.
Serial No.
9) Close the top panel.
Model name
