FOR-A FA-1010 Update Manual page 15

8) Connect connector E (numbered 401) of cable PWA1658-2 to CN 1 (3-pin) on the power
supply unit.
9) Connect connector F (numbered 451) to CN 4 (8-pin).
10) Connect connector G (numbered 129) to CN 29 (6-pin) on the main card.

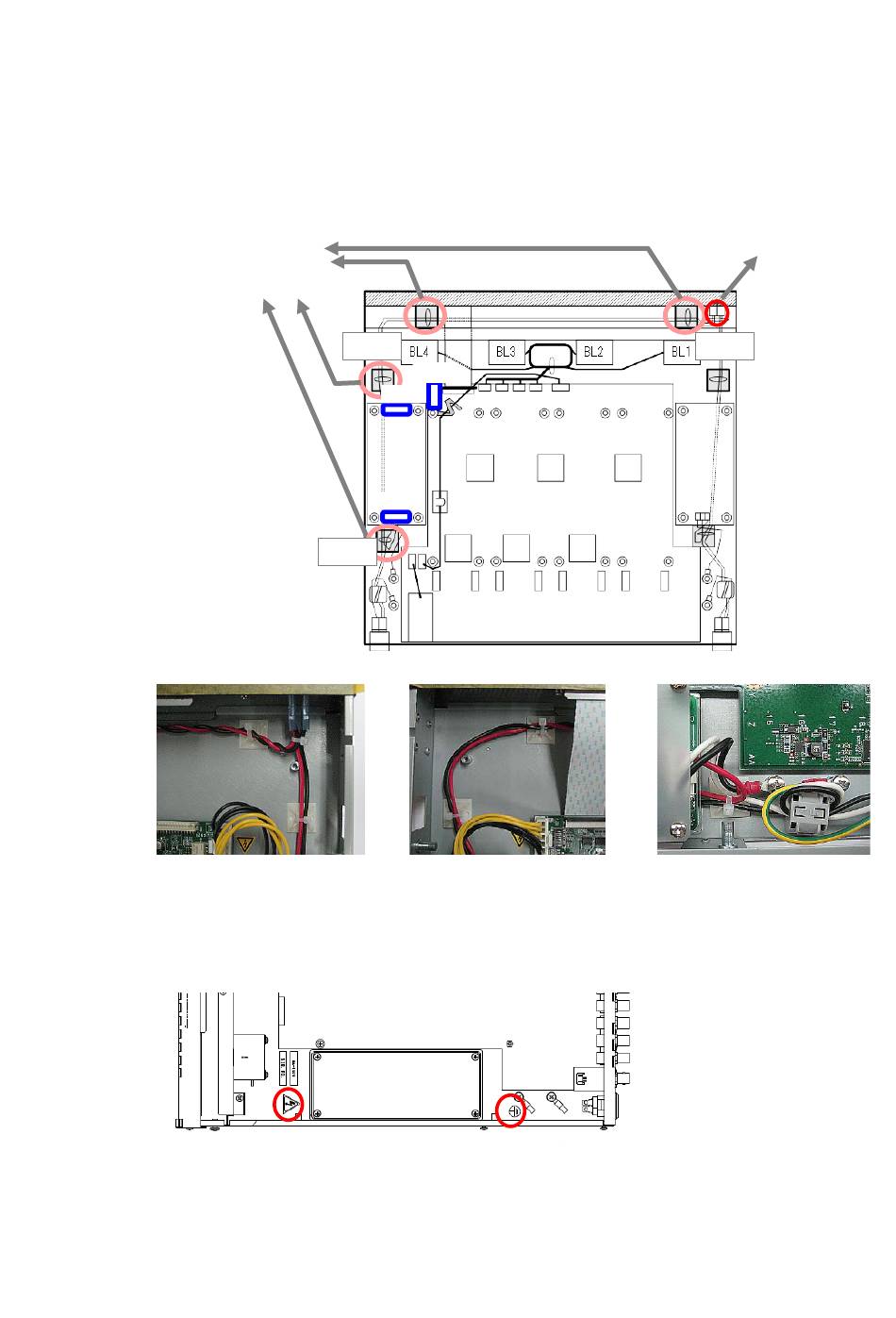

11) Fasten cables using the supplied cable ties and cable tie mounts as shown in the figure
below.
Fasten cable tie mounts
to the chassis and secure
PWA1658-2 cables using
cable ties.
Fig. a
* Fan unit not installed in above figure.
12) Attach the DANGER and grounding stickers as shown below.
Fig. b
CN29
CN4
CN1
Fig. c
Fig. b
Power supply unit
(ZWS100BAF-12)
15
Fasten cables using
a cable tie.
Fig. a
Fig. c
