OPERATION
MANUAL

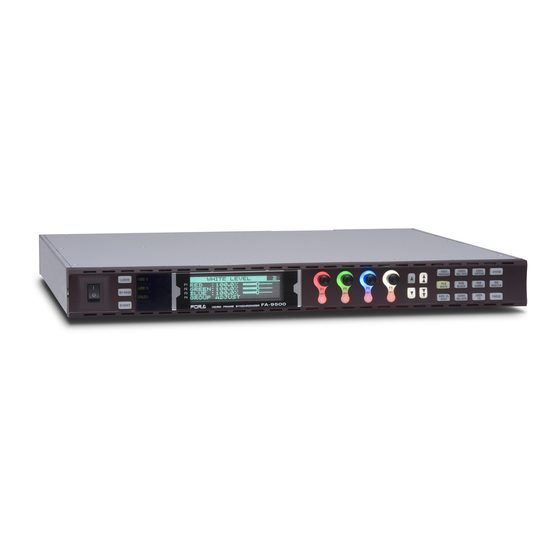

FA-9520
Frame Synchronizer
FA-95PS
FA-95DACBL
FA-95AIO
FA-95CO
FA-95D-D/DE-E
FA-95ALA
FA-95RU
FA-10DCCRU
rd
3
Edition - Rev. 5
SOFT Ver. 2.11 or higher
(FA-9520 Mode)
*
*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FA-9520 and is the answer not in the manual?

Questions and answers

Summary of Contents for FOR-A FA-9520

  • Page 1 OPERATION MANUAL FA-9520 (FA-9520 Mode) Frame Synchronizer FA-95PS FA-95DACBL FA-95AIO FA-95CO FA-95D-D/DE-E FA-95ALA FA-95RU FA-10DCCRU Edition - Rev. 5 SOFT Ver. 2.11 or higher...
  • Page 2 FA-95CO FPGA1: 1.00 FPGA2: 2.00 (1.10 or lower is inoperative in this unit.) FPGA1:1.10 or higher FA-95RU Modified FA-95RU to add FA-9520 support FA-95RU Ver. 6.00 or higher-compatible FPGA2:1.10 or higher Added BY-PASS function to FA-95AIO GPI FPGA3:1.00 or higher Added option slot change warning feature SOFT:2.00 or higher...
  • Page 3 Precautions Important Safety Warnings [Power] Operate unit only on the specified supply voltage. Caution Disconnect power cord by connector only. Do not pull on cable portion. Do not place or drop heavy or sharp-edged objects on power cord. A damaged cord can cause fire or electrical shock hazards.
  • Page 4 [Circuitry Access] Do not remove covers, panels, casing, or access circuitry with power applied to the unit! Turn power off and disconnect power cord prior to removal. Internal servicing / adjustment of unit should only be performed by qualified personnel. Do not touch any parts / circuitry with a high heat factor.
  • Page 5 Upon Receipt Unpacking FA-9520 units and their accessories are fully inspected and adjusted prior to shipment. Operation can be performed immediately upon completing all required connections and operational settings. Check your received items against the packing lists below. FA-9520 ITEM...
  • Page 6 All other trademarks are trademarks or registered trademarks of their respective owners. Rack Mounting FA-9520/RPS can be mounted to EIA standard rack units. When rack mounting a unit, remove the rubber feet and use the accessory rack mount brackets (rack ears).
  • Page 7: Table Of Contents

    Table of Contents 1. Prior to Starting ......................... 15 1-1. Welcome ..........................15 1-2. Features ..........................15 1-3. FA-95LG GUI Download ....................15 2. Panel Descriptions ........................16 2-1. Front Panel ........................16 2-2. Rear Panel ......................... 18 2-3. Internal Settings ........................ 21 2-3-1.
  • Page 8 5-3-6. CONV SIDE RGB ....................... 45 5-4. Auto Video Optimizer (AVO) ..................... 46 5-4-1. AVO SETTING ......................46 5-4-2. AVO SETUP ....................... 47 5-4-2-1. About Scene Cut Detection and Frame Delay Settings ........48 5-4-3. USER1 - 5 LEVEL SET ....................49 5-4-4.
  • Page 9 5-9-15. COMPOSITE SET2 ....................80 5-10. Various Signal Status Display (STATUS) ............... 81 5-10-1. UNIT ALARM......................81 5-10-2. VIDEO IN STATUS ....................82 5-10-3. VIDEO OPTION INPUT ................... 83 5-10-4. VIDEO OUT STATUS ....................84 5-10-5. VIDEO OPTION OUTPUT ..................84 5-10-6.
  • Page 10 6-3. ANALOG AUDIO Settings (ANALOG) ................106 6-3-1. ANALOG IN LEVEL ....................106 6-3-2. ANALOG IN GAIN ....................106 6-3-3. ANALOG OUT LEVEL ..................... 106 6-3-4. ANALOG OUT MONO ..................... 107 6-3-5. ANALOG IN SYSTEM ....................107 6-4. OUTPUT GAIN CONTROL ..................... 108 6-4-1.
  • Page 11 7-1. FS1/FS2 COPY ....................... 141 7-2. MU OPERATION ......................142 7-2-1. Important Note on Changing the Operation Mode ........... 142 7-2-2. FA-9520 Operation Mode Change Procedure ............142 7-3. CONTROL SETTING ...................... 143 7-4. FRONT OPERATION ...................... 143 7-5. FRONT PANEL SET ....................... 143 7-6.
  • Page 12 9-2-5. BY-PASS Setting ..................... 163 9-2-6. Converter ........................164 9-2-7. Color Corrector ......................168 9-2-8. Video Test Signal ..................... 171 9-2-9. YPbPr/RGB Clip ....................... 172 9-2-10. Output Assign ......................173 9-2-11. Composite Clip ....................... 175 9-3. AUDIO Settings ....................... 176 9-3-1.
  • Page 13 16-2. FA-95AIO Switch Settings ..................... 245 17. System Requirements ......................245 18. About SNMP (Simple Network Management Protocol) ............246 19. FA-9520 Ancillary Data Packet Name List ................259 20. About AFD (Active Format Description) ................261 20-1. AFD Codes ........................262 20-2.
  • Page 14 24-2. External Dimensions ..................... 278...
  • Page 15: Prior To Starting

    FOR-A provides a wide range of products, from basic support units to complex system controllers, which have been increasingly joined by products for computer video based systems. Whatever your needs, talk to your FOR-A representative. We will do our best to be of continuing service to you.
  • Page 16: Panel Descriptions

    To enable the disabled buttons and controls, press and hold this button down for several seconds. LOCK button In FA-9520 mode: (FA-9500 mode) Used to select FS1 or FS2. There are linked menus that can be changed simultaneously by pressing the FS1/LOCK and FS2/LOCK FS1/LOCK buttons simultaneously.
  • Page 17 UNITY buttons The Unity buttons return the settings to the default values. Used to move between parameters. Single-arrow buttons (Indicators light up to indicate the accessible direction.) 8 Arrow buttons Used to move between menus (same as the Double-arrow menu buttons). (Indicators light up to indicate the buttons accessible direction.) 9 Menu buttons...
  • Page 18: Rear Panel

    OUT1 OUT2 1 / 2 3 / 4 5 / 6 7 / 8 G ENLOCK IN COMPOSITE DIGITAL AUDIO IN / OUT  FA-9520 with the FA-95PS option installed ANALOG AUDIO REMOTE LAN1 LAN2 FAN1 FAN2 OUT1 OUT2 OUT3...
  • Page 19 The operation status can be viewed from the DC POWER AC IN1 5-10-1 1 menu as described in section 5-10-1 “UNIT ALARM”. (The menu is displayed if the optional FA-95PS is installed.)  FA-9520 with the FA-95DACBL option installed ANALOG AUDIO REMOTE LAN1 LAN2 LAN2...
  • Page 20  FA-9520 with the FA-95D-D/DE-E options installed ANALOG AUDIO REMOTE Dolby E REF IN LAN1 LAN2 FAN1 FAN2 OUT1 OUT2 OUT3 OUT4 OUT1 OUT2 1 / 2 3 / 4 5 / 6 7 / 8 COMPOSITE GENLOCK IN DIGITAL AUDIO IN / OUT...
  • Page 21: Internal Settings

    If the FA-95DACBL is installed in SLOT A: OFF If the FA-95DACBL is installed in SLOT B: ON If the FA-95DACBL is not installed: OFF Do not change. Standard FA-9520: OFF (without FA-95PS) If the FA-95PS is installed: ON Do not change.
  • Page 22: Connections

    3. Connections This section describes the connections and settings for specific usages. The descriptions on the settings are based on the factory default. If you are not sure of your current settings, you can reset the unit to the default setting by selecting DEFAULT in the EVENT LOAD menu described in the section 8-1 “EVENT LOAD”.
  • Page 23: For Hd/Sd-Sdi Simul Output

    3-2. For HD/SD-SDI Simul Output It is possible to always output HD-SDI signal from SDI OUT1/2, and SD-SDI signal from SDI OUT3/4 regardless of whether the input signal is HD or SD-SDI. Input an HD/ Reference signal SD-SDI signal (BB or Tri-level sync signal to SDI IN1.
  • Page 24: To Embed Aes Input Signals On Sdi Signals

    3-3. To Embed AES Input Signals on SDI Signals The following describes how to embed 4 channel AES signals on SDI signals in SDI OUT 1 and 2 output signals Input an HD/ SD-SDI signal to SDI IN1. ANALOG AUDIO REMOTE LAN1 LAN2...
  • Page 25: To Embed Analog Audio Signals On Sdi Signals

    3-4. To Embed Analog Audio Signals on SDI Signals The following describes how to embed a 4- channel analog audio signal on SDI OUT1 and 2 output signals. Input audio signals to ANALOG Input an HD/SD-SDI AUDIO IN1 - 4 channels. signal to SDI IN1.
  • Page 26: Connecting A Computer

     The FA-9520 control window appears on the web browser window.  See section 9-8 “Network Settings” for details on changing the FA-9520’s IP address.  See section 9 “Control via WEB Browser” for details on the FA-9520 web browser control window.
  • Page 27: Connecting To The Remote (Gpi) Connector

    3-6. Connecting to the REMOTE (GPI) Connector Easy control over the FA-9520 from an external device is also possible by connecting the device to the REMOTE connector. Seven ports are provided on the connector. Assign functions to the respective ports to control the FA-9520.
  • Page 28: Front Panel Operation

    Most of the menus can be controlled by these basic operations. However, some menus work differently. See the descriptions given for each menu for details. The FA-9520 has two modes for the menu operation: NORMAL mode, in which setting changes immediately take effect, and LIVE SAFE mode, in which some settings request confirmation before changes take effect.
  • Page 29: Accessing Menus

    4-2-1. Accessing Menus VIDEO IN FAN ALARM PROCESS CONV1 CONV2 POWER PS1/LOCK SDI AUDIO AE S AUDIO ANALOG MAST ER AUDIO IN DC PO W ER DISPLAY A V O CLIP IN SEL OUT SEL PS2/LOCK M OD E MAPPING DELAY DO WNMIX G ENLO CL...
  • Page 30: Menu Buttons

    4-2-2. Menu Buttons The VIDEO/AUDIO button at the bottom right switches between the video and audio-related menus. Pressing the button alternates the button to work as video menu buttons (lit green) and audio menu buttons (lit orange). The menus at the top of each button label are video menus (lit green), and the menus at the bottom are audio menus (lit orange).
  • Page 31 ● When changed in LIVE SAFE mode, single (up and down) arrow buttons and the LED around the control knob of which setting is changed blink confirming the setting change. To set the FA-9520 to LIVE SAFE mode, change the mode setting referring to section 7-4. “FRONT OPERATION”. “● “ is...
  • Page 32: Arrow Buttons

    Button functions are the same as NORMAL mode, however, double-arrow buttons are inoperative while single-arrow buttons are blinking (indicating the FA-9520 is in the setting change confirming state, because a parameter in one of the menus requiring a setting change confirmation has been changed).
  • Page 33: Page Jump Feature

    FA-95DE-E option is installed in option slot A or B. The page jump feature is inoperative while the FA-9520 is in the setting change confirming state. It becomes operable once the change is confirmed. Refer to section 4-2-6. “Changing Setting Values” for details.
  • Page 34: Changing Setting Values

    LEDs stop blinking, then light. While the FA-9520 is in a setting change confirming state, all buttons except single-arrow buttons, control knobs F1 to F4 and their Unity buttons are disabled. To go to other menus,...
  • Page 35: Resetting To Default

    4-2-7. Resetting to Default <NORMAL mode> The UNITY indicator light goes off when the setting value is changed from the default value. Pressing the UNITY button while the light is off returns the corresponding setting value to the default value. Then the light goes off. Pressing the button again returns the value to the previous value before resetting to the default value.
  • Page 36  Example 3: Setting VIDEO PROCESS AMP for FS1 and FS2 simultaneously V I D E O P R O C A M P F S 1 Menu button Lit green Blinking green V I D E O L E V E L 1 0 0 .
  • Page 37: Video Menus

    5. VIDEO Menus Make the menu buttons light up green using the VIDEO/AUDIO button. Menu button (Pressing the button while the buttons are lit orange turns the lights green.) VIDEO Then the menus displayed on the upper row on each menu button can be selected. AUDIO 5-1.
  • Page 38: Black Level

    5-2-2. BLACK LEVEL Menu button B L A C K L E V E L R E D 1 0 0 . 0 % G R E E N : 1 0 0 . 0 % FS1/LOCK FS2/LOCK AES AUDIO B L U E 1 0 0 .
  • Page 39: Color Correct (C.c.)

    WHITE * Settings can be set for FS1 and FS2, separately. *1 SEPIA is unselectable when LINK setting mode is enabled in the FA-9520 or a connected FA-95RU. To select SEPIA, disable LINK setting mode. See section 4-2-8. “Switching Between 2-Channel Frame Synchronizers” for details on LINK settings.
  • Page 40: Color Corrector And Avo Modes

    5-2-5. Color Corrector and AVO Modes Auto Video Optimizer and Color Corrector use the same circuit. The color corrector settings are not fully changeable when AVO mode is set to Auto. (See section 5-4-1 “AVO SETTING”.) Changeable Color Corrector menus according to AVO modes AVO Modes Color Corrector Menus AUTO...
  • Page 41: Conv Mode

    5-3-1. CONV MODE Converts video signals according to the AFD (Active Format Description) data. C O N V M O D E Menu button C O N V : B Y - P A S S A S P E C T : A F D ( 4 : 3 ) CONV1 FS1/LOCK FS2/LOCK...
  • Page 42: Conv Conversion Table

    5-3-2. CONV Conversion Table Possible Conversions in CONV for Input Signal Formats and Mode Selections (Common for FS1 and FS2) CONVERTER mode selection Input signal 1080i 720p 1080PsF 1080p(3G) 525/60 525/60 1080/59i 720/59p 1080/23PsF 1080/59p 1080/59i 1080/59i 525/60 1080/59i 720/59p 1080/59p (BY-PASS) NTSC...
  • Page 43: Conv Cropping

    5-3-4. CONV CROPPING Menu button C O N V C R O P P I N G L E F T 0 P I X E L CONV1 R I G H T 0 P I X E L FS1/LOCK FS2/LOCK T O P 0 L I N E...
  • Page 44: Conv Improve

    5-3-5. CONV IMPROVE Menu button C O N V I M P R O V E M O T I O N : A D A P T I V E CONV1 A N T I A L I A S H : N O R M A L FS1/LOCK FS2/LOCK...
  • Page 45: Conv Side Rgb

    5-3-6. CONV SIDE RGB Menu button C O N V S I D E R G B R E D CONV1 G R E E N : FS1/LOCK FS2/LOCK ANALOG B L U E G R O U P A D J U S T Parameter Default Setting range...
  • Page 46: Auto Video Optimizer (Avo)

    OFF. *1 MODE cannot be set to AUTO or HOLD when LINK setting mode is enabled in the FA-9520 or a connected FA-95RU. To set to AUTO or HOLD, disable LINK setting mode. See sec. 4-2-8. “Switching Between 2-Channel Frame Synchronizers” for details on LINK settings.
  • Page 47: Avo Setup

     Sample Area (Fixed area) Eight available sample areas are as shown below. Data are continuously sampled within each area. (See section 5-4-4 “USER1, 2 AREA SET” for USERAREA 1, and 2.) Sample Sample area Sample area Sample area area FULL SCREEN PILLAR BOX CENTER...
  • Page 48: About Scene Cut Detection And Frame Delay Settings

    5-4-2-1. About Scene Cut Detection and Frame Delay Settings To properly perform AVO scene cut detection and adjustment, the FRAME DELAY must be set in the setting range according to the menu settings (5-9-1 “FS MODE SET” menu) as shown in the table below. FRAME DELAY Setting Range Chart Setting Range per Input Video Format 525/60i...
  • Page 49: User1 - 5 Level Set

    5-4-3. USER1 - 5 LEVEL SET Setting LEVEL of the AVO SETTING menu to one user settings from USER1 through 5 opens the USER1 - 5 LEVEL SET menu. This menu allows you to store five sets of level settings as USER1 –...
  • Page 50 The figures below are luminance histograms of input. (X-axis: Luminance level, Y-axis: Number of pixels) Maximum Minimum value of value of inputs inputs 100% 0% IN BLACK IN WHITE IN BLACK IN WHITE IN BLACK IN WHITE Narrow correction range setting Wide correction range setting TARGET WHITE and TARGET BLACK These two parameters determine the highest and lowest levels of luminance for target images...
  • Page 51 The figures below compare the reference values (dotted line) for output and the actual values after correction (full line). 100% 100% TARGET BLACK TARGET BLACK Large TARGET BLACK setting Small TARGET BLACK setting 100% 100% TARGET WHITE TARGET WHITE Large TARGET WHITE setting Small TARGET WHITE setting Relationship between IN BLACK, IN WHITE and TARGET BLACK, TARGET WHITE levels Input image...
  • Page 52: User1, 2 Area Set

    5-4-4. USER1, 2 AREA SET Selecting USER1 (or 2) AREA for AREA in the AVO SETTING menu opens the USER1, 2 AREA SET menus. Menu button U S E R 1 A R E A S E T S T A R T 0 P I X E L S T A R T 0 L I N E...
  • Page 53: Manual Level Adjustment

    5-4-4-1. Manual Level Adjustment The FA-9520 automatically adjusts the signal level if the MODE of the AVO SETTING menu is set to AUTO (see section 5-4-1). The signal level can also be manually adjusted if the MODE is set to HOLD or OFF.
  • Page 54: Clip (Video Clip)

    5-5. CLIP (VIDEO CLIP) 5-5-1. YPbPr/RGB CLIP Menu button Y P b P r / R G B C L I P C L I P M O D E : O F F CLIP FS1/LOCK FS2/LOCK DELAY Parameter Default Setting range Description OFF,...
  • Page 55: Composite Clip

    5-5-2. COMPOSITE CLIP C O M P O S I T E C L I P Menu button M O D E : C O M P O S I T E C L I P W H I T E : 1 5 0 .
  • Page 56 ③ C White Clip Level Setting range 50 - 111% (Default: 111%) 111% (default) 100% SMPTE 100% color bar when color 700mVp-p.  RGB CLIP To adjust the RGB clipping, select the RGB 300% CLIP under CLIP MODE, and then set RGB White Clip and RGB Black Clip.
  • Page 57: Video Input Select (In Sel)

    5-6. VIDEO INPUT SELECT (IN SEL) Allows you to select input video signals, and select the operation for when signal input is lost. 5-6-1. FS INPUT SELECT I N P U T S E L E C T Menu button F S 1 S E L : S D I 1 F S 2...
  • Page 58: Video Input Set

    5-9-1 “FS MODE SET” is set to LINE or AVDL. In such case, the menu is indicated as “*AUTO FREEZE”.  LOSS Operation If the signal input that is selected under FS INPUT SELECT is lost, the FA-9520 operates in the selected LOSS mode as follows. ...
  • Page 59: Anc Detect Line

    5-6-3. ANC DETECT LINE Allows you to select a line to detect ancillary RP186 VI or BT1119-2 WSS data in input signals.  For RP186 VI Menu button A N C D E T E C T L I N E :...
  • Page 60: Aio A In Mode

    5-6-5. AIO A IN MODE Menu button A I O M O D E M O D E : Y P b P r S M P T E IN SEL DOWNMIX Parameter Default Setting range Description Selects the operation mode for YPbPr SMPTE input video signals in the YPbPr BETACAM...
  • Page 61: Video Out Select (Out Sel)

    5-7. VIDEO OUT SELECT (OUT SEL) Allows you to select output modes and whether to output a signal from FS1 or FS2 for respective video output connectors. 5-7-1. OUTPUT ASSIGN Allows you to assign video signals to output from video output connectors. O U T P U T A S S I G N Menu button...
  • Page 62: Aio A Assign

    5-7-2. AIO A ASSIGN Allows you to assign video signals to output from video output connectors on the FA-95AIO in slot A. Menu button A I O A S S I G N A S S I G N : F S 1 IN SEL M O D E : Y P b P r S M P T E...
  • Page 63: Aio B Assign

    5-7-3. AIO B ASSIGN Allows you to assign video signals to output from video output connectors on the FA-95AIO in slot B. Menu button A I O A S S I G N A S S I G N : F S 1 IN SEL M O D E : Y P b P r S M P T E...
  • Page 64: Anc Data Embed

    5-7-4. ANC DATA EMBED Allows you to set ancillary data insertion into SDI signal ancillary spaces. Menu button A N C D A T A E M B E D A N C : C E A 6 0 8 VIDEO SYS F O R M A T : 5 2 5 / 6 0 AUDIO SYS...
  • Page 65: Anc Embed Line

    5-7-5. ANC EMBED LINE Allows you to select a line of SDI signal ancillary data space to insert closed caption data. Menu button A N C E M B E D L I N E A N C : C E A 6 0 8 VIDEO SYS F O R M A T : 5 2 5 / 6 0 AUDIO SYS...
  • Page 66 Meanwhile, if CEA708 closed caption data is detected in the 1080/59i or 720/59p HD-SDI input signal, and the FS1 and/or FS2 converter output signal format(s) is/are 525/60, the detected closed caption data will be automatically  converted to S334-1 CC and/or CEA608 CC. However, if S334-1 CC and/or CEA608 closed caption insertions are disabled, the data will not be inserted.
  • Page 67: Video Option (Video Op)

    The logo generator allows you to superimpose logos to FA-9520 outputs for each converter. Run the FA-95 LG GUI, which can be downloaded from FOR-A’s website, on a PC to register logos to the FA-9520 via Ethernet. See the FA-95LG GUI Operation Manual (downloaded with the software) for details on logo management.
  • Page 68: Keyer Set

    5-8-1-2. KEYER SET Allows you to set a keyer for FS1 or FS2. Menu button K E Y E R S E T K E Y E R : O F F VIDEO OP L E V E L : 1 0 0 % FS1/LOCK FS2/LOCK AUDIO OP...
  • Page 69: Video System (Video Sys)

    (HD: 74MHz, SD: 27MHz) Does not use a genlock signal. AUTO DET 525/60 625/50 1080/59i Sets a system format for the FA-9520. 1080/50i AUTO AUTO DET: Detects and sets the detected input video SYNC FRMT 720/59p format to the system format.
  • Page 70: Hd Phase Set

    Table of Reference signals and Input formats that can lock Reference signal Input signal 525/60 1080/59i 720/59p 625/50 1080/50i 720/50p 1080/23PsF 1080/24PsF ✓✓✓ ✓✓✓ ✓ ✓ 525/60 ✓✓✓ ✓✓✓ ✓ ✓ 1080/59i ✓✓✓ ✓✓✓ ✓✓✓ ✓ 720/59p ✓✓✓ ✓✓✓ ✓✓✓ ✓...
  • Page 71: Sd Phase Set

    5-9-3. SD PHASE SET Menu button P H A S E S E T P H A S E : 0 C L K P H A S E : 0 L I N E VIDEO SYS FS1/LOCK FS2/LOCK AUDIO SYS Setting range Parameter Default...
  • Page 72: Video Position

    5-9-4. VIDEO POSITION V I D E O P O S I T I O N Menu button P O S : 0 P I X E L P O S : 0 L I N E VIDEO SYS FS1/LOCK FS2/LOCK AUDIO SYS Setting range...
  • Page 73: Freeze Set

    5-9-5. FREEZE SET Allows you to set an operation mode for FREEZE. Menu button F R E E Z E S E T F R E E Z E : O F F VIDEO SYS M O D E : F R A M E FS1/LOCK FS2/LOCK AUDIO SYS...
  • Page 74: Anc Set

    5-9-6. ANC SET Menu button A N C S E T A N C M O D E : H / V A N C A N C : O V E R W R I T E VIDEO SYS FS1/LOCK FS2/LOCK A N C : B L A N K...
  • Page 75: Anc Loss Set

    5-9-7. ANC LOSS SET Allows you to select an operation mode when input AFD data is lost, or unsupported AFD code is input. Menu button A N C L O S S S E T : S 2 0 1 6 - 3 A N C A F D F O R M A T :...
  • Page 76: Wss Afd Error

    5-9-8. WSS AFD ERROR Allows you to select the operation mode when the aspect ratio conversion result is not standardized by WSS, and embedding WSS AFD ancillary data to FS1 and/or 2 is enabled. W S S A F D E R R O R Menu button M O D E : R E M O V E...
  • Page 77: Test Signal

    5-9-10. TEST SIGNAL Internal test signal settings. Video and audio signal processing will stop and a test signal will be output from all output connectors. Menu button T E S T S I G N A L V I D E O : O F F VIDEO SYS A U D I O : O F F FS1/LOCK...
  • Page 78: Aio By-Pass Set

     Conditions for by-passing SDI2 IN-SDI3 OUT circuit The SDI2 IN to SDI3 OUT by-pass circuit is enabled, when FS1 input signal is assigned to SDI2 and SDI 3/4 output is set to FS1, or, when FS2 input signal is assigned to SDI2 and SDI 3/4 output is set to FS2.
  • Page 79: Sd Line Mask

    5-9-13. SD LINE MASK Menu button L I N E M A S K L I N E S E L : L I N E 6 M A S K S E T : P A S S VIDEO SYS FS1/LOCK FS2/LOCK AUDIO SYS...
  • Page 80: Composite Set1

    5-9-14. COMPOSITE SET1 C O M P O S I T E S E T 1 Menu button 0 . 0 〫 P H A S E : C O M B F I L T E R : 3 D VIDEO SYS L E V E L : O F F...
  • Page 81: Various Signal Status Display (Status)

    5-10. Various Signal Status Display (STATUS) 5-10-1. UNIT ALARM U N I T A L A R M 5 0 1 Menu button F A N 1 : N O R M A L F A N 2 : N O R M A L STATUS P O W E R 1 : N O R M A L OTHER...
  • Page 82: Video In Status

    5-10-2. VIDEO IN STATUS V I D E O S T A T U S 5 0 2 Menu button F S 1 ( S D I 1 ) : 1 0 8 0 / 5 9 i F S 1 ( S D I 2 ) : 5 2 5 / 6 0 STATUS C O M P O S I T E : 5 2 5 / 6 0 OTHER...
  • Page 83: Video Option Input

    5-10-3. VIDEO OPTION INPUT This menu is accessible only if the FA-95AIO option is installed in slot A or B. V I D E O O P T I O N I N P U T 5 0 3 Menu button : 5 2 5 / 6 0 M O D E A : Y P b P r...
  • Page 84: Video Out Status

    5-10-4. VIDEO OUT STATUS Displays the status of output video signals. V I D E O O U T S T A T U S 5 1 1 Menu button S D I 1 / 2 : 1 0 8 0 / 5 9 i S D I 3 / 4 :...
  • Page 85: Audio In Detect1

    5-10-6. AUDIO IN DETECT1 A U D I O D E T E C T 1 5 4 1 Menu button E M B 1 ( S D I I N 1 ) C H 1 - 1 6 P P P P N N N N S S S S - - - -...
  • Page 86: Audio Output1

    5-10-8. AUDIO OUTPUT1 A U D I O O U T P U T 1 5 4 6 Menu button S D I 1 / 2 ( E M B 1 ) C H 1 - 1 6 P P P P N N N N S S S S - - - -...
  • Page 87: Emb 1 In Audio

    5-10-10. EMB 1 IN AUDIO E M B 1 A U D I O 5 5 1 Menu button 1 : L O S S 2 : L O S S STATUS 3 : L O S S OTHER 4 : L O S S E M B 1 A U D I O 5 5 2...
  • Page 88: Emb 2 In Audio

    5-10-11. EMB 2 IN AUDIO E M B 2 A U D I O 5 5 5 Menu button 1 : L O S S 2 : L O S S STATUS 3 : L O S S OTHER 4 : L O S S E M B 2 A U D I O 5 5 6...
  • Page 89: Aes In Audio

    5-10-12. AES IN AUDIO A E S A U D I O 5 5 9 Menu button 1 : L O S S 2 : L O S S STATUS 3 : L O S S OTHER 4 : L O S S A E S A U D I O 5 6 0...
  • Page 90: Sdi 1/2 Out Audio

    5-10-14. SDI 1/2 OUT AUDIO S D I 1 / 2 O U T A U D I O 5 7 1 Menu button 1 : P C M 2 : P C M STATUS 3 : P C M OTHER 4 : P C M S D I 1 / 2...
  • Page 91: Sdi 3/4 Out Audio

    5-10-15. SDI 3/4 OUT AUDIO S D I 3 / 4 O U T A U D I O 5 7 5 Menu button 1 : P C M 2 : P C M STATUS 3 : P C M OTHER 4 : P C M S D I 3 / 4...
  • Page 92: Analog Out Audio

    5-10-17. ANALOG OUT AUDIO A N A L O G O U T A U D I O 5 8 9 Menu button 1 : S I L E N C E 2 : S I L E N C E STATUS 3 : S I L E N C E OTHER...
  • Page 93: Dolby Opb Aux

    5-10-19. Dolby OPB AUX * This menu is displayed only if FA-95D-D option is installed in option slot B. D o l b y O P B A U X 5 9 6 Menu button I N P U T B : L O S S O U T P U T B : N O N E...
  • Page 94: Afd In Status

    5-10-20. AFD IN STATUS Displays the state of FS1/FS2 AFD detection.  When detecting AFD in input S2016-3 Menu button A F D 1 S T A T U S 6 0 1 D E T E C T : S 2 0 1 6 - 3 STATUS FS1/LOCK FS2/LOCK...
  • Page 95: Anc1 In Status 1-2

    Displays the ancillary data name, such as S334-1CDP(708), if the DID and SDID of the ancillary data match that of supported formats. See section 19. “FA-9520 Ancillary Data Packet Name List” for details on ancillary data names, and DID and SDID of formats.
  • Page 96: Out

    5-10-25. VI OUT Displays whether the RP186 VI ancillary data is inserted into FS1/FS2 output video signals.  When no RP186 VI is in the output video signal O U T 6 4 7 Menu button R P 1 8 6 V I : A B S E N T STATUS FS1/LOCK...
  • Page 97: Anc Out1

    Displays the ancillary data packet name and line number for the inserted ancillary data in the FS1/FS2 output signals. The status of up to 4 ancillary data can be displayed. See section 19. “FA-9520 Ancillary Data Packet Name List” for details on ancillary data names.
  • Page 98: Audio Settings

    6. AUDIO Settings Make the menu buttons light up orange using the VIDEO/AUDIO button. Menu button (Pressing the button while the buttons are lit green turns the lights orange.) VIDEO Afterwards, the audio menus displayed on the lower row on each menu button AUDIO can be selected.
  • Page 99: Emb1 In Set

    *1 Embedded audio signal groups are automatically phase-adjusted when they are input to the FA-9520. If there is an abnormal audio signal in an audio group, whether the audio group is in use or not, audio streams may be obstructed by the auto phase adjustment. In such cases, audio stream obstruction can be avoided using this Alignment enable/disable function.
  • Page 100: Emb1 Out Clock

    6-1-4. EMB1 OUT CLOCK E M B 1 O U T C L O C K 1 0 4 Menu button G R O U P 1 : R E F E R E N C E G R O U P 2 : R E F E R E N C E PROCESS G R O U P 3 : R E F E R E N C E SDI AUDIO...
  • Page 101: Emb2 In Gain

    6-1-5. EMB2 IN GAIN Menu button E M B 2 G A I N 1 0 5 S E L : C H 1 PROCESS G A I N S E T : 0 . 0 d B SDI AUDIO M A S T E R 0 .
  • Page 102: Emb2 In Set

    *1 Embedded audio signal groups are automatically phase-adjusted when they are input to the FA-9520. If there is an abnormal audio signal in an audio group, whether the audio group is in use or not, audio streams may be obstructed by the auto phase adjustment. In such cases, audio stream obstruction can be avoided using this Alignment enable/disable function.
  • Page 103: Emb2 Audio Clock

    6-1-8. EMB2 AUDIO CLOCK E M B 2 A U D I O C L O C K 1 0 8 Menu button G R O U P 1 : R E F E R E N C E G R O U P 2 : R E F E R E N C E PROCESS G R O U P 3 : R E F E R E N C E SDI AUDIO...
  • Page 104: Aes Audio Settings (Aes Audio)

    6-2. AES AUDIO Settings (AES AUDIO) Allows you to set the DIGITAL AUDIO IN/OUT settings. 6-2-1. AES IN GAIN A E S G A I N 1 1 1 Menu button S E L : C H 1 G A I N S E T : 0 .
  • Page 105: Aes Out Mono

    6-2-3. AES OUT MONO Menu button A E S O U T M O N O 1 1 3 S E L : C H 1 / 2 M O N O S U M : D I S A B L E AES AUDIO Parameter Default...
  • Page 106: Analog Audio Settings (Analog)

    6-3. ANALOG AUDIO Settings (ANALOG) 6-3-1. ANALOG IN LEVEL A N A L O G L E V E L 1 2 1 Menu button S E L : C H 1 L E V E L S E T : + 4 d B m CONV1 ANALOG...
  • Page 107: Analog Out Mono

    6-3-4. ANALOG OUT MONO A N A L O G O U T M O N O 1 2 4 Menu button S E L : C H 1 / 2 M O N O S U M : D I S A B L E CONV1 ANALOG Parameter...
  • Page 108: Output Gain Control

    6-4. OUTPUT GAIN CONTROL Allows you to adjust audio signal output gain. 6-4-1. MASTER OUT GAIN M A S T E R O U T G A I N 1 3 1 Menu button G A I N S E T : 0 . 0 d B M U T E : O F F CONV2...
  • Page 109: Emb2 Out Gain

    6-4-3. EMB2 OUT GAIN E M B 2 O U T G A I N 1 3 3 Menu button S E L : C H G A I N S E T : 0 . 0 d B CONV2 M A S T E R : 0 .
  • Page 110: Analog Out Gain

    6-4-5. ANALOG OUT GAIN Menu button A N A L O G O U T G A I N 1 3 5 S E L : C H CONV1 G A I N S E T : 0 . 0 d B ANALOG M A S T E R : 0 .
  • Page 111: Audio Mapping (Mapping)

    *7 Not shown if the FA-95ALA option is not installed in option slot B.  Auto Channel Pairing for NON-PCM Audio Inputs The FA-9520 recognizes NON-PCM audio input signals in L/R channel pair units, and adjusts assignments according to the signal selected for the L channel.
  • Page 112: Emb2 Out Remap

    *7 Not shown if the FA-95ALA option is not installed in option slot B.  Auto Channel Pairing for NON-PCM Audio Inputs The FA-9520 recognizes NON-PCM audio input signals in L/R channel pair units, and adjusts assignments according to the signal selected for the L channel.
  • Page 113: Aes Out Remap

    *7 Not shown if the FA-95ALA option is not installed in option slot B.  Auto Channel Pairing for NON-PCM Audio Inputs The FA-9520 recognizes NON-PCM audio input signals in L/R channel pair units, and adjusts assignments according to the signal selected for the L channel.
  • Page 114: Analog Out Remap

    6-5-4. ANALOG OUT REMAP Menu button A N A L O G O U T R E M A P 1 4 4 S E L : C H 1 CONV1 A S S I G N : A N A L O G C H 1 ANALOG Parameter...
  • Page 115: Audio Delay Settings

    6-6. AUDIO DELAY Settings 6-6-1. EMB1 IN DELAY Menu button E M B 1 D E L A Y 1 5 1 S E L : C H 1 CLIP O F F S E T : 0 m s DELAY M A S T E R : 4 m s...
  • Page 116: Analog In Delay

    6-6-4. ANALOG IN DELAY Menu button A N A L O G D E L A Y 1 5 4 S E L : C H 1 CLIP O F F S E T : 0 m s DELAY M A S T E R : 4 m s T O T A L 4 m s...
  • Page 117: Down Mix1 Set

    6-7. DOWN MIX1 SET D O W N M I X 1 S E T 1 6 1 Menu button M O D E : S T E R E O IN SEL S U R R O U N D M I X : - 3 d B C E N T E R...
  • Page 118: Down Mix1 Assign

    6-7-1. DOWN MIX1 ASSIGN Menu button D O W N M I X 1 A S S I G N 1 6 2 S E L : L E F T IN SEL A S S I G N : L E F T : E M B 1 C H 1 DOWNMIX Setting range...
  • Page 119: Down Mix2 Set

    6-8. DOWN MIX2 SET D O W N M I X 2 S E T 1 6 3 Menu button M O D E : S T E R E O IN SEL S U R R O U N D M I X : - 3 d B C E N T E R...
  • Page 120: Down Mix2 Assign

    6-8-1. DOWN MIX2 ASSIGN Menu button D O W N M I X 2 A S S I G N 1 6 4 S E L : L E F T IN SEL A S S I G N : L E F T : E M B 2 C H 1 DOWNMIX Setting range...
  • Page 121: Audio Mode Set (Mode)

    6-9. AUDIO MODE SET (MODE) 6-9-1. EMB1 SRC MODE E M B 1 S R C M O D E 1 7 1 Menu button S E L : C H 1 / 2 S R C M O D E : S R C OUT SEL MODE Parameter...
  • Page 122: Aes Src Mode

    6-9-3. AES SRC MODE A E S S R C M O D E 1 7 3 Menu button S E L : C H 1 / 2 S R C M O D E : S R C OUT SEL MODE Parameter Default...
  • Page 123: Aes Polarity

    6-9-6. AES POLARITY Menu button A E S P O L A R I T Y 1 7 6 : C H 1 S E L OUT SEL P O L A R I T Y : N O R M A L MODE Parameter Default...
  • Page 124: Dolby A Polarity

    6-9-8. Dolby A POLARITY * This menu is accessible only if the FA-95D-D or FA-95DE-E is installed in option slot A. Menu button D o l b y A P O L A R I T Y 1 7 8 S E L : D E C C H 1...
  • Page 125: Audio Option (Audio Op)

    6-10. AUDIO OPTION (AUDIO OP) 6-10-1. FA-95D-D / FA-95DE-E 6-10-1-1. Dolby AUX OUT This menu is displayed only if the FA-95D-D or FA-95DE-E option is installed in slot A. D o l b y A U X O U T 1 8 1 Menu button O U T P U T : D E C...
  • Page 126: Dolby Dec In

    6-10-1-2. Dolby DEC IN * This menu is displayed only if the FA-95D-D or FA-95DE-E option is installed in slot A. D o l b y D E C 1 8 2 Menu button I N P U T : A U X S T R E A M : L O S S VIDEO OP P R O G R A M : L O S S...
  • Page 127: Dolby Decoder Reference

    6-10-1-3. Dolby DECODER REFERENCE This menu is displayed only if the FA-95D-D or FA-95DE-E option is installed in slot A. D o l b y D E C R E F 1 8 3 Menu button I N P U T : N O N E VIDEO OP AUDIO OP...
  • Page 128: Dolby Decoder Gain

    6-10-1-5. Dolby DECODER GAIN This menu is displayed only if the FA-95D-D or FA-95DE-E option is installed in slot A. D o l b y D E C G A I N 1 8 5 Menu button S E L : D E C C H 1 G A I N...
  • Page 129: Dolby Encoder Input

    DIRECT IN SEL DIRECT DIRECT IN SEL: SOURCE channel INPUT IN SEL signals of the FA-9520. Dolby DEC OUT Dolby DEC OUT: Output signal from the Dolby decoder Selects a channel to which to assign a CH SEL CH 1 CH 1-8 signal.
  • Page 130: Dolby Encoder Setting

    6-10-1-7. Dolby ENCODER SETTING This menu is displayed only if FA-95DE-E option is installed in option slot A. D o l b y E N C S E T 1 8 7 Menu button P R O G R A M 5 .
  • Page 131: Metadata Input

    6-10-1-8. METADATA INPUT This menu is displayed only if FA-95DE-E option is installed in option slot A. M E T A D A T A I N P U T 1 8 8 Menu button S E L E C T I N T E R N A L VIDEO OP AUDIO OP...
  • Page 132: Automatic Loudness Adjustment (Fa-95Ala)

    6-10-2. Automatic Loudness Adjustment (FA-95ALA) Automatic Loudness Adjustment is the function that measures and automatically adjusts the input audio signal loudness level to the target level. The FA-95ALA in one option slot can measure and adjust the loudness level of 2 signals (monaural, stereo, or 5.1 ch selectable) simultaneously.
  • Page 133: Loudness Control Enable

    IMPORTANT Measurement and adjustment can be performed for up to 6:59:59 (6 hr 59 min 59 sec). If measurement continues for the maximum duration, the elapsed time display restarts from 0:00:00. 6-10-2-2. LOUDNESS CONTROL ENABLE ∙ When installed in option slot A (Channel -1) Menu button L O U D C T R L...
  • Page 134: Loudness Control Settings

    6-10-2-3. LOUDNESS CONTROL SETTINGS ∙ When installed in option slot A (Channel -1) Menu button L O U D C T R L S E T 1 A 2 1 3 T A R G E T : - 2 4 . 0 + 0 . 0 L U VIDEO OP M I N G A I N : - 2 0 .
  • Page 135: Loudness Channel Assignment

    6-10-2-4. LOUDNESS CHANNEL ASSIGNMENT ∙ When installed in option slot A (Channel -1) L O U D A S G N 1 A 2 1 4 Menu button M O D E : S T E R E O VIDEO OP : E M B 1 : E M B 1 AUDIO OP...
  • Page 136: Loudness Standard

    6-10-2-5. LOUDNESS STANDARD Settings in this menu are common for the FA-95ALA in option slot A (channels 1 and 2) and in option slot B (channels 1 and 2). L O U D S T A N D A R D 2 8 0 S T A N D A R D : A R I B...
  • Page 137: Audio System Settings (Audio Sys)

    6-11. AUDIO SYSTEM Settings (AUDIO SYS) Allows you to set basic settings on the audio system. 6-11-1. FADE IN / OUT Menu button F A D E I N / O U T 2 8 1 F A D E M O D E : D I S A B L E VIDEO SYS F A D E...
  • Page 138: Digital Audio

    6-11-2. DIGITAL AUDIO D I G I T A L A U D I O 2 8 2 Menu button R E F L E V E L : - 2 0 d B F S G R A D E : P R O F E S S I O N A L VIDEO SYS R E S O L U T I O N : 2 4 b i t AUDIO SYS...
  • Page 139  VALIDITY The FA-9520 determines whether the input audio signal is PCM or not using Validity Bits (V Bit) in audio signal. If Validity Bit (V Bit) is incorrect the audio signal may cause improper processing. This setting may effective processing such audio signals with incorrect Validity Bits properly.
  • Page 140: Digital Silence

    6-11-4. DIGITAL SILENCE Menu button D I G I T A L S I L E N C E 2 8 4 S I L E N C E T I M E : 2 s e c VIDEO SYS S I L E N C E L V L : - 7 2 d B F S...
  • Page 141: Other Settings & Information (Other)

    7. Other Settings & Information (OTHER) Allows you to set other settings other than video and audio settings. Also, information on the various versions and installation states of FA-9520 option items can be viewed. 7-1. FS1/FS2 COPY Menu button F S 1 / F S 2...
  • Page 142: Mu Operation

    (The operation mode cannot be changed by rebooting the unit if the menu is displaying one that is different from the “MU OPERATION” menu.) 5.To control the FA-9520 via remote control interfaces such as an SNMP manager, be sure to download the MIB file for the correct operation mode.
  • Page 143: Control Setting

    7-3. CONTROL SETTING C O N T R O L S E T T I N G 2 9 3 Menu button C O N T R O L : L O C A L STATUS OTHER Parameter Default Setting range Description LOCAL: Disables control from FA-95RU / FA-10DCCRU.
  • Page 144: Gpi Setting

    7-6. GPI SETTING G P I S E T T I N G 2 9 6 Menu button G P I 1 - 7 S E L : G P I 1 I N / O U T S E L : I N P U T STATUS A S S I G N : N O N E OTHER...
  • Page 145 1 through 256. In the following cases, the logo will not be inserted to the FS output signals, although data will be loaded to the FA-9520. - No logo is registered under the selected Logo ID.
  • Page 146 Sets BY-PASS ON/OFF for FA-95AIO I/O in slots A&B. BY-PASS(OP A) *1*3 Level Shorted to GND: BY-PASS ON *1*4 BY-PASS(OP B) OPEN: BY-PASS OFF *1 The BY-PASS that is displayed as disabled in the BY-PASS SETTING menu (sec. 5-9-11) will not turn on by setting the above to ON.
  • Page 147: Network Info

    Displays the FPGA1 version information. FPGA2 Displays the FPGA2 version information. FPGA3 Displays the FPGA3 version information. Displays the FA-9520 operation mode software version information. (First 4 digits) SOFT Displays the FA-9500 operation mode software version information. (Last 4 digits)
  • Page 148: Option A Ver

    7-9. OPTION A Ver. Menu button O P T I O N V e r . 2 9 9 N A M E : N O N E STATUS F P G A 1 : - - . - - OTHER F P G A 2 : - - .
  • Page 149: Other Option

    7-11. OTHER OPTION Menu button O T H E R O P T I O N 3 0 1 F A - 9 5 P S : I N S T A L L E D STATUS OTHER Parameter Default Setting range Description INSTALLED: FA-95PS option is installed.
  • Page 150: Event Memory

    8. Event Memory The FA-9520 can store 100 event memories, as well as sets of settings, each of which are stored for each format. Every press of the EVENT button alternates the menus: EVENT LOAD (lit green), EVENT SAVE (lit red),and EVENT SETUP(lit orange).
  • Page 151: Event Save

    Do not power off the unit while saving an event. The event may not be properly stored. Also, the FA-9520 regularly updates the setting data. Do not turn off the unit for at least 5 seconds after changing settings. It is recommended to save important data into a backup file.
  • Page 152: Control Via Web Browser

    9. Control via WEB Browser This section describes how to control the FA-9520 from a computer via a web browser. See section 3-5 “Connecting a Computer” for details on connecting with a computer. Do not open pop-up setting dialogs at the same time. Doing so may disable operation.
  • Page 153: Video Settings

    9-2. VIDEO Settings Click Click the Video tab at the top of the page. The video block diagram will be displayed. Each block in the diagram lets you to go to the corresponding windows or dialog boxes that allow you to change various settings. Video Block Diagram (1) (2) (13)
  • Page 154: Fs Input Select

    9-2-1. FS Input Select Clicking block (1) on the Video block diagram opens the FS Input Select dialog box. Select setting values for parameters in the respective pull-down menus. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings.
  • Page 155: Auto Video Optimizer (Avo)

    <Video Loss Mode> Video Loss Mode allows you to select what to output when the input signal selected under Input is lost.  Back Color Displays a screen in a color selected under Back Color.  Auto Freeze Freezes the last image before loss of signal. Freezes progressive signals such as 720p in frame freeze mode and other signals in field freeze mode.
  • Page 156 9-2-7 “Color Corrector” for details. * AVO Control Mode cannot be changed from Off when LINK setting mode is enabled in the FA-9520 or a connected FA-95RU. To set to Auto or Hold, disable LINK setting mode. See sec. 4-2-8. “Switching Between 2-Channel Frame Synchronizers”...
  • Page 157: About Scene Cut Detection And Frame Delay Settings

     AVO Setup Setting Parameter Default Description range Sets the filtering strength for calculating the mean distances that are applied to histograms created using the sample data. Response Level 1 - The larger the value, the more gradually Level 3 Level 5 (Filtering strength) filtering is performed, with a more stable...
  • Page 158: User 1 - 5 Level Set

    9-2-2-2. User 1 - 5 LEVEL SET Clicking Set User on the Auto Video Optimizer dialog box opens the User1 - 5 setting dialog box. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. Click Unity to reset to the default settings.
  • Page 159  In White Level and In Black Level These two parameters determine the highest and lowest levels of luminance in the input signal. Setting range Parameter Description (step) The maximum value of luminance in the sample data is defined as 100%. Based on this reference value, this determines the highest level of luminance for level control.
  • Page 160: User Area 1, 2

    9-2-2-3. User Area 1, 2 Clicking Set Area of Sample Area on the AVO setting dialog box opens the User Area 1, 2 Setting dialog box. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. Click Unity to reset to the default settings.
  • Page 161: Frame Delay

    9-2-3. Frame Delay Clicking block (3) in the Video block diagram opens the Frame Delay setting dialog box for the corresponding FS. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. Click Unity to reset to the default settings. Click to increase the value by the smallest steps.
  • Page 162: Proc Amp

    9-2-4. Proc Amp Clicking block (3) on the video block diagram opens the Proc Amp setting dialog box for the corresponding FS. FS1 Proc Amp Window FS2 Proc Amp Window After completing the settings, click Close to close the dialog box. Click Refresh to update the settings.
  • Page 163: By-Pass Setting

    9-2-5. BY-PASS Setting Clicking block (5) on the video block diagram opens the BY-PASS setting dialog box. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings.  Operate BY-PASS Parameter Default Setting range Description Setting to On bypasses SDI1 input signals to SDI1 In-SDI1 Out...
  • Page 164: Converter

    9-2-6. Converter Clicking block (6) on the video block diagram opens the Up Down Cross Converter setting dialog box for the corresponding FS. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. Click Unity to reset to the default settings.
  • Page 165  Aspect Ratio Parameter Default Setting range Description AFD(4:3) Selectable aspect ratio settings when Converter AFD-ALT(4:3) Process Mode is set to SD. AFD(16:9) AFD(4:3), AFD-ALT(4:3), AFD(16:9), AFD-ALT(16:9) AFD-ALT(16:9) automatically select an aspect 4:3 L 16:9 T ratio according to the AFD data in the input 4:3 L 14:9 T signal.
  • Page 166  Antialias Setting range Parameter Default Description (Steps) Performs horizontal anti-aliasing for the output video image. Weak 8-1 Weak 8 to Strong 8 (low to high) Horizontal Normal Normal This setting cannot be changed if the Strong1-8 conversion is set to the formats indicated as (BYPASS) in the CONV Conversion Table in section 5-3-2.
  • Page 167  Converter, Crop Parameter Default Setting range (Steps) Description Variable H Left 0 Pixel Crops the left side of the video. (2 Pixel) Variable H Right 0 Pixel Crops the right side of the video. (2 Pixel) Variable V Top 0 Line Crops the top of the video.
  • Page 168: Color Corrector

    Auto Video Optimizer (AVO) menu (9-2-2). Correction Mode cannot be set to Sepia, if LINK setting mode is enabled in the FA-9520 or connected FA-95RU. To set to Sepia, disable LINK setting mode. See section 4-2-8. “Switching Between 2-Channel Frame Synchronizers” for...
  • Page 169  White Level Setting range Parameter Default Description (Steps) R, G, B 0.0 - 200.0% Adjusts the white level of R, G, and B 100.0% (RGB White Level) (0.5%) components separately. Enables you to adjust white level R, G, and B components simultaneously, retaining Group Adjust separately adjusted R, G, and B proportion,...
  • Page 170  FS1<->FS2 Copying The FS1->FS2 button (in the FS1 Color Corrector dialog box) next to Correction Mode allows you to copy the Correction Mode setting of FS1 to FS2. A confirmation dialog as shown below appears. Click OK to copy the FS1 Correction Mode setting to FS2. Click Cancel to stop copying.
  • Page 171: Video Test Signal

    9-2-8. Video Test Signal Clicking block (8) on the video block diagram opens the Video Test Signal setting dialog box for the corresponding FS. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. Parameter Default Setting range...
  • Page 172: Ypbpr/Rgb Clip

    9-2-9. YPbPr/RGB Clip Clicking block (10) on the video block diagram opens the YPbPr/RGB setting dialog box. See section 5-5-3 “VIDEO CLIPSetting range” for details. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. Click Unity to reset to the default settings.
  • Page 173: Output Assign

    9-2-10. Output Assign Clicking block (11) on the video block diagram opens the Video Output Setting dialog box.  Output Assign Allows you to assign video signals to output from video output connectors. Parameter Default Setting range Description Selects FS1 or FS2 of which signal to be output from SDI1 and 2 connectors.
  • Page 174 Composite Output Format Table CONV1 and 2 output signals Output signal from COMPOSITE connector 525/60 CONV signals in 525/60 625/50 CONV signals in 625/50 1080/59i B.B. in 525/60 1080/50i B.B. in 625/50 1080/24PsF B.B. in 625/50 1080/23.98PsF B.B. in 525/60 720/59p B.B.
  • Page 175: Composite Clip

    9-2-11. Composite Clip Clicking block (12) on the video block diagram opens the Composite Clip dialog box. See section 5-5-3 “VIDEO CLIP Setting Ranges” for details. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. Click Unity to reset to the default settings.
  • Page 176: Audio Settings

    9-3. AUDIO Settings Click Click the Audio tab at the top of the page. The audio block diagram will be displayed. Each block in the diagram lets you to go to the corresponding windows or dialog boxes that allows you to change various settings. Audio Block Diagram (14) (15)
  • Page 177: Sdi Input

    9-3-1. SDI Input Clicking block (1) or (2) on the audio block diagram opens the SDI 1, 2 Input dialog box. SDI 1 Input and SDI 2 Input dialog boxes allow you to set FS1 and FS2 embedded audio settings respectively. After completing the settings, click Close to close the dialog box.
  • Page 178 *1 Embedded audio signal groups are automatically phase-adjusted when they are input to the FA-9520. If there is an abnormal audio signal in an audio group, whether the audio group is in use or not, audio streams may be obstructed by the auto phase adjustment. In such cases, audio stream obstruction can be avoided using this Alignment enable/disable function.
  • Page 179: Aes Audio Input Settings

    9-3-2. AES Audio Input Settings Clicking block (3) on the audio block diagram opens the AES Audio Input dialog box. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. Click Unity to reset to the default settings. Click to increase the value by the smallest steps.
  • Page 180 Setting Examples:  When setting all channel pairs CH 1/2 to 7/8 to Group A CH 1/2 will be the reference. Other channel pairs will be synchronized to the word clock of CH1/2.  When setting channels CH1/2 to 3/4 to Group A, and channels CH5/6 to 7/8 to Group CH 1/2 will be the reference pair for Group A, and CH 5/6 the reference pair for Group B.
  • Page 181: Analog Audio Input

    9-3-3. Analog Audio Input Clicking block (3) on the audio block diagram opens the Analog Audio Input dialog box. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. Click Unity to reset to the default settings. Click to increase the value by the smallest steps.
  • Page 182: Audio Delay (Sdi / Aes / Analog)

    9-3-4. Audio Delay (SDI / AES / Analog) Clicking block (5) on the audio block diagram opens the Audio Delay dialog box.  SDI1, SDI2 Audio Delay After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. Click Unity to reset to the default settings.
  • Page 183: Src Mode (Sdi / Aes)

    9-3-5. SRC Mode (SDI / AES) Clicking block (6) on the audio block diagram opens the SRC Mode dialog box.  SDI1, SDI2 SRC Mode After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. Parameter Default Setting range...
  • Page 184: Audio Output Polarity (Sdi / Aes / Analog)

    9-3-6. Audio Output Polarity (SDI / AES / Analog) Clicking block (7) on the audio block diagram opens the Audio Output Polarity dialog box.  Polarity: SDI1, SDI2  Polarity: AES, Analog After completing the settings, click Close to close the dialog box. Click Refresh to update the settings.
  • Page 185: Audio Mapping

    9-3-7. Audio Mapping Clicking block (8) on the audio block diagram opens the Audio Mapping dialog box. (See section 6-5. “AUDIO MAPPING (MAPPING)” for details.) After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. ...
  • Page 186  Analog Out Mapping Parameter Default Setting range Description SDI 1 CH1-16 SDI 2 CH1-16 AES CH1-8 ANALOG CH1-4 DOWN MIX1-L DOWN MIX1-R DOWN MIX2-L DOWN MIX2-R 500Hz TONE 1KHz TONE SILENCE Dolby Decoder A CH1 to 8 *1 *2 Selects an audio signal to *1 *2 Dolby Decoder A Downmix L...
  • Page 187: Audio Master Gain Settings

    9-3-8. Audio Master Gain Settings Clicking block (9) on the audio block diagram opens the Audio Master Gain Setting dialog box. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. Click Unity to reset to the default settings. Click to increase the value by the smallest steps.
  • Page 188: Down Mix Setting

    9-3-9. Down Mix Setting Clicking block (10) on the audio block diagram opens the Down Mix Setting dialog box. See section 6-7 “DOWN MIX1 SET” and 6-8. “DOWN MIX2 SET” for details.  Downmix 1, 2 Setting Parameter Default Setting range Description Stereo Mode...
  • Page 189  Downmix Assign Parameter Default Setting range Description EMB1 CH1-16 Left Left: EMB CH1 EMB2 CH1-16 Right Right: EMB CH2 AES CH1-8 Selects audio signals to be Center Center: EMB CH3 downmixed. ANALOG CH1-4 Left Surround Left Surround: EMB CH5 Dolby DECA CH1-8 Right Surround Right Surround: EMB CH6...
  • Page 190: Sdi Audio Output Settings

    9-3-10. SDI Audio Output Settings Clicking block (14) or (15) on the audio block diagram opens the SDI 1/2 or 3/4 Audio Output Setting dialog box. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings. ...
  • Page 191: Aes Audio Output Settings

    9-3-11. AES Audio Output Settings Clicking block (16) on the audio block diagram opens the AES Audio Output Setting dialog box. After completing the settings, click Close to close the dialog box. Click Refresh to update the settings.  AES Audio Mono Sum Parameter Default Setting range...
  • Page 192: Dolby E/Digital Decoder

    9-3-13. Dolby E/Digital Decoder Clicking block (15) on the audio block diagram when the FA-95D-D or FA-95DE-E option is installed in option slot A/B opens the Dolby Decoder dialog box. (The Dolby options in slots A and B can be set separately.) After completing the settings, click Close to close the dialog box.
  • Page 193 Parameter Default Setting range Description Dolby E 5.1+2 Dolby E 5.1+2x1 Dolby E 4+4 Dolby E 4+2x2 Dolby E 4+2+2x1 Dolby E 4+4x1 Dolby E 4x2 Dolby E 3x2+2x1 Dolby E 2x2+4x1 Dolby E 2+6x1 Dolby E 8x1 Dolby E 5.1 Dolby E 4+2 Dolby E 4+2x1 Dolby E 3x2...
  • Page 194: Dolby Aux Output Select

     Dolby Polarity Parameter Default Setting range Description Normal Sets polarity for the Dolby decoder Ch 1-8 Normal output. Invert  Dolby Decoder Gain Parameter Default Setting range Description -20.0 - +20.0 dB Sets offset for all Dolby-decoded Master 0.0 dB (0.1 dB) signals.
  • Page 195: Dolby E Encoder

    Input Direct Input Direct Input Selection: Source Selection Selection Dolby Decoder Output channel signals of the FA-9520 Dolby Decoder Output: Output signal from the Dolby decoder When Direct Input When Input Selection is set to Direct Selection is selected Input Selection:...
  • Page 196 assignments will be changed to that of the Input Selection. Direct Input Selection and Dolby Decoder Output signals cannot be input to the Dolby encoder together. Dolby Digital signal output from the Dolby decoder, Dolby Decoder Output, cannot be encoded to the Dolby E signal.
  • Page 197: Automatic Loudness Adjustment (Fa-95Ala)

    9-3-16. Automatic Loudness Adjustment (FA-95ALA) Clicking block (13) on the audio block diagram when the FA-95ALA option is installed in option slot A/B opens the Automatic Loudness Adjustment dialog box. (Settings for the FA-95ALA in both option slots are the same, but can be set separately.) ...
  • Page 198  Loudness Control Settings 1/2 Parameter Default Setting range Description Allows you to turn On or Off the Loudness Level Adjustment feature. Set to Off to enable only Loudness loudness measurement. The On/Off setting can Control only be changed while loudness measurement is being stopped.
  • Page 199 *2 Selectable if Mode is set to 5.1ch. *3 Under Loudness Channel Assign 2 menus, values are EMB2 CH1 – 6 respectively. *4 Shown if the FA-95D-D or FA-95DE-E is installed in option slot A/B. * LFE channels are subjected to adjustments, but not to measurement. ...
  • Page 200: System Settings

    9-4. SYSTEM Settings Click Click the System tab at the top of the page. The System setting window will be displayed. The system setting window consists of Video System and Audio System pages. Those pages are accessed by clicking ►FS1 Video System ►FS2 Video System ►Audio System at the top of the page.
  • Page 201 SYNCHRO IN SEL Default ─ FRAME SDI1, 2 Composite (525/60) LINE Composite (625/50) Component (Y/C) Component (others) SDI1, 2 Composite (525/60) AVDL Composite (625/50) Component (Y/C) Component (others)  FS1, FS2 HD Phase Parameter Default Setting range (Steps) Description -1375 - 1375 clk 1080 H Phase 0 clk Adjusts the horizontal and vertical...
  • Page 202  FS1, FS2 Video Position Parameter Default Setting range (Steps) Description 525/60i ±92 625/50 ±92 1080/59i ±240 1080/50i ±240 H Position 1080/23PsF ±240 0 Pixel 1080/24PsF ±240 720/59p ±160 720/50p ±160 1080/59p ±240 1080/50p ±240 (Pixel) Adjusts the horizontal/vertical position of output videos. 525/60i ±30 625/60i ±36 1080/59i ±68...
  • Page 203 520clk common in all formats. (HD: 74 MHz, SD: 27MHz) Does not use a genlock signal. Auto Detect 525/60 625/50 1080/59.94i Sets a system format for the FA-9520. 1080/50i Auto Auto Detect: Detects and sets the detected input Sync Format 720/59.94p Detect video format to the system format.
  • Page 204  FS1, FS2 Ancillary Setting Parameter Default Setting range Description Selects ancillary data processing mode for the FS1/FS2 output signal. H ANC and V ANC menu H/V ANC ANC Mode H/V ANC settings will become available when H/V ANC is Detail selected.
  • Page 205: Audio System

    9-4-2. Audio System If the user name and password are not set in the USER SETTING page (see section 9-8-5), the Logout is not shown. Click Refresh to update the settings.  Fade In/Out Parameter Default Setting range Description Disable: Always outputs input audio signals without adding any effect such as Fade or Mute.
  • Page 206 Normally set to Normal. Set to Disable for a specific program or duration when audio output has noise or is muted. The FA-9520 fades out audio or resets the delay circuit when a status change (SDI signal input interruption, signal switchover (by a router, etc.) is detected. Faulty ancillary data in normal audio signals may also be detected as status changes.
  • Page 207 *3 Processes the audio signal as described if 9-3-10 SDI Audio Output Settings is set to Auto.  Validity: FA-9520 determines whether the input audio signal is PCM or NON-PCM by Validity Bit (V Bit) in audio signal. If Validity Bit (V Bit) is incorrect the audio signal may cause improper processing.
  • Page 208: Anc Settings

    9-4-3. ANC Settings If the user name and password are not set in the USER SETTING page (see section 9-8-5), the Logout is not shown. Click Refresh to update the settings.  FS1/FS2 ANC Detect Line Allows you to select which line of the input signal to detect the superimposed ancillary data. For RP186 VI: Parameter Default...
  • Page 209  FS1/FS2 ANC Data Embed Allows you to set ancillary data insertion into FS1/FS2 output video signals. Parameter Default Setting range Description CEA608 CC S334-1 CC SD CEA708 CC CEA608 CC Selects an ancillary data type to insert. S2016-3 AFD RP186 VI BT1119 WSS Selects a video format that supports the...
  • Page 210 If CEA608 or S334-1 CC closed caption data is detected in the input signal, and the FS1 and/or FS2 converter output signal format(s) is/are 1080/59i or 720/59p, the detected closed caption data will be automatically converted to CEA708. However, if CEA708 closed caption insertion is disabled, the data will not be inserted.
  • Page 211  FS1/FS2 ANC Loss Mode Settings Allows you to select an operation mode when input signal ancillary data is lost. Parameter Default Setting range Description S2016-3 AFD Selects an ancillary data type to insert S2016-3 AFD RP186 VI into the SDI signal. BT1119 WSS Selects a video format compatible with the ancillary data selected under ANC.
  • Page 212: Composite Settings

    9-4-4. Composite Settings If the user name and password are not set in the USER SETTING page (see section 9-8-5), the Logout is not shown. Click Refresh to update the settings.  SC Phase Parameter Default Setting range Description Adjusts the subcarrier phase of composite and Y/C output signals referring to the B.B.
  • Page 213: Gpi

    9-5. GPI If the user name and password are not set in the USER SETTING page (see section 9-8-5), the Logout is not shown. Click Refresh to update the settings. Parameter Default Setting range(Steps) Description Input Selects whether to use GPI pins 1 In/Out Input Output...
  • Page 214 FS1 Load 1 – 7 or FS2 Load 1 – 7. In the following cases, the logo will not be inserted to the converter output signals, although data will be loaded to the FA-9520. - No logo is registered under the selected Logo ID.
  • Page 215: Utility Settings

    9-6. Utility Settings Click Click the Utility tab at the top of the page. The Utility setting window will be displayed. If the user name and password are not set in the USER SETTING page (see section 9-8-5), the Logout is not shown. Click Refresh to update the settings.
  • Page 216: Event Control

    Event1-Event100 the FA-9520. *1 Default recalls the default settings.  Set Event Name Click Set next to Unit/Event Name. A window that allows you to name the FA-9520 and events 1 through 100 as shown below opens. ①  Unit Name Enter a name for the FA-9520 within 15 characters.
  • Page 217: Backup Parameter

    9-6-2. Backup Parameter The FA-9520 settings can be saved to a file, and the saved settings in a file can be loaded.  Saving the FA-9520 Settings to a File Click Submit next to Save File under Backup Parameter. The File Download dialog appears.
  • Page 218: Downloading A Mib File

    Click Load. A confirmation message appears. Click OK to start transferring the file to the FA-9520. To stop transferring the file, click Cancel. IMPORTANT BY-PASS On/Off and Freeze On/Off settings cannot be saved. The data saved in FA-9500 mode cannot be loaded.
  • Page 219: Event Data Backup

    9-6-4. Event Data Backup The Event Memory data (Events1 through 100) saved in FA-9520 mode can be saved in a file on the computer as a backup. You can also move the data to another FA-9520 (in FA-9520 mode).  Save File Click Save.
  • Page 220: Status Display

    9-7. Status Display Click Click the Status tab at the top of the page. The Unit/Video Status page will be displayed. To go to the Audio Status page, click Audio Status at the top left of the page. In the same way, click Unit/Video Status to go to the Unit/Video Status page, and click Unit Information to go to the Unit Information page.
  • Page 221 Item Display Description Loss Displays the video format of the COMPOSITE input signal. 525/60 Displays “Loss” if there is no input signal. Composite In 625/50 Displays “Unknown” if there is an unsupported input signal. BY-PASS Displays “BY-PASS” if the function is enabled. Unknown Loss 525/60...
  • Page 222 *1 Shown if the FA-95AIO option is installed in option slot A. *2 Shown if the FA-95AIO option is installed in option slot B.  Unit Status Item Display Description Displays the unit name. The default setting is “FA-9520”. Unit Name FA-9520 Displays the status of Fan1. Normal: Operating normally. Normal Fan1 Stopped: FAN1 has stopped.
  • Page 223: Audio Status

    9-7-2. Audio Status The audio statuses are shown on the Audio Status page. If the user name and password are not set in the USER SETTING page (see section 9-8-5), the Logout is not shown. Click Refresh to refresh the page. ...
  • Page 224  SDI1/2 Output Audio Item Display Description Displays the status of audio signal channels CH1 through CH16 of the SDI 1/2 output. Silence PCM: Normal audio signal Non-PCM Silence: Mute signal CH1 - CH16 Unknown Non-PCM: Compressed audio data such as AC3 Unknown: Unidentifiable Blank Blank: No audio signal embedding...
  • Page 225: Unit Information

    Displays the FPGA1 version. FPGA2 Displays the FPGA2 version. FPGA3 Displays the FPGA3 version. Displays the software version of the FA-9520 in FA-9520 mode. (First 4 digits) SOFT Displays the software version of the FA-9520 in FA-9500 mode. (Last 4 digits) ...
  • Page 226: Anc Status

    9-7-4. ANC Status Click Refresh to update the settings.  Ancillary Input Stats Displays the status of CEA608, WSS, and VI ancillary data detection. The line number in which the ancillary data is in is displayed.  AFD Input Status Displays the status of AFD detection in the input signal.
  • Page 227 Displays the ancillary data name, such as S334-1CDP(708), if the DID and SDID of the ancillary data match that of supported formats. See section 19. “FA-9520 Ancillary Data Packet Name List” for details on ancillary data names, and DID and SDID of formats.
  • Page 228 Displays the content, names and inserted lines of the 4 total ancillary data packets inserted into Converter 1 and 2 output signals. See section 19. “FA-9520 Ancillary Data Packet Name List” for details on ancillary data names, and DID and SDID of formats.
  • Page 229: Network Settings

    9-8. Network Settings Click If the user name and password are not set in the USER SETTING page (see section 9-8-5), the Logout is not shown. Click the Network tab at the top of the page. The Network page will be displayed. at the top left, click NETWORK SETTING to go to the NETWORK SETTING screen.
  • Page 230: Snmp Setting

    *1 The Remote Port Number must match that of the FA-95RU. *2 Logo Port Number settings in the FA-9520 and the FA-95LG GUI must match. 9-8-3. SNMP SETTING This page allows you to set the SNMP settings. After you are sure that all settings are appropriate, click Submit.
  • Page 231  Trap Setting Setting Range Item (Alphanumeric and Description symbolic characters) The SNMP manager’s IP address to which a trap Trap1 Address is sent. The SNMP manager’s IP address to which a trap Trap2 Address is sent. The SNMP manager’s IP address to which a trap Trap3 Address is sent.
  • Page 232: Trap Setting

    9-8-4. TRAP SETTING Allows you to control SNMP trap transmission. Check the check box of a trap to be sent, then click Submit. Uncheck to stop sending. See the TRAP List in section 18 “About SNMP (Simple Network Management Protocol)” for details. ...
  • Page 233: User Setting

    Changes will be applied after rebooting or 9-8-6 “Restart” is performed. 9-8-6. Restart Click Restart to reboot the FA-9520. The FA-9520 performs the same operation as when it is on. Note that the video and audio signals will be distorted while rebooting the FA-9520.
  • Page 234: Downmix Block Diagram

    10. Downmix Block Diagram <Surround Mix (Lt/Rt)> Ls/Rs surround channels are summed to produce a mono surround channel and mixed to right and left channels by the 180 degree phase difference. (LFE channel is discarded.) Gain Adjust Gain Adjust Gain Adjust Gain Adjust 1:...
  • Page 235: Analog/Digital Audio Input/Output Level

    11. ANALOG/DIGITAL Audio Input/Output Level 11-1. Analog Output Level Relative to the Digital Input Level  Digital Reference Level: -18dBFS ANALOG OUT LEVEL setting Digital audio input level -10 dBm 0 dBm 4 dBm 8 dBm -24 dBFS -16 dBm -6 dBm -2 dBm +2 dBm...
  • Page 236: Digital Output Level Relative To The Analog Input Level

    11-2. Digital Output Level Relative to the Analog Input Level Digital Reference Level: -18dBFS ANALOG IN LEVEL setting Analog audio input level -10 dBm 0 dBm 4 dBm 8 dBm -20 dBm -28 dBFS -38 dBFS -42 dBFS -46 dBFS -10 dBm -18 dBFS -28 dBFS...
  • Page 237: Analog Audio Connection

    12. Analog Audio Connection For balanced input and output, connect the hot and cold wires of an analog audio signal to plus and minus pins respectively. For unbalanced input, connect the analog audio signal line to the plus pin and route the ground line to the minus pin and COM pin.
  • Page 238: Dolby E Decoder/Encoder Channel Assignment Table

    13. Dolby E Decoder/Encoder Channel Assignment Table Dolby E Decoder Output / Encoder Input Channel Assignment Out/In Out/In Out/In Out/In Out/In Out/In Out/In Out/In Program Configuration 5.1+2 1LFE 5.1+2×1 1LFE 4+2×2 4+2+2×1 4+4×1 4×2 3×2+2×1 2×2+4×1 2+6×1 8×1 1LEF None None Dolby E None...
  • Page 239: Remote

     See section 7-6. "GPI SETTING" for the function assignments for GPI1-GPI7. For GPI inputs, the function is ON when a pin is shorted to ground and OFF when open. 14-2. GPI Input Circuit FA-9520 inside PINs 2-8 PIN 9...
  • Page 240: Gpi Input Control

    14-3. GPI Input Control  Level Control The pin assigned function is enabled or disabled by the pulse level. Trigger (state of pin) OPEN: Function is OFF CLOSE: Function is ON 500msec or more pulse width 500msec or more pulse width OPEN CLOSE ...
  • Page 241: Gpi Output Circuit

    14-4. GPI Output Circuit Select external or internal power. FA-9520 inside +5.4V Protective resistor PIN 1 5VDC PINs 2-8 (external power) PIN 9 IMPORTANT Note that the allowed current for each GPI output circuit is 10mA and the external power supply should be 5VDC.
  • Page 242: How To Install The Fa-95Dacbl

    15. How to Install the FA-95DACBL This section describes how to install the optional FA-95DACBL. If you have purchased the FA-95DACBL with the FA-9520, this procedure is unnecessary since the FA-95DACBL has been factory installed. 15-1. Procedure 1. Turn off the power of the FA-9520 and disconnect the power cord.
  • Page 243: Installation Confirmation

    5. Install the BNC connector panel of the FA-95DACBL into the slot from inside the unit. Secure the connector panel with the screws that were removed from the blank panel. (See the below picture.) 6. If you have install the FA-95DACBL in slot A, set switch 5 in the S2 DIP switch to OFF. If you have installed it into slot B, set switch 5 in the S2 DIP switch to ON.
  • Page 244: Fa-95Aio Option

    16. FA-95AIO Option 16-1. FA-95AIO Pin Assignments Be sure to use the supplied FA-95AIO connection cable. FA-95AIO Connector (15-pin D-sub female inch screws) Pin Assignment (15-pin D-sub female) Pin No. Connector Signal Y/G IN Y/G IN Pb/B IN Pb/B/C IN Pr/R IN Pr/R IN Y/G OUT...
  • Page 245: Fa-95Aio Switch Settings

    Do not change Do not change Do not change Do not change 17. System Requirements To use with the FA-9520, your computer must meet the following requirements. Windows® XP operating Windows Vista® Windows® 7 operating system SP2 or later operating system...
  • Page 246: About Snmp (Simple Network Management Protocol)

    18. About SNMP (Simple Network Management Protocol) The FA-9520 can be remotely monitored and some of its settings can be remotely changed using the SNMPv2C protocol. Some menu items can also be set via the network. MIB (Management Information Base) is required for the monitoring and can be downloaded (see section 9-6-3 "Downloading a MIB File").
  • Page 247 Read Write Object group Front TITLE Item name Settings Object name in MIB file OID Type (Get) (Set) 0: FS1 ○ ○ AIO A ASSIGN ASSIGN fa952OutOpASel INTEGER 1: FS2 0: FS1 ○ ○ AIO B ASSIGN ASSIGN fa952OutOpBSel INTEGER 1: FS2 0: YPbPr-SMPTE 1: YPbPr-BETACAM...
  • Page 248 Read Write Object group Front TITLE Item name Settings Object name in MIB file OID Type (Get) (Set) OID: 1.3.6.1.4.1.20175.1.307.2.4.1. (FS1 COLOR CORRECTION) 0: balance ○ ○ FS1 Correction Mode 1: differential fa952FS1CorrectionMode INTEGER COLOR CORRECT 2: sepia SETTINGS 0: center ○...
  • Page 249 Read Write Object group Front TITLE Item name Settings Object name in MIB file OID Type (Get) (Set) Horizontal Position Minimum fa952FS1ConverterHPositionMi ○ -960 to -360 pixel INTEGER Value nimum Horizontal Position Maximum fa952FS1ConverterHPositionM ○ 360 to 960 pixel INTEGER Value aximum fa952FS1ConverterVPositionMi...
  • Page 250 Read Write Object group Front TITLE Item name Settings Object name in MIB file OID Type (Get) (Set) 1: Field 2: Frame(Odd 1st) fa952FS2ConverterMotionSens ○ ○ FS2Motion Sense INTEGER 3: Frame(Even 1st) 4: Adaptive FS2CONV IMPROVE ○ ○ Enhance 0 to 8 fa952FS2ConverterEnhance INTEGER ○...
  • Page 251 Read Write Object group Front TITLE Item name Settings Object name in MIB file Type (Get) (Set) OID: 1.3.6.1.4.1.20175.1.307.3.1.1 (fa952AudioEmb1Assign) 0:emb1Ch1 1:emb1Ch2 Audio Emb1 Assign CH 2:emb1Ch3 ○ ○ fa952AudioEmbedded1OutAssignCh1 INTEGER 3:emb1Ch4 4:emb1Ch5 5:emb1Ch6 6:emb1Ch7 7:emb1Ch8 8:emb1Ch9 Audio Emb1 Assign CH ○...
  • Page 252 Read Write Object group Front TITLE Item name Settings Object name in MIB file OID Type (Get) (Set) Audio Emb2 Assign ○ ○ Same as above fa952AudioEmbedded2OutAssignCh13 INTEGER CH13 Audio Emb2 Assign ○ ○ Same as above fa952AudioEmbedded2OutAssignCh14 INTEGER CH14 Audio Emb2 Assign ○...
  • Page 253 Read Write Object group Front TITLE Item name Settings Object name in MIB file Type (Get) (Set) OID: 1.3.6.1.4.1.20175.1.307.3.2.3 (fa952AudioAesOutAssign) 0:emb1Ch1 1:emb1Ch2 2:emb1Ch3 3:emb1Ch4 4:emb1Ch5 5:emb1Ch6 Audio AES Out Assign ○ ○ fa952AudioAesOutAssignCh1 INTEGER 6:emb1Ch7 7:emb1Ch8 8:emb1Ch9 9:emb1Ch10 10:emb1Ch11 11:emb1Ch12 12:emb1Ch13 13:emb1Ch14 14:emb1Ch15...
  • Page 254 Read Write Object group Front TITLE Item name Settings Object name in MIB file Type (Get) (Set) OID: 1.3.6.1.4.1.20175.1.307.3.3.3 (fa952AudioAnalogOutAssign) 0:emb1Ch1 1:emb1Ch2 2:emb1Ch3 3:emb1Ch4 4:emb1Ch5 5:emb1Ch6 6:emb1Ch7 7:emb1Ch8 8:emb1Ch9 9:emb1Ch10 10:emb1Ch11 Audio Analog Out Assign 11:emb1Ch12 ○ ○ fa952AudioAnalogOutAssignCh1 INTEGER 12:emb1Ch13 13:emb1Ch14 14:emb1Ch15...
  • Page 255 Read Write Object group Front TITLE Item name Settings Object name in MIB file Type (Get) (Set) OID: 1.3.6.1.4.1.20175.1.301.3.4.8. (fa952AudioEmb2OutGain) ○ ○ EMB2 AUDIO EMB2 OUT GAIN Master Output Gain -20.0 to 20.0 dB fa952Embedded2MasterOutGain INTEGER OID: 1.3.6.1.4.1.20175.1.301.3.4.8.2.1. (fa952AudioEmb2OutGain) Channel 1 to 16 fa952Embedded2OutGainCh INTEGER...
  • Page 256 Read Write Object group Front TITLE Item name Settings Object name in MIB file Type (Get) (Set) 0: NORMAL ○ ○ Output Polarity CH16 fa952AudioEmbedded2PolarityCh16 INTEGER 1: INVERT OID: 1.3.6.1.4.1.20175.1.301.3.8.3. (fa952AudioAesPolarity) 0: NORMAL ○ ○ Output Polarity CH1 fa952AudioAesPolarityCh1 INTEGER 1: INVERT 0: NORMAL ○...
  • Page 257  TRAP List Traps can be sent or not be sent by settings. See section 9-8-4 “TRAP SETTING” for details. ○: Available -: Unavailable Write Read Trap Trap Object Settings Object name in MIB file OID Type Valid Event (value) OID:1.3.6.1.4.1.20175.1.301.6.3.(SDI-1-2 Audio TRAP) ○...
  • Page 258 Write Read Trap Trap Object Settings Object name in MIB file OID Type Valid Event (value) OID: 1.3.6.1.4.1.20175.1.301.6.8 (Dolby OpB) 0: Loss 1: PCM ○ AUX Input fa95DolbyOpBAuxInputChangedTrap NOTIFICATION-TYPE Change 2: NON-PCM 3: Unknown 00:Loss 01:525/60i 02:625/50i 04:1080/59i 05:1080/50i 09:1080/24PsF 10:1080/23.98PsF ○...
  • Page 259: Fa-9520 Ancillary Data Packet Name List

    19. FA-9520 Ancillary Data Packet Name List DID/SDID FA-9520 Indication Description (hexadecimal) S353MMPEG(V) 08/08 MPEG recoding data, VANC space (Picture rate information) S353M MPEG(H) 08/0C MPEG recoding data, HANC space (Other part of recording data set) S305M SD-SDTI 40/01 ARIB STD-B17 Serial Data Transport Interface for Television...
  • Page 260 DID/SDID FA-9520 Indication Description (hexadecimal) ARIB TRB23(1) 5F/FC User data 1 in user data packets standardized in ARIB TR-B23 “ Operational Guidelines for Ancillary Data in Inter-Stationary Information Exchange” ARIBB.35ProgEx 5F/FD Trigger signal packets for data broadcasting standardized in ARIB STD-B35 “SD Data Program Exchange Specification for Digital...
  • Page 261: About Afd (Active Format Description)

    20. About AFD (Active Format Description) The FA-9520 can provide aspect ratio conversion according to S2016-3, RP186 VI (Video Index), or BT1119-2 WSS (Wide Screen Signaling) AFD code data in the ancillary data of input video signals. The below figure depicts example aspect ratio conversions using AFD code data.
  • Page 262: Afd Codes

    20-1. AFD Codes  AFD 4:3 code WSS name FA-9520-specified name Description illustration in a 4:3 coded frame (VI, S2016) Image with a 16:9 aspect ratio as a letterbox on top of a 4:3 coded frame. BOX 16:9 TOP 4:3 L 16:9 T...
  • Page 263  AFD 16:9 code WSS name FA-9520-specified name Illustration in a 16:9 Description (VI, S2016) coded frame Image with an aspect ratio greater than 16:9 as a vertically centered letterbox in a 16:9 None 16:9 L>16:9 coded frame. Image is full frame, with an aspect ratio the same as that of the 16:9 coded frame.
  • Page 264: Aspect Ratio Conversion With Afd

    20-2. Aspect Ratio Conversion with AFD  4:3 to 16:9 conversion SD: AFD (16:9) conv. SD: AFD-ALT(16:9) conv. Input AFD Input AFD Illustration in a 4:3 HD: AFD conversion HD: AFD-ALT conversion (WSS) (VI, S2016) coded frame BOX 16:9 TOP 4:3 L 16:9 T BOX 14:9 TOP 4:3 L 14:9 T...
  • Page 265  4:3 to 4:3 conversion Input AFD Input AFD Illustration in a 4:3 AFD (4:3) AFD-ALT (4:3) (WSS) (VI, S2016) coded frame conversion conversion BOX 16:9 TOP 4:3 L 16:9 T BOX 14:9 TOP 4:3 L 14:9 T BOX 16:9 CTR 4:3 L>...
  • Page 266  16:9 to 4:3 conversion Input AFD Input AFD Illustration in a 16:9 AFD (4:3) AFD-ALT (4:3) (WSS) (VI, S2016) coded frame conversion conversion None 16:9 L>16:9 F 16:9 AMRPH 16:9 F 16:9 None 16:9 P 4:3 None 16:9 F PRTD None 16:9 P 14:9 None...
  • Page 267  16:9 to 16:9 conversion SD: AFD (16:9) conv. SD: AFD-ALT(16:9) conv. Input AFD Input AFD Illustration in a 16:9 HD: AFD conversion HD: AFD-ALT conversion (WSS) (VI, S2016) coded frame None 16:9 L>16:9 F 16:9 AMRPH 16:9 F 16:9 None 16:9 P 4:3 None...
  • Page 268: Afd Supported Video Formats

    CONV1 and/or 2.  To enable devices that receive signals from FA-9520 to detect ancillary data, select the ancillary data type, output video format/s for CONV1 and/or 2 output/s, and line number into which the data is to be inserted in the ANC EMBED LINE menu (Sec. 5-7-5). The default setting should be set to the line number usually used.
  • Page 269: How To Insert Afd Data To Output Video Signals

    Into which line S2016-3 is inserted can be seen inANC OUT1 (Sec. 5-10-27). 20-5. How to Insert AFD Data to Output Video Signals FA-9520 can insert AFD data into input video signals that have no AFD data inserted.  AFD system settings To insert AFD data into output video signals, set basic operational settings in the VIDEO SYSTEM menus as follows.
  • Page 270: Afd Code Abbreviations

    20-6. AFD Code Abbreviations  SMPTE S2016-3 AFD aspect ratio table In a 4:3 coded frame In a 16:9 coded frame Code UNDEFINED Undefined UNDEFINED Undefined 0000 RESERVED Reserved RESERVED Reserved 0001 4:3 L 16:9 T Letterbox 16:9 image, at 16:9 F 16:9 Full frame 16:9 image, the 0010...
  • Page 271  SMPTE RP186-2008 VI AFD aspect ratio table Description AFD Code RESERVED Reserved 0000 RESERVED Reserved 0001 BOX 16:9 TOP Box 16:9 (top) 0010 BOX 14:9 TOP Box 14:9 (top) 0011 BOX>16:9 CTR Box > 16:9 (center) 0100 RESERVED Reserved 0101 RESERVED Reserved...
  • Page 272: About Closed Captioning

    21. About Closed Captioning The FA-9520 supports 3 closed caption standards; CEA608 CC, S334-1 CC SD, and CEA708 CC  Outline of each standard CEA608 CC Closed captioning for 525/60 video signals. Closed caption data is carried in line 21 in luminance level signals.
  • Page 273: Verification After Option Card Removal/Replacement

    22. Verification After Option Card Removal/Replacement An alarm message described in section 22-1 Alert may appear when turning the FA-9520 on after removing or changing the location of the FA-95D-D, FA-95DE-E, FA-95AIO, or FA-95ALA option. Press the F1 UNITY button to return to the normal startup screen.
  • Page 274: Verification After Fa-95Ala Removal/Replacement

    S L O T B : S T A T U S The above alert that appears after turning on the FA-9520 indicates an alarm or alarms for an option card or cards installed in the expansion slot A and/or B.
  • Page 275: Specifications And Dimensions

    24. Specifications and Dimensions 24-1. Unit Specifications Input Video Formats 1080/59.94p (Level-A), 1080/50p (Level-A), 1080/59.94i, 1080/50i, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL) Output Video Formats 1080/59.94p (Level-A), 1080/50p (Level-A), 1080/59.94i, 1080/50i, 1080/24PsF, 1080/23.98PsF, 720/59.94p, 720/50p 525/60 (NTSC), 625/50 (PAL), PAL-M 3G-SDI: 3 Gbps, HD-SDI: 1.5 Gbps or SD-SDI: 270 Mbps, 75Ω, BNC x 2 Video Input Analog Composite: 1.0 Vp-p, 75Ω, BNC x 1...
  • Page 276 Synchronizer mode Frame Sync mode, Line Sync mode, AVDL mode, System Phase Control Frame Sync mode H phase: -1/2 H to +1/2 H V phase: -1/2 frame to +1/2 frame Maximum delay: 1 frame + 1H, Minimum delay: 1H Line Sync mode H phase: -1/2 H to +1/2 H V phase: -1/2 frame to +1/2 frame Maximum delay: 1H +1/2 H, Minimum delay: 1/2 H...
  • Page 277 Power 100 VAC - 240 VAC ±10%, 50/60 Hz Power Consumption FA-9520: 60 VA (59 W) (at 100 - 120 VAC) 62 VA (56 W )(at 220 - 240 VAC) with FA-95PS: 60 VA (59 W) (at 100 - 120 VAC)
  • Page 278 24-2. External Dimensions (All dimensions in mm) VIDE O IN FAN A LARM PROC ESS CON V 1 CONV 2 POW ER PS1/LO CK SDI AUDIO AES AUDIO ANALOG MASTER AUDIO IN DC PO WER DISPLAY A V O CLIP IN SEL OUTSEL PS2/ L O CK...
  • Page 279 Warning This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
  • Page 280 2 Executive Drive, Suite 670, Fort Lee Executive Park, Fort Lee, NJ 07024, USA Tel: +1 201 944 1120 Fax: +1 201 944 1132 FOR-A Corporation of America Distribution & Service Center 2400 N.E. Waldo Road, Gainesville, FL 32609, USA Tel: +1 352 371 1505...

Table of Contents
