4-2. FPGA Update (PM9221) (Required Time: 7 minutes)

Updating FPGA (FPGA 1, 2, 3, 4) (PM9221)
1. Connect the FA-1010 and PC using a LAN cable.
2. Start the FA1010Updater.exe file (Fig. 12).
3. Enter the IP address. (default IP address: 192.168.0.10)(Fig. 14 ①).
4. Check [FPGA1/2/3/4] under [Target] (Fig. 14 ②).
5. Select the latest FPGA data under [Update File] (Fig. 14 ③).
6. Click [Update] to start updating (Fig. 14 ④).
The selected file needs to be in .pof format with a file name that begins with "FA1010_".
If an error occurs, verify that the data is FA-1010 FPGA data.
7. A message appears when the update is complete.

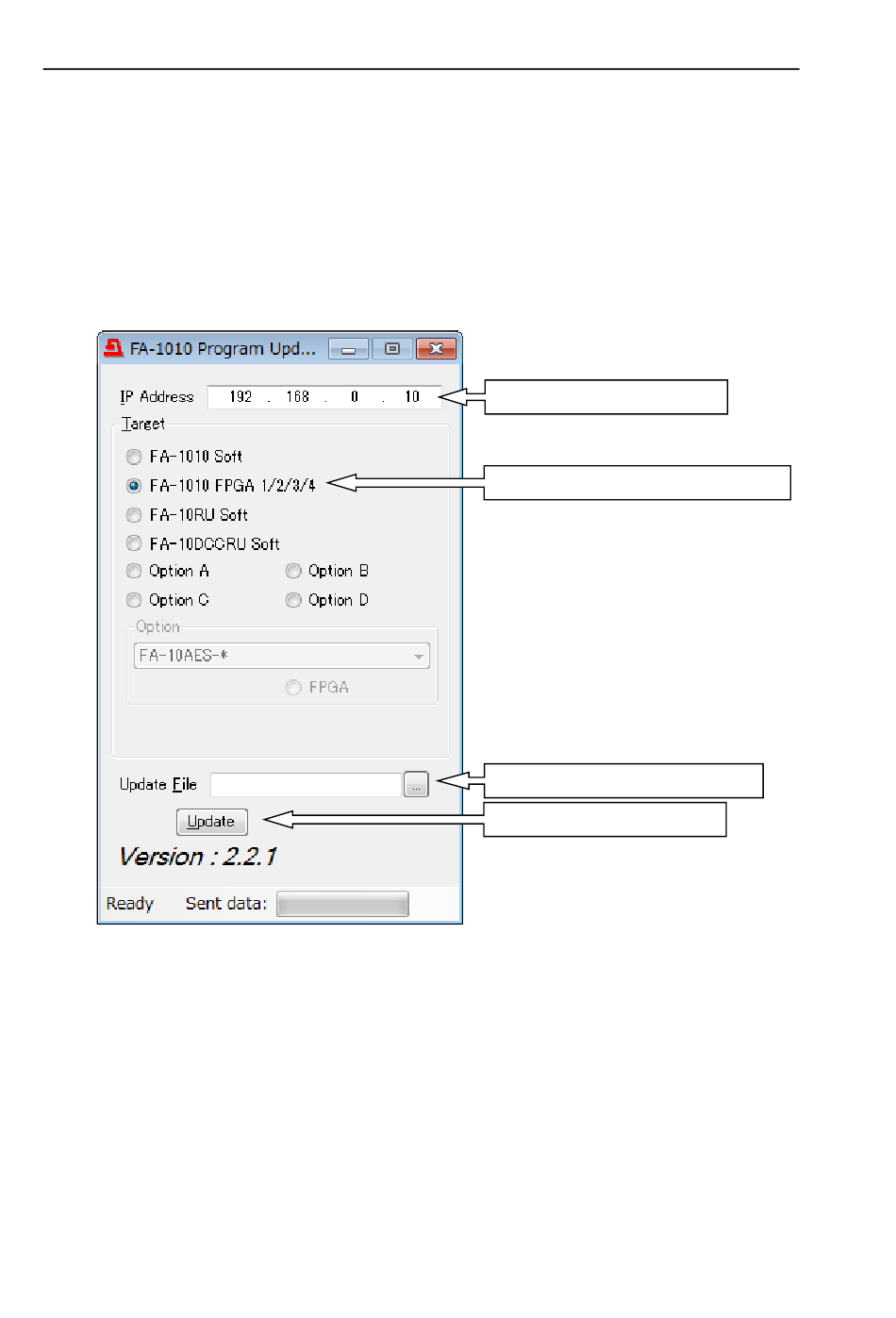

Fig. 14 FA-1010 Program Updater dialog
(for FPGA update settings)
① Enter the IP address
② Check FA-1010 FPGA 1/2/3/4
③ Select the latest FPGA data
④ Click Update
