4-3. CPLD Update (PM9223) (Required Time: 2 min.)

Updating CPLD (FPGA5) (PM9223)
1. Remove the top panel of the FA-1010.
2. Connect the ByteBlaster II to the parallel port of a PC (or USB Blaster cable to a USB port).
3. Connect the ByteBlaster II plug to CN24 (Card address: X.5, 4.0) (Fig. 15).
4. Start Quartus II Programmer.
5. Verify that ByteBlasterII (or USB Blaster) is selected (Fig. 16 ①)
6. If ByteBlaster II that is connected to PC is not selected, or "No Hardware" is displayed,
click [Hardware Setup](Fig. 16 ② ) and select the connected ByteBlasterII (or USB
Blaster).
* USB Blasters will not appear under the [Hardware Setup] list, unless they have been
connected beforehand.
7. Select [JTAG] under [Mode] (Fig. 16 ③).
8. Turn the power of the FA-1010 on.
9. Click [Auto Detect] (Fig. 16 ④).
10. If connected devices are displayed on the screen, select "EPM2210F256" displayed under
[Device] (Fig. 16 ⑤), then click [Change File] and select the latest pof file (Fig. 16 ⑥).
11. Check [Program/Configure] and [Verify] (Fig. 16 ⑦).
12. Click [Start] to start updating (Fig. 16 ⑧)
13. If [Progress] indicates 100% (Fig. 16 ⑨) and no error sign (in red) appears on the status bar
at the bottom of the window (Fig. 16 ⑩), the update is complete.
14. Turn the power of the FA-1010 off, and disconnect the cable from CN24.
15. Close the top panel of the FA-1010.

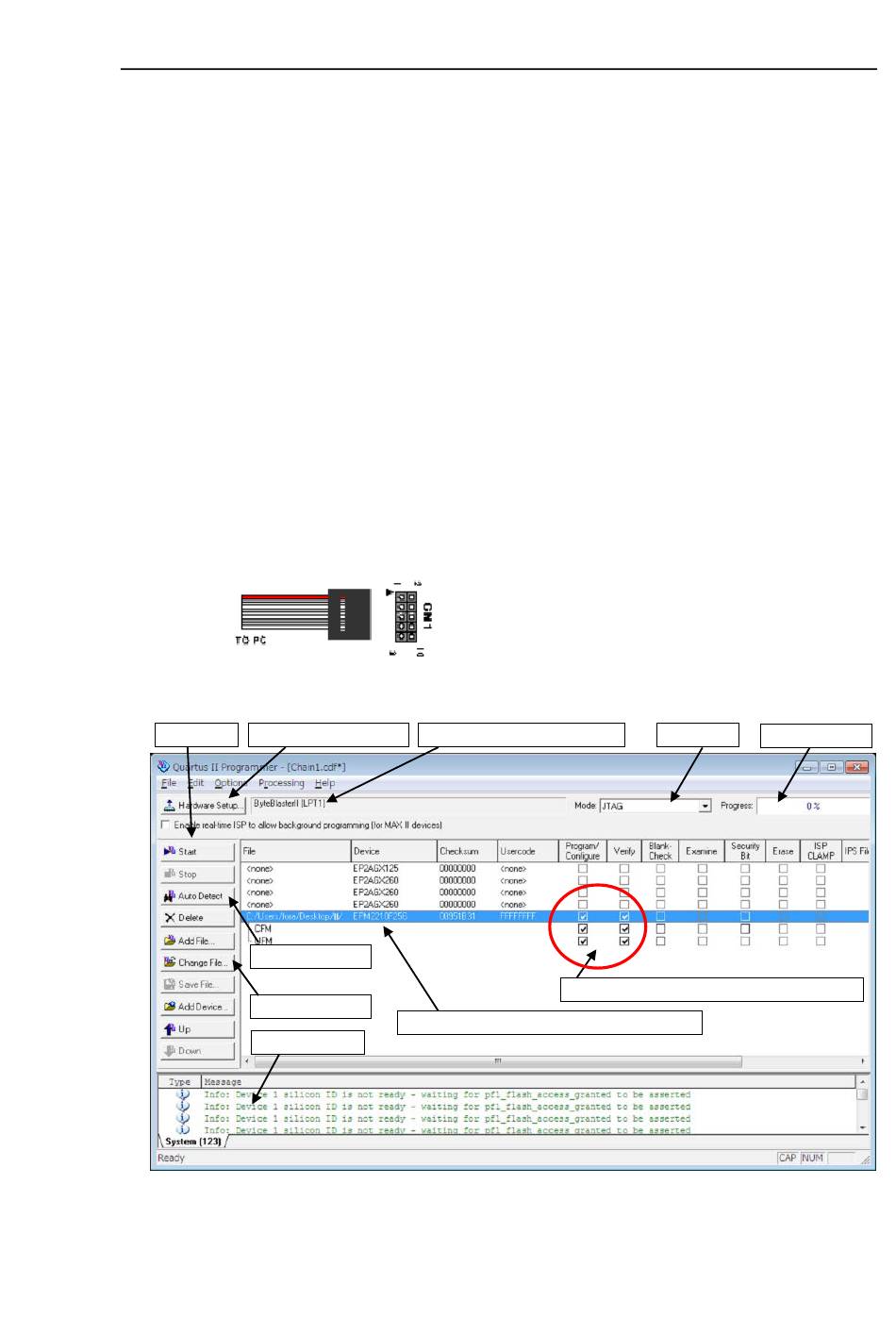

Fig. 15 ByteBlaster II (or USB Blaster) connection
⑧ [Start] ② [Hardware Setup]
④ [Auto Detect]
⑥ [Change File]
⑩ [Message]
Align red cable (or PIN 1 sign)
to pin 1
①Selected hardware
⑤ [Device] is displayed as EPM2210F256
Fig. 16 CPLD Update Screen (FA-1010)
19
③ [JTAG]
⑦ Check [Program/Configure] and [Verify]
⑨ [Progress]
