7. FA-10AES-BL/UBL Update

7-1. FPGA(FPGA 2) Update (PM 9224)(Required Time: 2min.)

* The FPGA2 update procedure for FA-10AES-BL and FA-10AES-UBL is the same.
1. Connect the FA-1010 and PC using a LAN cable.
2. Start the FA1010 Updater.exe file.
3. Enter the IP address (default IP address: 192.168.0.10)(Fig. 21 ①).
4. Check [Option A] (if FA-10AES-BL/UBL is installed in Slot ) (Fig. 21 ②).
5. Select [FA-10AES-*] (Option) (Fig. 21 ③).
6. Select [FPGA] (Fig. 21 ④).
7. Select the latest FPGA data under [Update File] (Fig. 21 ⑤).
8. Click [Update] to start updating (Fig. 21 ⑥).
The selected file needs to be in .pof format with a file name that begins with "FA10AES_".
If an error occurs, verify that the data is FA-10AES FPGA data.
9. A message appears when the update is complete.
10. Turn the power of the FA-1010 on, and verify that the latest FPGA2 version is displayed in
the FA-1010GUI Status tab.

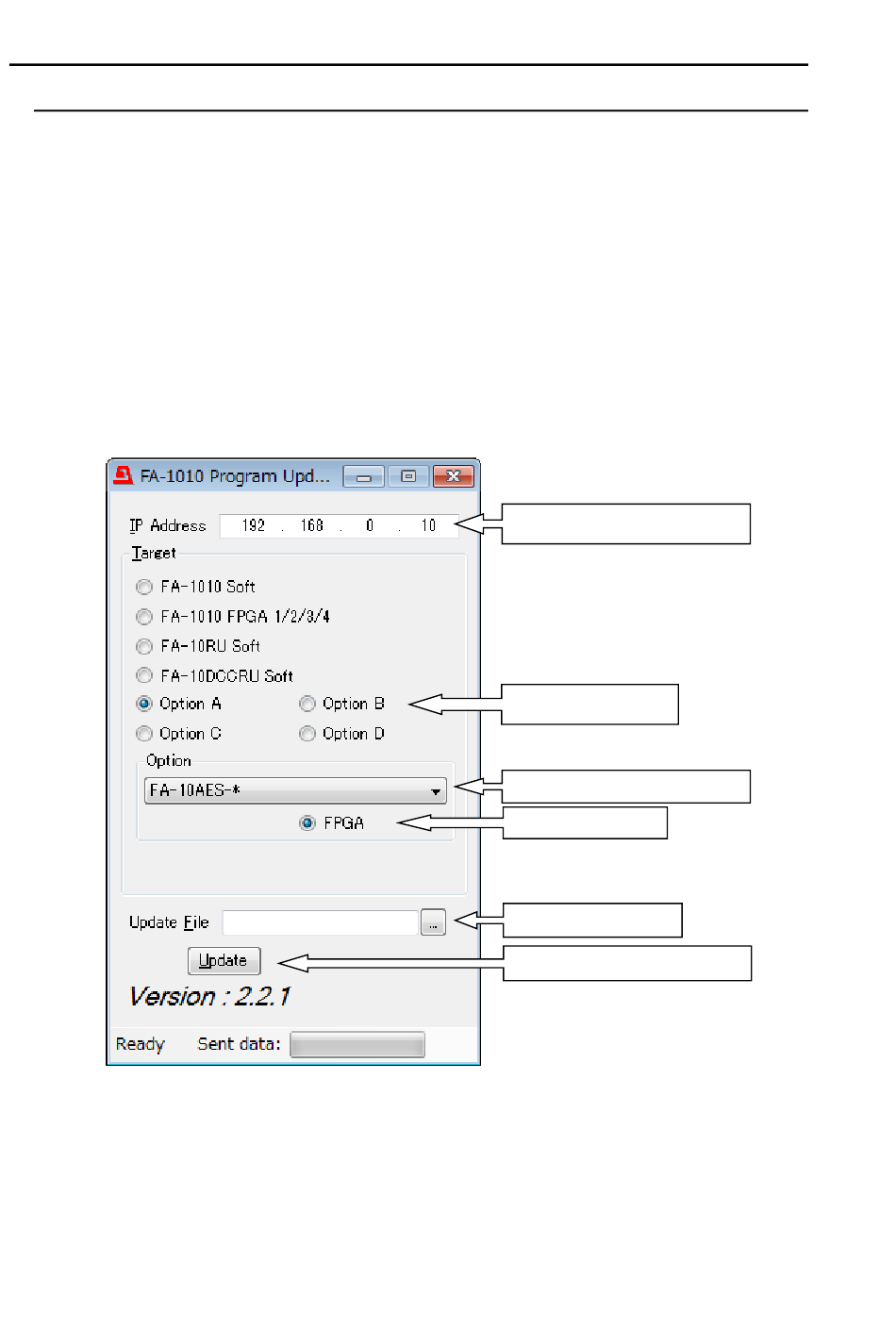

Fig. 21 FA-1010 Program Updater dialog
(for FA-10AES FPGA update settings)
① Enter the IP address
② Select a Slot
③ Select FA-10AES-*
④ Select FPGA
⑤ Select a File
⑥ Click Update
