3-2-3. FA-10AES-UBLC
The FA-10AES-UBLC option is an additional PWA cable that attaches to the FA-10AES-UBL.
The FA-10AES-UBLC can be attached after the FA-10AES-UBL is mounted.
Connect the PWA cable connector to CN9 (Fig. 8). Secure the option card to the rear panel
with the binding screws removed in Common Installation/Removal Procedure.
Connect FA-10AES-UBLC PWA connector 109 to CN9.
FA-10AES-UBLC
FA-10AES-UBL
CN8
Bundle FA-10AES-UBL and
FA-10AES-UBLC PWA cables.
FA-1010 MAIN CARD
CN9
AES CARD

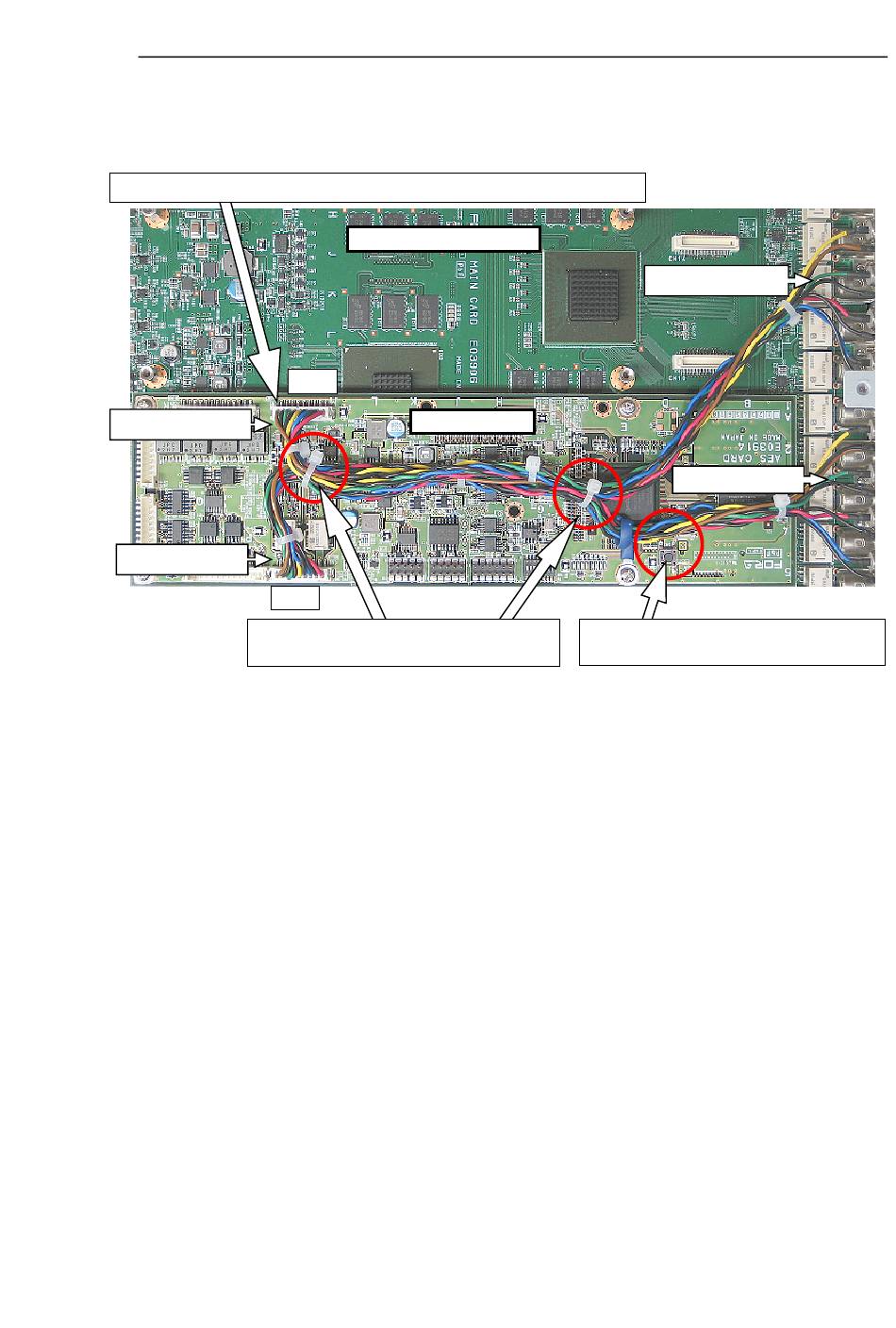

Fig. 8 FA-10AES-UBLC PWA Wiring
Make sure the FA-10AES-UBL PWA
cables are not touching switches.
11
FA-10AES-UBLC
FA-10AES-UBL
