3-2-4. FA-10ANA-AUD
* The FA-10ANA-AUD can only be installed into Slot D, not to other slots.
Connect PWA connectors as shown below (Fig. 9). Secure the option card to the rear panel
with the binding screws removed in Common Installation/Removal Procedure.
Connect PWA connector
121 to CN21.
CN21
CN22
Connect PWA connector
122 to CN22.
After the installation is complete, set DIP switch DS2-2 to ON.
Keep the PWA cables away from the power unit.
Fasten the PWA cables to the top of studs with
blue fastening cords and 3x6 bind screws to
keep the PWA away from the power unit.
Bundle cables.

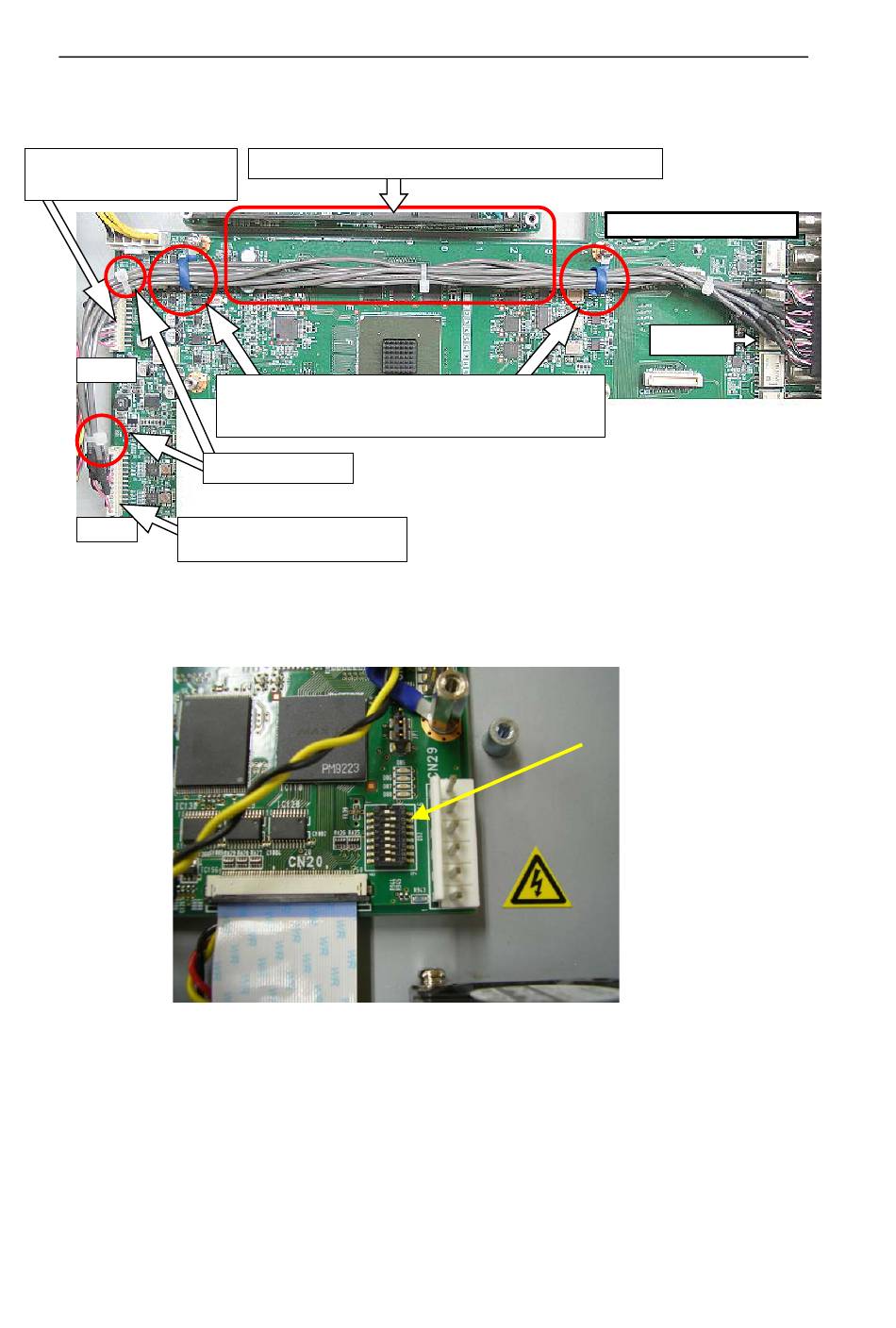

Fig. 9 FA-10ANA-AUD PWA Wiring
Fig. 10 Set DIP switch DS2-2 to ON
12
FA-1010 MAIN CARD
SLOT D
