Programming Guide | VLT® Aqua Drive FC 202
26-61 Terminal X42/11 Min. Scale
Default value: 0%
Setup: All setups
Data type: Int16
Scale the minimum output of the selected analog signal at terminal X42/11 as a percentage of the maximum signal level. For example,
if 0 V (or 0 Hz) is required at 25% of the maximum output value, program 25%. Scaling values up to 100% can never be higher than the
corresponding setting in parameter 26-62 Terminal X42/11 Max. Scale.
26-62 Terminal X42/11 Max. Scale
Default value: 100%
Setup:
All setups
Data type: Int16
Scale the maximum output of the selected analog signal at terminal X42/11. Set the value to the maximum value of the voltage signal
output. Scale the output to give a voltage lower than 10 V at full scale; or 10 V at an output below 100% of the maximum signal value. If
10 V is the required output current at a value between 0–100% of the full-scale output, program the percentage value in the parameter,

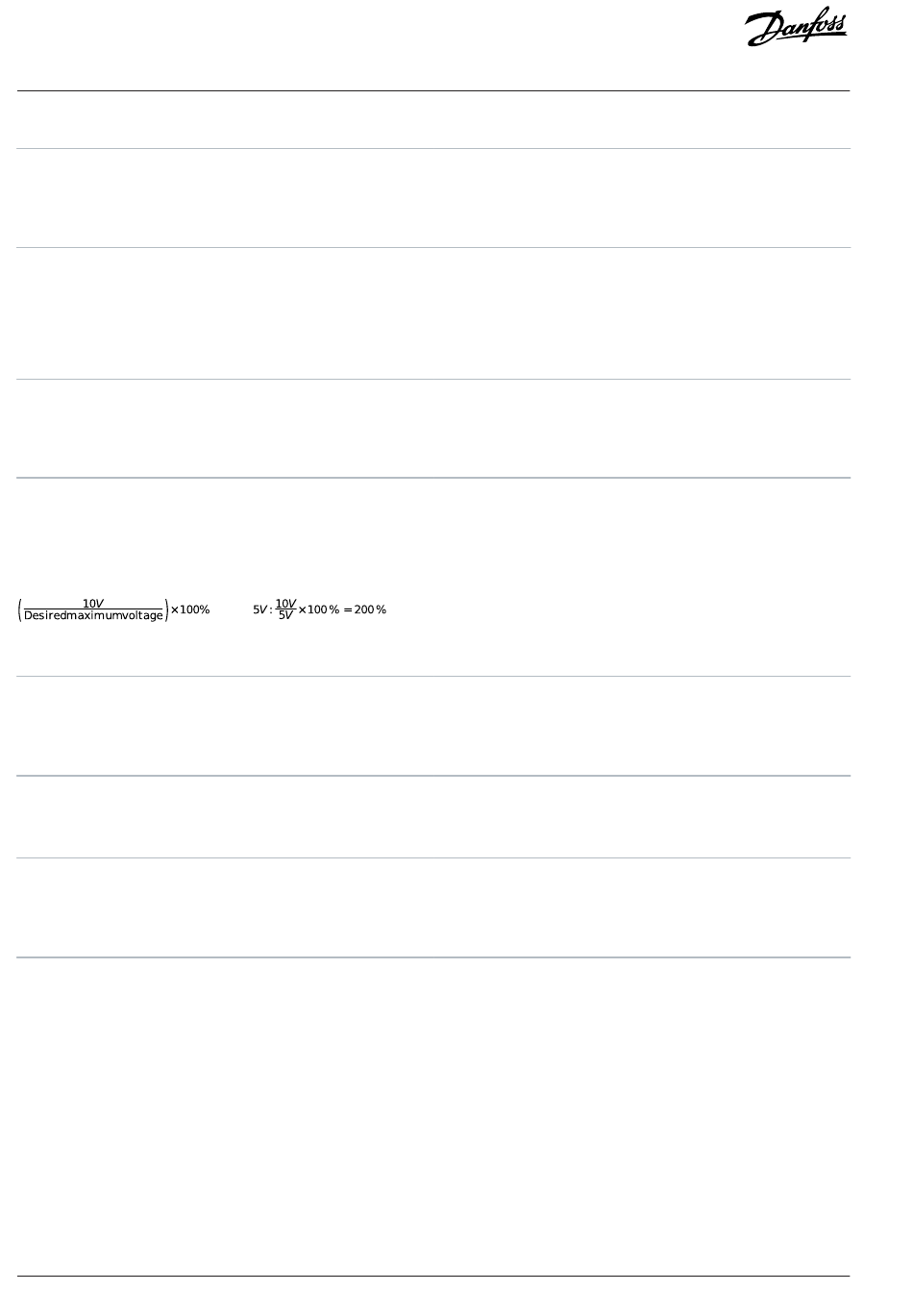

that is 50%=10 V. If a voltage 0–10 V is required at maximum output, calculate the percentage as follows:
26-63 Terminal X42/11 Bus Control
Default value: 0%
Setup: All setups
Data type: N2
Holds the level of terminal X42/11 if controlled by bus.
26-64 Terminal X42/11 Timeout Preset
Default value:
0%
Setup: 1 setup
Data type:
Uint16
Holds the preset level of terminal X42/11. If a fieldbus and a timeout function are selected, the output presets to this level.
5.26

Parameter Group 27-** Cascade CTL Option

5.26.1

Introduction to Cascade Controller Option Parameters

Parameter group 27-** Cascade CTL Option is available if 1 of the following conditions is met:
VLT® Extended Cascade Controller MCO 101 is installed.
l
VLT® Advanced Cascade Controller MCO 102 is installed.
l
The drive was ordered with type code LXX1.
l
574 | © 2024.06
that is
Parameter type:
Conversion index:
Change during operation:
Parameter type:
Conversion index:
Change during operation:
Parameter type:
Conversion index:
Change during operation:
Parameter type:
Conversion index:
Change during operation:
Parameter Descriptions
Range, 0 - 200%
-2
True
Range, 0 - 200%
-2
True
Range, 0 - 100%
-2
True
Range, 0 - 100%
-2
True
