Programming Guide | VLT® Aqua Drive FC 202
Speed
Ramp (X) S-Ramp
Ratio at Accel.End
Linear
Ramp (X)
S-Ramp
Jerk compensated
Ratio at
Accel.End
Ramp (X)
Up Time

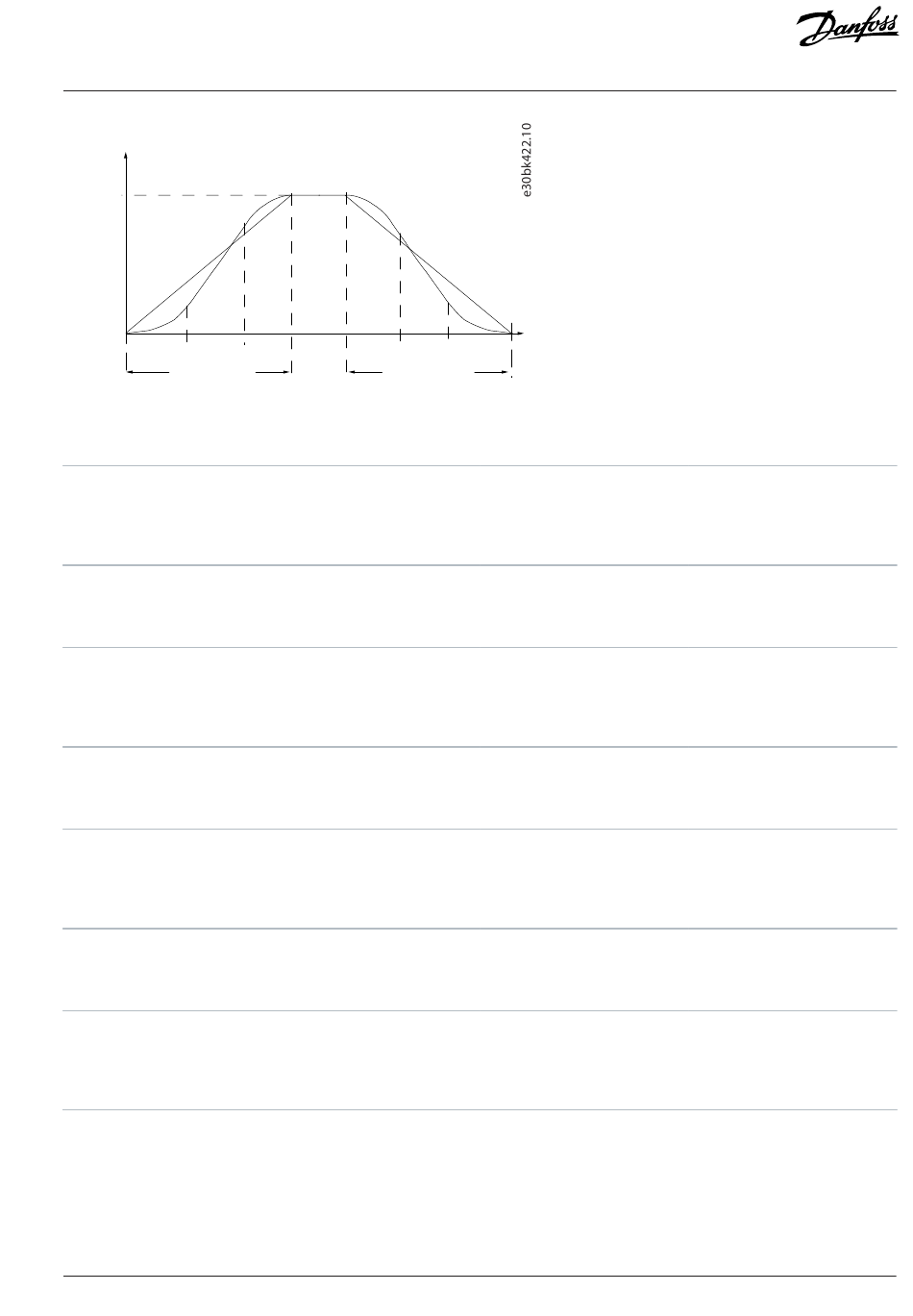

Figure 113: Non-linear Ramping Times
24-40 Emergency Mode Ramp Up Time
Default value: 3 s
Setup: All setups
Data type: Uint32
This ramp time is used for acceleration while emergency mode is active.
24-41 Emergency Mode Ramp Down Time
Default value:
3 s
Setup: All setups
Data type:
Uint32
This ramp time is used for deceleration while emergency mode is active.
24-41 Emergency Mode Ramp Down Time
Default value: 3 s
Setup: All setups
Data type: Uint32
This ramp time is used for deceleration while emergency mode is active.
24-42 Timeout for Emergency Mode Test
Default value: 10 min
Setup:
All setups
Data type: Uint8
© 2024.06
Ramp (X) S-Ramp
Ratio at Dec.End
Ramp (X)
S-Ramp
Ratio at
Dec.End
Ramp (X)
Down Time
Parameter type:
Conversion index:
Change during operation:
Parameter type:
Conversion index:
Changes during operation:
Parameter type:
Conversion index:
Changes during operation:
Parameter type:
Conversion index:
Change during operation:
Parameter Descriptions
Range, 1.0 - 3600 s, Array [8]
-2
True
Range, 1.0 - 3600 s, Array [8]
-2
True
Range, 1.0 - 3600 s, Array [8]
-2
True
Range, 1 - 60 min
70
True
AU361182657213en-002101 / 130R0338 | 541
