2. Installation
2.1. Mounting
2.1.1. Valve manifold connection
Connect the valve manifold with the 2 screws on the SI Unit. (Hexagonal socket wrench size 2.5 mm)
Note
Tighten the screws while holding the SI Unit and the valve manifold so that there is no gap between
them.
Tighten the screws with the tightening torque specified. (Tightening torque: 0.6 Nm)
For a protection rating of IP67 to be ensured, apply the recommended tightening torque.
Mount the SI Unit to the valve manifold before applying power.
2.1.2. Valve manifold mounting
The SI Unit does not have any holes for mounting purposes.
Refer to the relevant valve manifold manual for mounting details.
SI Unit

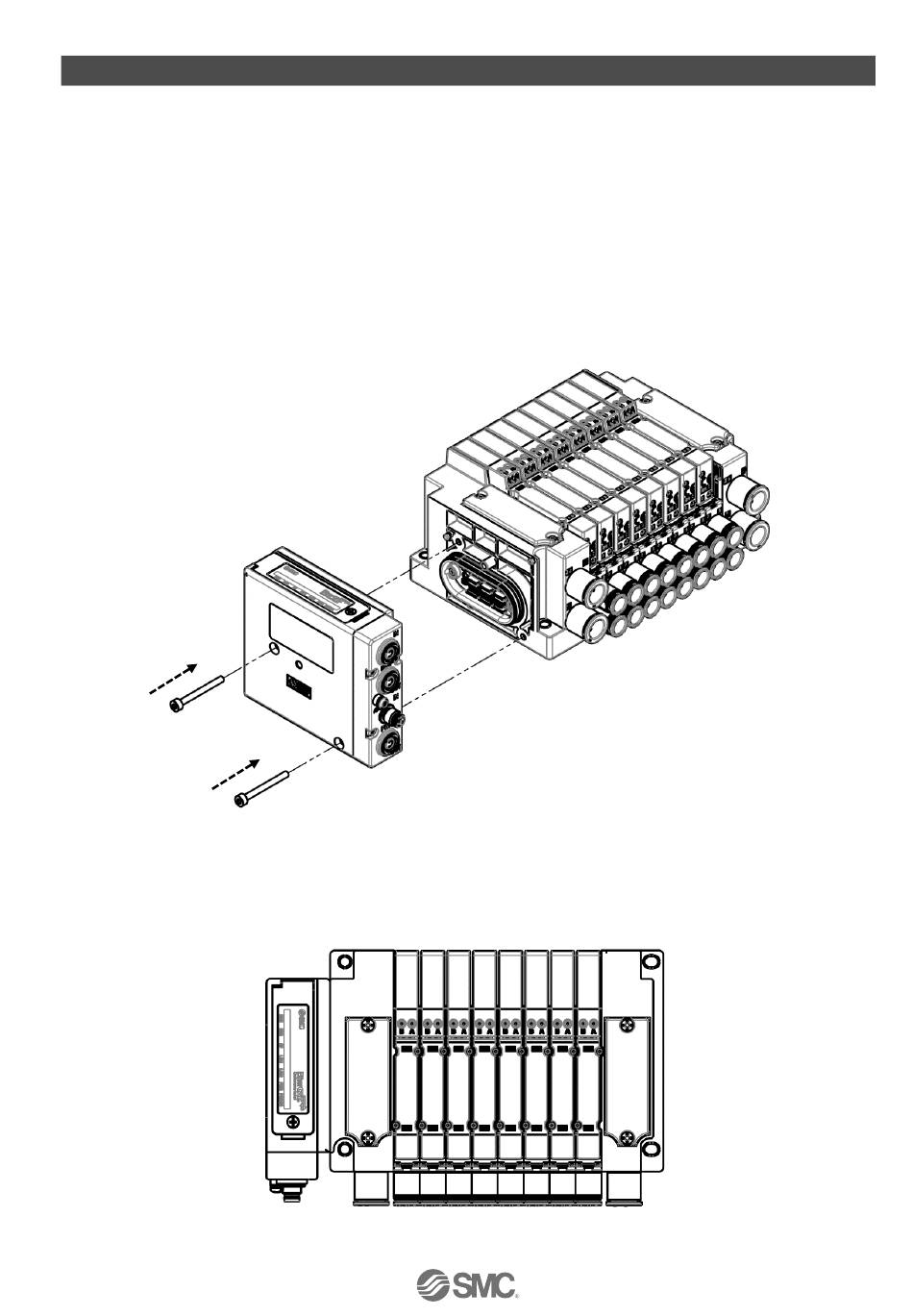

Fig 2-1. Valve manifold connection
Fig 2-2. Top view of the valve manifold
-12-
Valve manifold
No.DOC1041432
