1.2. Parts and description
No.
Item
Communication connector
1
(ECAT IN)
Communication connector
2
(ECAT OUT)
Power connector
3
(PWR IN)
Power connector
4
(PWR OUT)
5
FE terminal
6
LED display
7
Valve manifold connection
8
Mounting hole
9
Product information label
Accessories
No.
Item
Hexagon socket head cap
1
screw
2
Seal cap
EtherCAT
connection. (M8 4-pin socket, A-coded)
®
Refer to
Section
2.2.1.
EtherCAT
connection. (M8 4-pin socket, A-coded)
®
Refer to
Section
2.2.1.
Power supply for control and valves. (M8 4-pin plug, A-coded)
Refer to
Section
2.2.2.
Power supply for control and valves. (M8 4-pin socket, A-coded)
Refer to
Section
2.2.2.
Functional earth. (M3 screw) Refer to
LED display to indicate the status of the SI Unit.
Refer to
Section
6.1.
Connection for the valve manifold.
Mounting hole for connection to the valve manifold.
Please refer to operation manual of valve for details on installation,
mounting, etc..
Information label to indicate the SI Unit details such as software
version or serial number etc..
2 pcs. M3 x 30 screw for connection to the valve manifold.
2 pcs. M8 seal cap for unused communication and power connectors.
Refer to
Section
8.

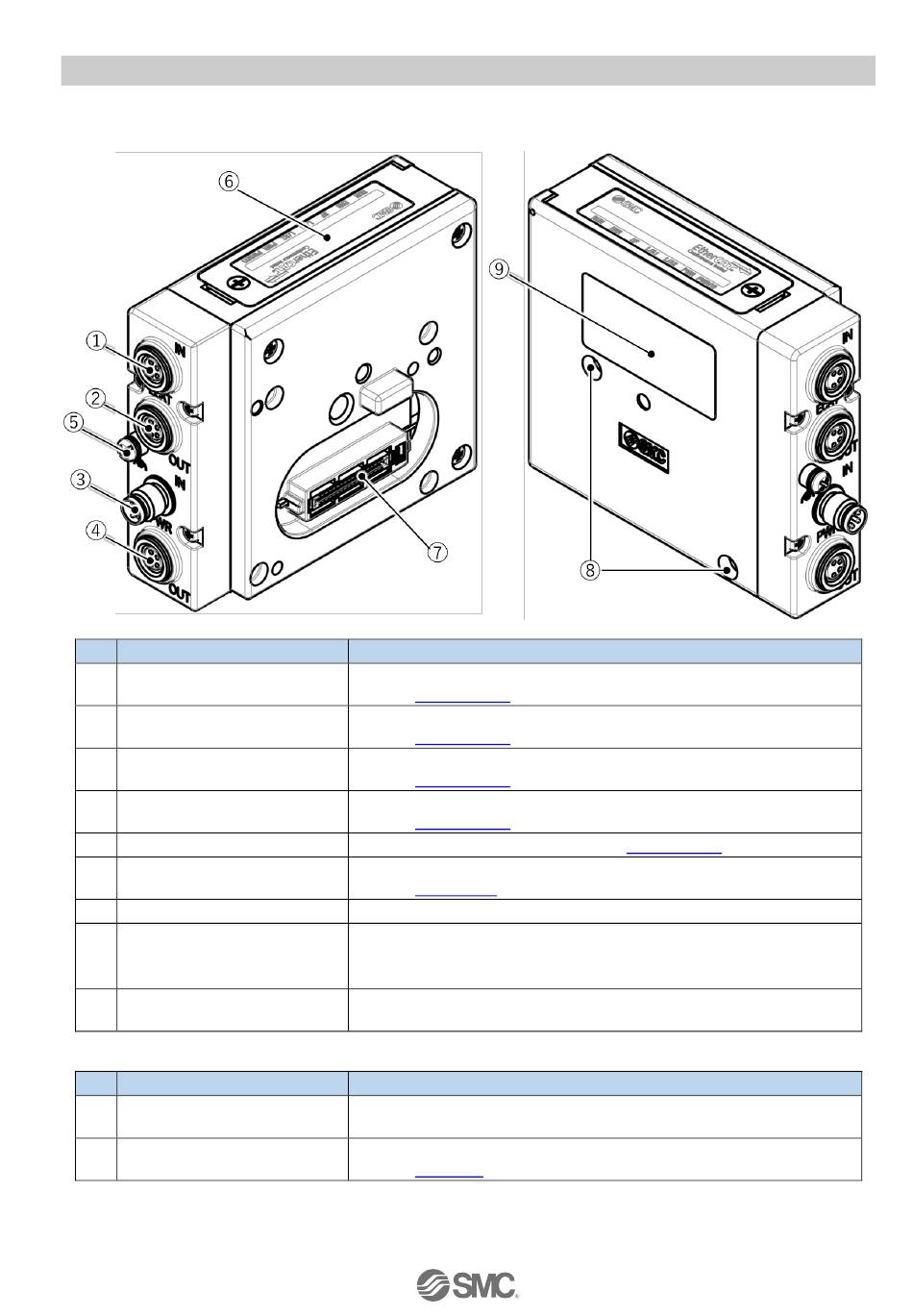

Fig 1-1. Parts and description
-11-
Description
Section
2.2.3.
Description
No.DOC1041432
