M 1

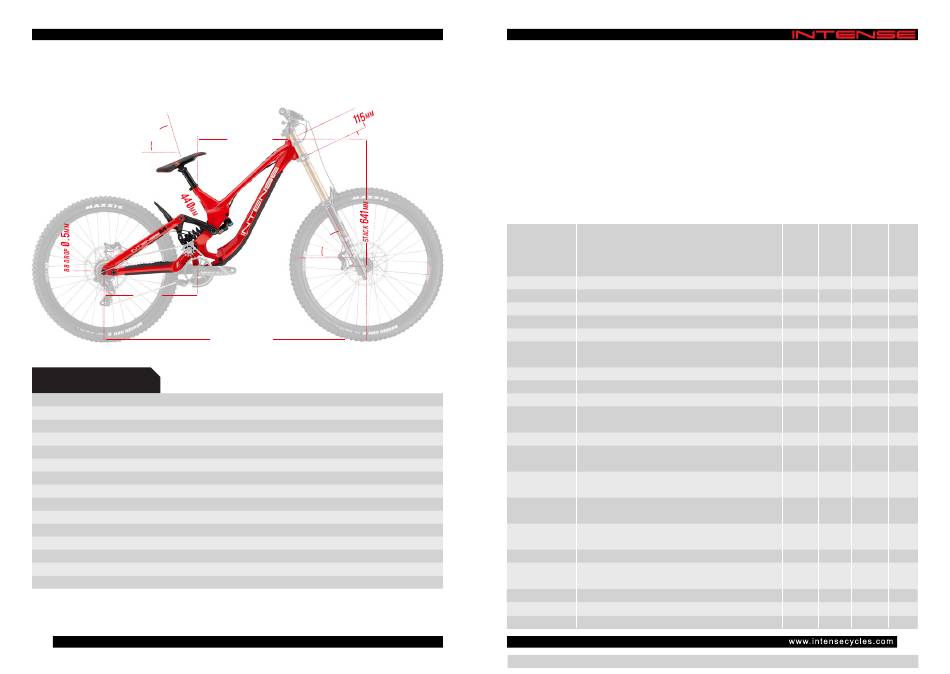

GEOMETRY
CHART
75º
SIZE LARGE SHOWN
445
MM
WHEELBASE
M1 PRO / M1 EXPERT
SIZE SMALL
WHEELBASE 1243MM
TOPTUBE 593MM
CHAINSTAY 445MM
HEADTUBE LENGTH 100MM
HEADTUBE ANGLE 63°
REACH 430MM
STACK 628MM
BB HEIGHT 355MM
BB DROP 0.5MM
SEATTUBE ANGLE (EFFECTIVE) 75°
SEATTUBE ANGLE (ACTUAL) 57°
SEATTUBE LENGTH 405MM
STANDOVER HEIGHT 812MM
FORK AXLE TO CROWN 605MM
*SHOCK POSITIONS: LINEAR = 27% PROGRESSION WITH 203MM OF TRAVEL
PROGRESSIVE = 31% PROGRESSION WITH 212MM OF TRAVEL
52
480
REACH MM
63º
1290
MM
MEDIUM LARGE EXTRA LARGE
1263MM 1290MM 1310MM
613MM 637MM 662MM
445MM 445MM 445MM
100MM 115MM 115MM
63° 63° 63°
450MM 470MM 490MM
628MM 641MM 641MM
355MM 355MM 355MM
0.5MM 0.5MM 0.5MM
75° 75° 75°
57° 57° 57°
405MM 440MM 440MM
814MM 821MM 822MM
605MM 605MM 605MM
B I K E C A R E

MAINTENANCE SCHEDULE

You have purchased a high-performance bicycle which requires a certain level
of service and maintenance to sustain the level of performance your frame
was designed around. Proper care will also ensure the bike is safe to ride at all
levels. It is important to read and understand the information as well as follow the
maintenance schedule and inspect your bicycle before each ride. These will not
only help to limit or avoid costly repairs but will also help to avoid injury due to
service neglect and component failure.
ACTION
GENERAL CLEAN COMPLETE BIKE OF MUD AND DEBRIS
HEADSET CHECK ADJUSTMENT
TORQUE CHECK INSPECT & TORQUE ALL BOLTS
BRAKES SQUEEZE BRAKE LEVERS & CONFIRM FUNCTION
CHAIN CLEAN & LUBRICATE
TIRES CHECK AIR PRESSIRE, INSPECT TREAD &
SIDEWALLS FOR TEARS AND PUNCTURES
FORK & SHOCK CHECK AIR PRESSURE, INSPECT FOR LEAKS
WHEELS INSPECT FOR DAMAGE & CHECK SPOKE TENSION
DERAILLEUR CHECK HANGER, INSPECT CABLES AND LUBE
HEADSET DISASSEMBLE STEM, HEADSET AND FORK
CHECK BEARINGS FOR PITTING AND WEAR
FORK & SHOCK SUSPENSION SEAL SERVICE OR OIL CHANGE
FRAME PIVOTS REMOVE PIVOT BOLTS, CHECK BEARINGS FOR
PITTING & WEAR, CLEAN ALL BEARING SURFACES
BRAKES INSPECT BRAKE PADS AND ROTORS FOR WEAR,
REPLACE IF NEEDED FOR PITTING AND WEAR
CHAIN INSPECT FOR DAMAGE AND CHECK WEAR,
REPLACE IF NEEDED
HUBS REMOVE WHEELS AND CHECK HUB BEARINGS
FOR PITTING AND WEAR
TIRES TUBELESS SEALANT REFRESH
BOTTOM REMOVE CRANKARMS AND CHECK BB BEARINGS
BRACKET (B/B)
FOR PITTING AND WEAR
SEATPOST CLEAN AND REGREASE INTERFACE WITH FRAME
FORK & SHOCK DAMPER SERVICE
GENERAL COMPLETE BIKE TUNE-UP
25 100 250
EVERY
RIDE MILES MILES MILES
OR OR OR
1 MTH 3 MTHS 1 YR
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
