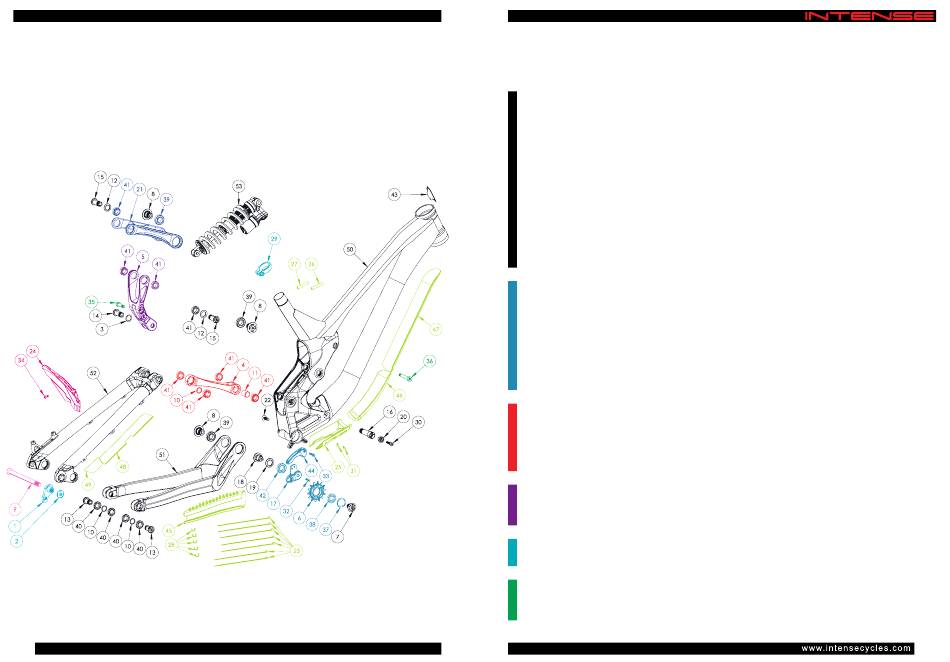

PARTS KITS
62
HARDWARE KIT IT150230
3 130921
7 130927
8 130930
12 130936
13 130937
14 130938
15 130939
16 130940
18 130942
19 130943
20 130944
30 410039
I DLER GUIDE KIT IT150231
6 130926
17 130941
32 410091
33 410093
37 420041
38 430009
44 500537
LINK KIT LOWER IT150232
4 130922
10 130934
11 130935
41 430071
LINK KIT UPPER IT150234
5 130925
41 430071
SEAT COLLAR IT150168
29 340339
SHOCK MOUNT KIT IT150235
35 410095
36 410096
Hardware Kit Complete M1 2024
Washer 15 x 21 x 1
Bolt M15 x 1 x 14.4, Idler
Bolt M17 X 1.5, Main Frame
Washer 15.10 x 24 x 2.5
Bolt M15 X 1.25 x 25
Bolt M15 X 1.25 x 34
Bolt M15 X 1.25 x 35
Bolt M15 X 1.25 x 53
Idler Bracket_Gen3
Idler Washer, 28.2 x 17.4 x 3
Collet Cone Adjuster, 18.5 OD x 9.5mm Tall, M1 DH, Blk
SHCS, Socket Head, M6 x 25
Idler Pulley/Chain Guide Kit M1 2024
Idler Pulley 14T
Idler Plate_Gen3
Screw Flat Head Torx M5 X 0.8 X 16
Low-Profile Socket Head Screw, M5 x 0.8 x 20
Idler Retaining Ring
Bearing 6902-LLU-MAX, 15 x 28 x 7
Chain Guide Front, M1
Link Kit Lower Shock Link M1 2024
Lower Shock Link, M1
Spacer 15.2 x 18 x 2.1
Spacer 15.2 x 18 x 20
Bearing 3802 LLU MAX-E 15 x 24 x 7/10
Link Kit Upper Shock Link Dual Position M1 2024
Top Shock Link Dual Position, M1
Bearing 3802 LLU MAX-E 15 x 24 x 7/10
Seat Collar Kit M1 2024
Seat Clamp, GW #CSC0040
Shock Mount Kit M1 2024
Bolt SHCS M8 x 1.25 x 32
Bolt SHCS M8 x 1.25 x 55
