Geometry Charts - Intense M 2022 Series Manual

M 2 9

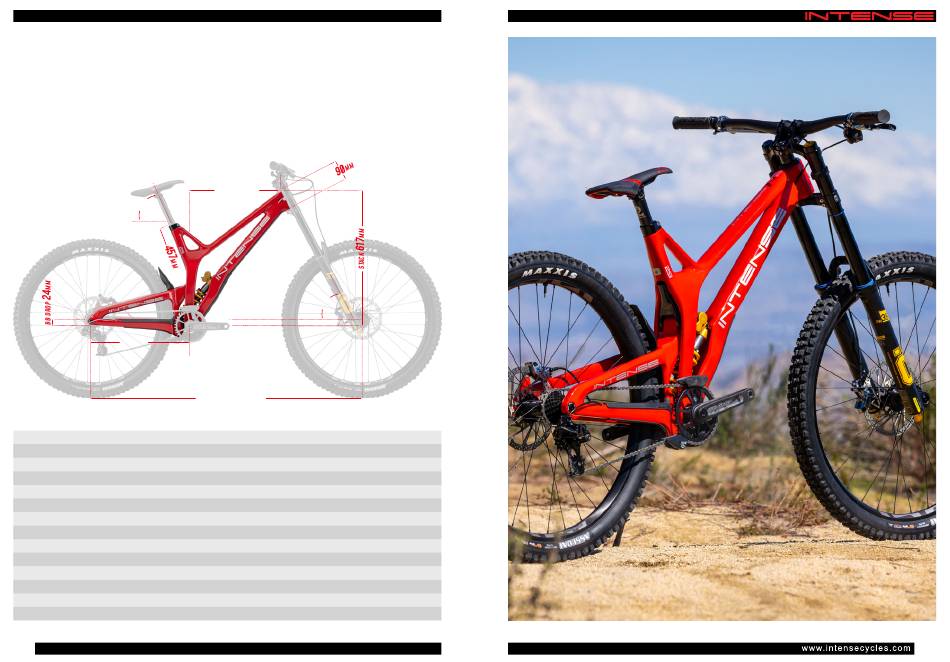

GEOMETRY
CHARTS
SIZE LARGE PRO SHOWN
76.5º
456
MM
SIZE MEDIUM
WHEELBASE 1251MM / 49.3"
TOPTUBE LENGTH 574MM / 22.6"
CHAINSTAY LENGTH 456MM / 17.95"
HEADTUBE LENGTH 90MM / 3.54"
HEADTUBE ANGLE 62.7˚
REACH 426MM / 16.8"
STACK 617MM / 24.3"
BB HEIGHT 353MM / 13.9"
BB DROP 24MM / 0.95"
SEATTUBE ANGLE (EFFECTIVE) 76.5˚
SEATTUBE LENGTH 457MM / 18"
STANDOVER HEIGHT 815MM / 32.1"
AXLE TO CROWN HEIGHT 602MM / 23.7"
42
441
REACH MM
62.7º
1266
WHEELBASE MM
LARGE EXTRA LARGE
1266MM / 49.8" 1307MM / 51.5"
589MM / 23.2" 629MM / 24.8"
456MM / 17.95" 456MM / 17.95"
90MM / 3.54" 115MM/ 4.53"
62.7˚ 62.7˚
441MM / 17.4" 471MM / 18.5"
617MM / 24.3" 639MM / 25.2"
353MM / 13.9" 353MM / 13.9"
24MM / 0.95" 24MM / 0.95"
76.5˚ 76.5˚
457MM / 18" 457MM / 18"
815MM / 32.1" 826MM / 32.5"
602MM / 23.7" 602MM / 23.7"
43
