- Page 2 WELCOME TO THE REGISTER YOUR BIKE AT: www.intensecycles.com/pages/registerbike INTENSE FAMILY! CONGRATULATIONS ON YOUR NEW INTENSE 951 TRAIL BIKE! AT INTENSE WE HAVE FOR TECHNICAL ASSISTANCE: ONE GOAL - Email info@intensecycles.com Phone +1 951-307-9211 TO PROVIDE THE RIDE OF YOUR LIFE!

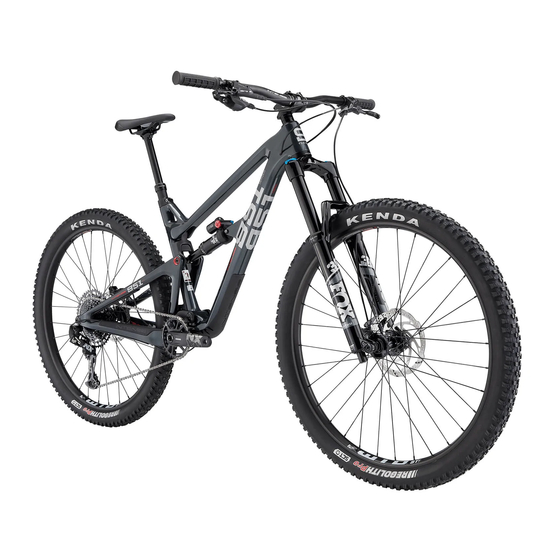

- Page 3 SHIFTER Featuring a lightweight full carbon frame, rolling on 29” wheels, and with 140/150mm of suspension travel the INTENSE 951 TRAIL is the ultimate all-round mountain bike… in fact it might be the only bike you’ll ever need. SADDLE TOPTUBE...
- Page 4 10. 5mm HEX/Allen driver 20. Torx 25 tool 11. 6mm HEX/Allen driver 21. INTENSE Shock Pump WANT TO GO TUBELESS? Your WTB wheels are tubeless ready and you will find two small bottles of tubeless sealant, one for each wheel contained within the bike box.
- Page 5 INTENSE 951 TRAIL SETUP GUIDE Your new 951 TRAIL is almost ready to go, you just need to do a few things to get your bike ready for the ride.
- Page 6 STEP 01 REMOVE WHEELS AND PREPARE BIKE The packaging sections are individually Remove the toolbox and accessories Replace the faceplate of the stem and When tightening the bolts follow this numbered to make it easy for you to and place nearby. Carefully remove the reinsert the bolts, firstly by hand and pattern to ensure even clamping: top remove everything in the right order.
- Page 7 STEP 04 STEP 05 INSTALL DERAILLEUR INSTALL THE REAR WHEEL POSITION AT 70° DERAILLEUR B SCREW TO THE AXLE Remove the orange plastic brake pad There is a integrated metal lever that sits Move to the rear of the bike and cut off At this point be careful that the notch spacer.
- Page 8 STEP 07 RUN THROUGH THE GEARS Now is a good time to run through the gears to check that they are working correctly. To do this turn the cranks (where the pedals are attached) so that the wheel begins to spin, with your hand shift through the gears (being careful not to trap PUSH TOWARD THE FRONT OF THE BIKE...
- Page 9 STEP 09 ADJUST SADDLE HEIGHT Set the height of your saddle (seat) with your seatpost in its fully extended position. Using a 4mm Allen key loosen the seatpost clamp and adjust the seatpost to the correct height. A good base measurement is to stand next to your bike in riding shoes, putting your hand against the top of your hip bone the palm of your hand should be level with the top of the saddle.
- Page 10 The recommended settings below are designed to be a starting point, in order to get you out STEP 12 on your first ride in as few steps as possible. As you ride and get used to your new fork, adjust your settings as explained in step 13.
- Page 11 STEP 13 FOX PERFORMANCE FLOAT DPX2. REAR SUSPENSION SETUP 3-POSITION (OPEN, TRAIL, LOCK-OUT) SUGGESTED STARTING POINTS FOR SETTING UP YOUR SHOCK RIDER WEIGHT AIR PRESSURE REBOUND (lbs/kgs) (psi) (clicks out from fully closed) Closed is Clockwise Open is Counterclockwise COMPRESSION 100lbs / 45kgs ADJUSTMENTS AIR VALVE CAP.
- Page 12 These drawings, any and all specifications and data herein contained and the products manufactured in accordance with the said drawings, specifications and data are the exclusive property of Intense Cycles of Temecula, CA (USA), in accordance with the provisions of the National laws and International Conventions UNTOLERANCED LENGTH DIMENSIONS (mm) for the protection of Intellectual Property.
- Page 13 WTB ST i30 Alu. 30mm SHOCK SPECS TIRES Kenda Regolith 29” x 2.40” PEDALS Platform SEATPOST INTENSE Recon Dropper 125mm Travel (S), 150mm Travel (M,L), Rear Shock Eye-to-Eye: 210mm 170mm Travel (XL) Stroke: 50mm SADDLE (SEAT) Fizik Terra Alpaca X5, Alloy Rails...
- Page 14 If you discover damage in any degree it’s best to have your frame inspected by a qualified INTENSE, LLC dealer. Any direct impact to the frame can cause serious structural damage. • Use high-grade waterproof grease on seat post, BB and headset bearing contact areas with the carbon.
- Page 15 INTENSE 951 TRAIL ITEM PART No. DESCRIPTION QTY. TORQUE SPEC. PARTS LISTINGS Crush Tube 130758 Crush Tube Lower Link Bearing Cap 24mm OD 130765 Cap Bearing Blk Bearing Cap 130778 Cap Bearing Blk Hanger 130790 Hanger Derailleur Forged Blk Bolt Main Pivot 130791 Bolt Main Pivot 1.5t Expander Blk...
- Page 16 IT150024 Cap Bearing Blk AXLE KIT IT150125 Axle Kit Rear CNC 148 x 12 Boost With Hidden Lever 951 Series TRAIL IT150024 Spacer Cone Adjuster Blk, 8.3mm Height 130899 M12 x P1.0 x 172mm (148 x 12mm) QR491, Wheel Axle Kit...
- Page 17 N E E D H E L P ? DO NOT RETURN TO THE STORE call us at: +1 951.307.9211 or email: info@intensecycles.com our rider support team looks forward to helping with any questions.
