K N O W Y O U R M 1
5

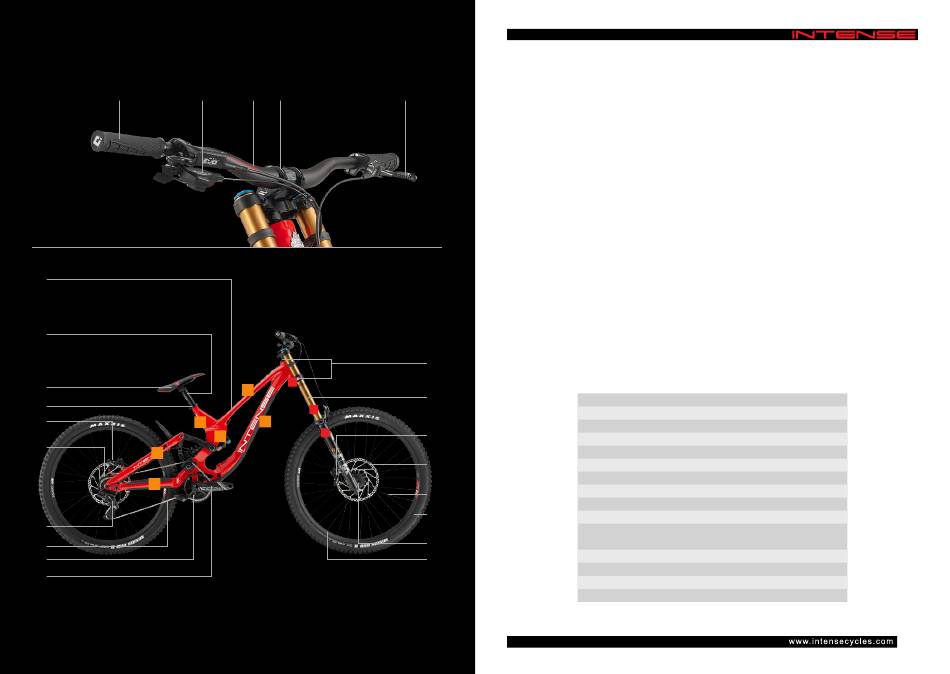

COMPONENT
BREAKDOWN
1
2
3
4
5
6
7
8
16
9
17
18
19
20
21
22
23
10
Rear brake
11
Grips Cassette
12
Shifter Rear derailleur
13
Handlebars Chain
14
Stem Chainring
15
Brake lever Crankset
16
Frame Headset
17
Suspension Fork
01 Toptube
02 Downtube A Fork crown
03 Seattube B Stanchion
04 Chainstay C Lower leg
18
Front brake
05 Seatstay
19
Rotor
06 Rear shock
20
Spoke
21
Seatpost Tire
22
Saddle (seat) Thru axle
23
Seatpost clamp Rim
Model: INTENSE M1
Model Year: 2024
Frame Travel: 203mm (linear) 212mm (progressive)
Compatible Forks: Dual Crown Only
Headset: ZS56/ ZS56
Seattube Diameter: 31.6mm
BB Shell Width: 83mm, BSA Threaded
Recommended Max Tire Width: 2.5"
Brakes: Disc Brake Hydraulic. Post mount/direct
Max Brake Rotor Size: 223mm (with adapter)
Rear Hub: 157x12mm Through Axle
SUPER BOOST
Rear Shock Eye-to-Eye: 250mm
Stroke: 75mm
Mounting Bushing Width Front: 8x40mm
Mounting Bushing Width Rear: 8x20mm
