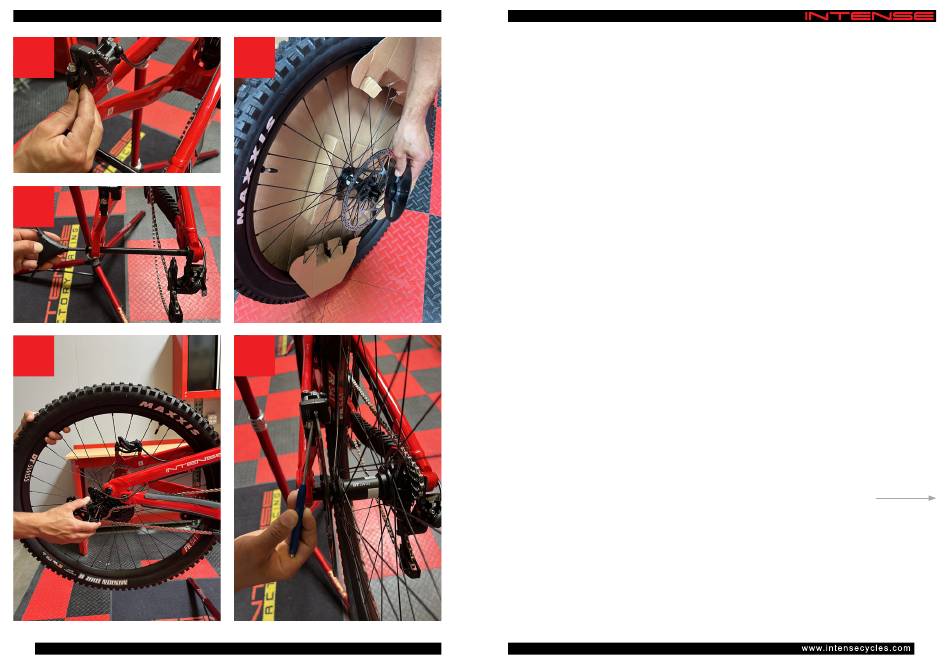

S T E P 4
INSTALL
REAR WHEEL
Take out the rear brake pad spacer (A). Once removed
be careful not to squeeze the brake lever until the rear
wheel is in position. Remove the rear axle using a
6mm Allen key (B).
Remove any packaging left on the rear wheel,
including the large black plastic rotor guards (C). Be
careful that the metal wheel spacers don't get pulled
off by accident. If they do just press them back into
position. Do not touch the brake rotors with your
hands or gloves, as any small amount of grease may
contaminate them.
PRO BUILD: Position the chain on the smallest cog
of the cassette (D). Gently pull back on the derailleur
while installing the wheel.
EXPERT BUILD: Position the chain on the smallest
cog of the cassette. The derailleur will already be in its
'locked' position making it easier for you to install the
wheel.
Carefully line up the cassette and rotor with the rear
brake making sure that it slides inside the caliper body
between the brake pads (E). The hub spacers slide
into the slots in the frame dropouts.
