Torque Specifications - Intense M1 PRO Manual

10 Nm / 90 in-lbs
M8 HEX, 7 Nm / 60 in-lbs
M5 HEX, 14 Nm / 125 in-lbs
64
6 to 8 Nm / 53 to 70 in-lbs

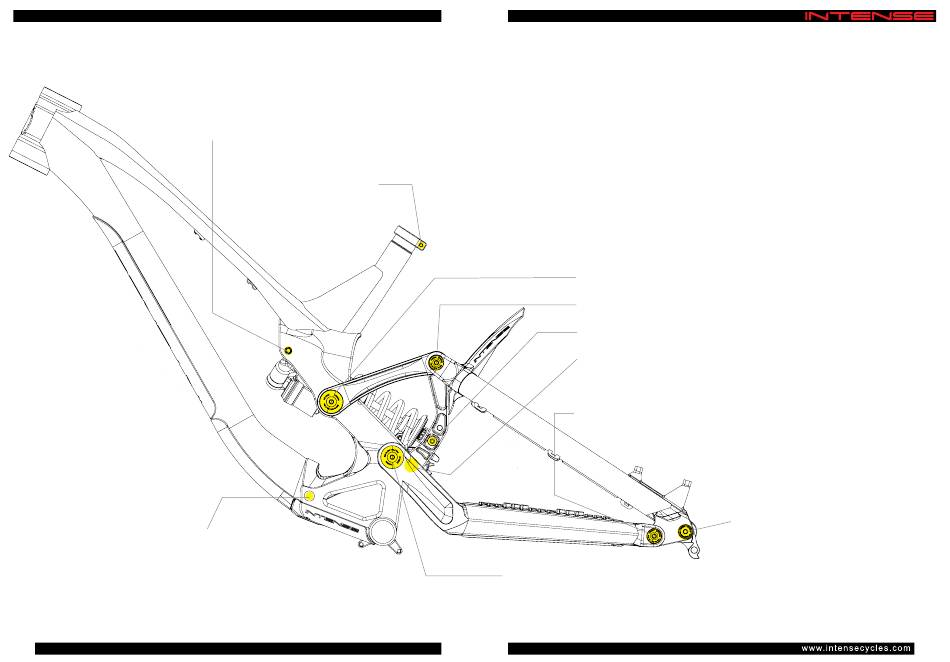

TORQUE SPECIFICATIONS

Achieving correct torque is vital to ensuring the proper performance and function
of the M1 frame. Failure to do so could result in suboptimal performance of your
frame as well as premature wear and tear of individual parts. In addition to this
chart, torque values are laser etched onto corresponding hardware for your
reference.
22.5 Nm / 200 in-lbs
20 Nm / 180 in-lbs
10 Nm / 90 in-lbs
20 Nm / 180 in-lbs
This bolt connects Top Shock mounting Link to
Lower shock link (hidden by front triangle)
20 Nm / 180 in-lbs
T25 Torx Drive, Idler Plate to Idler bracket: Screw Flat Head Torx: 8 to 10 Nm / 70 to 90 in-lbs
*Work up to Torx Torque value, avoid stripping head, start below 8: work up to torque.
M6 HEX, Idler Bolt to Idler Plate: 16 Nm / 140 in-lbs
M4 HEX, Chain guide to Idler Plate: 4 Nm / 35 in-lbs
M6 HEX, Bolt (non-drive side): 22.5 Nm / 200 in-lbs
Rear Derailleur Cap: 11 Nm / 100 in-lbs
Axle (non-drive side): 11 Nm / 100 in-lbs
65
