Geometry Charts - Intense TRACER 279 EXPERT Manual

T R A C E R
GEOMETRY
CHARTS

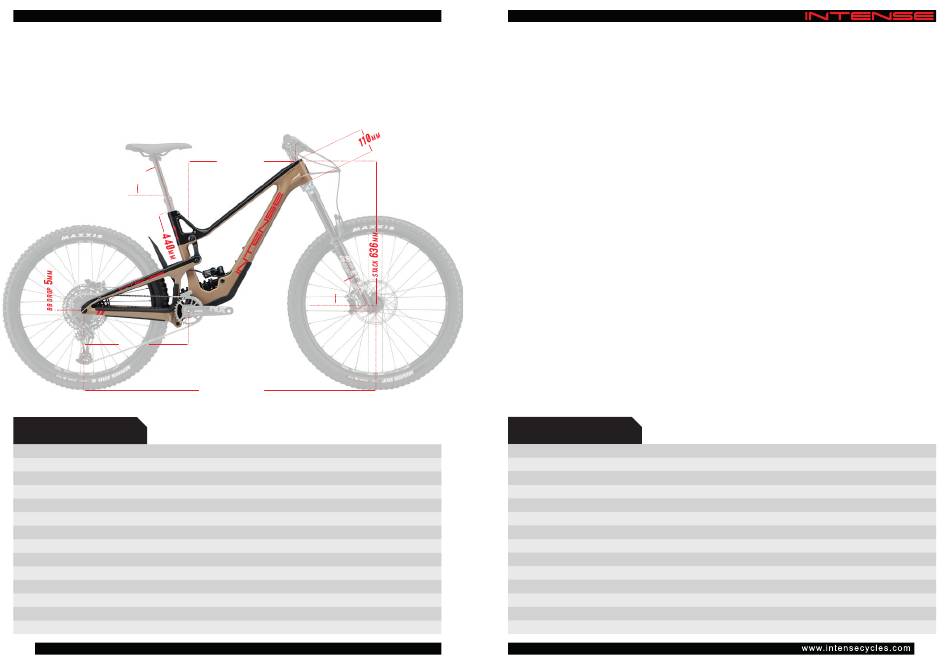

SIZE LARGE (HI) SHOWN
77.9º
437
MM
HI SETTING
SIZE SMALL
WHEELBASE 1193MM / 47"
TOPTUBE LENGTH 557MM / 22"
CHAINSTAY LENGTH 437MM / 17.2"
HEADTUBE LENGTH 90MM / 3.54"
HEADTUBE ANGLE 64.5˚
REACH 425MM / 16.7"
STACK 618MM / 24.3"
BB HEIGHT 349MM / 13.75"
BB DROP 5MM / 0.2"
SEATTUBE ANGLE (EFFECTIVE) 77.9˚
SEATTUBE ANGLE (ACTUAL) 72.9˚
SEATTUBE LENGTH 385MM / 15.2"
STANDOVER HEIGHT 803MM / 31.6"
52
480
REACH MM
64.5º
1257
WHEELBASE MM
MEDIUM LARGE EXTRA LARGE
1228MM / 48.3" 1257MM / 49.5" 1286MM / 51"
589MM / 23.2" 617MM / 24.3" 644MM / 25.4"
437MM / 17.2" 437MM / 17.2" 437MM / 17.2"
100MM / 3.94" 110MM / 4.33" 120MM / 4.72"
64.5˚ 64.5˚ 64.5˚
455MM / 17.9" 480MM / 18.9" 505MM / 19.9"
627MM / 24.7" 636MM / 25" 645MM / 25.4"
349MM / 13.75" 349MM / 13.75" 349MM / 13.75"
5MM / 0.2" 5MM / 0.2" 5MM / 0.2"
77.9˚ 77.9˚ 77.9˚
72.9˚ 72.9˚ 72.9˚
418MM / 16.5" 440MM / 17.3" 465MM / 18.3"
807MM / 31.8" 807MM / 31.8" 807MM / 31.8"
LO SETTING
SIZE SMALL
WHEELBASE 1195MM / 47"
TOPTUBE LENGTH 559MM / 22.1"
CHAINSTAY LENGTH 439MM / 17.3"
HEADTUBE LENGTH 90MM / 3.54"
HEADTUBE ANGLE 64.0˚
REACH 420MM / 16.5"
STACK 622MM / 24.5"
BB HEIGHT 342MM / 13.5"
BB DROP 12MM / 0.5"
SEATTUBE ANGLE (EFFECTIVE) 77.4˚
SEATTUBE ANGLE (ACTUAL) 72.4˚
SEATTUBE LENGTH 385MM / 15.2"
STANDOVER HEIGHT 798MM / 31.2"
MEDIUM LARGE EXTRA LARGE
1229MM / 48.4" 1258MM / 49.5" 1287MM / 51"
591MM / 23.3" 619MM / 24.4" 646MM / 25.5"
439MM / 17.3" 439MM / 17.3" 439MM / 17.3"
100MM / 3.94" 110MM / 4.33" 120MM / 4.72"
64.0˚ 64.0˚ 64.0˚
450MM / 17.7" 475MM / 18.7" 500MM / 19.7"
631MM / 24.9" 640MM / 25.2" 649MM / 25.6"
342MM / 13.5" 342MM / 13.5" 342MM / 13.5"
12MM / 0.5" 12MM / 0.5" 12MM / 0.5"
77.4˚ 77.4˚ 77.4˚
72.4˚ 72.4˚ 72.4˚
418MM / 16.5" 440MM / 17.3" 465MM / 18.3"
802MM / 31.6" 802MM / 31.6" 802MM / 31.6"
53
