MENU NAVIGATION

Falcon F Plus line of locators has a toggle switch on top and a trigger switch
under the handle to navigate the menu system and select options.
Use the 4-way toggle switch to access a menu, move between menu options,
and open shortcuts.

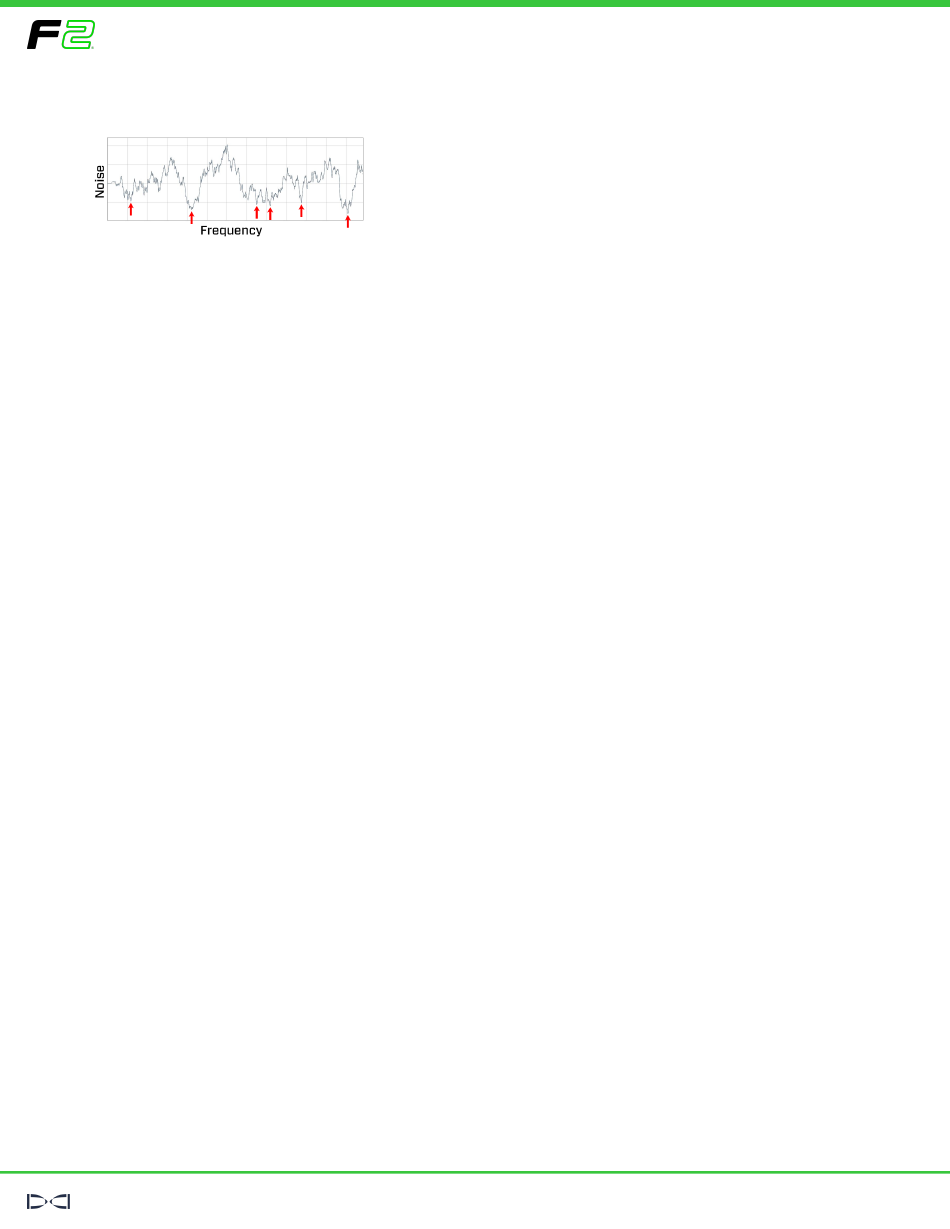

Shortcuts require you to hold the toggle for a second or longer; we call this a
"hold toggle". For example, from the Locate Mode screen, open a transmitter
band selection shortcut by holding the toggle right.
Use the trigger switch to power on the locator, select a menu option, and
take a depth reading.
Pull and release (click) the trigger to select. In some cases, you'll need to hold
the trigger for a second or more to use a function, such as turning the locator
on or taking a depth reading.
SCREEN ELEMENTS OVERVIEW
The Locate Mode, Depth, and Predicted Depth screens are the primary
screens you will use for locating.
When the locator is detecting a signal from a transmitter, the Locate Mode
screen provides real-time data about the transmitter's location, temperature,
pitch, roll, and signal strength.
Depth data appears when the trigger is held at the Locate Line (LL) and
predicted depth appears when held at the Front Locate Point.
