DIGITRAK FALCON F2 TOP TOGGLE
USER MANUAL
DCI DigiGuide
05.18.2024

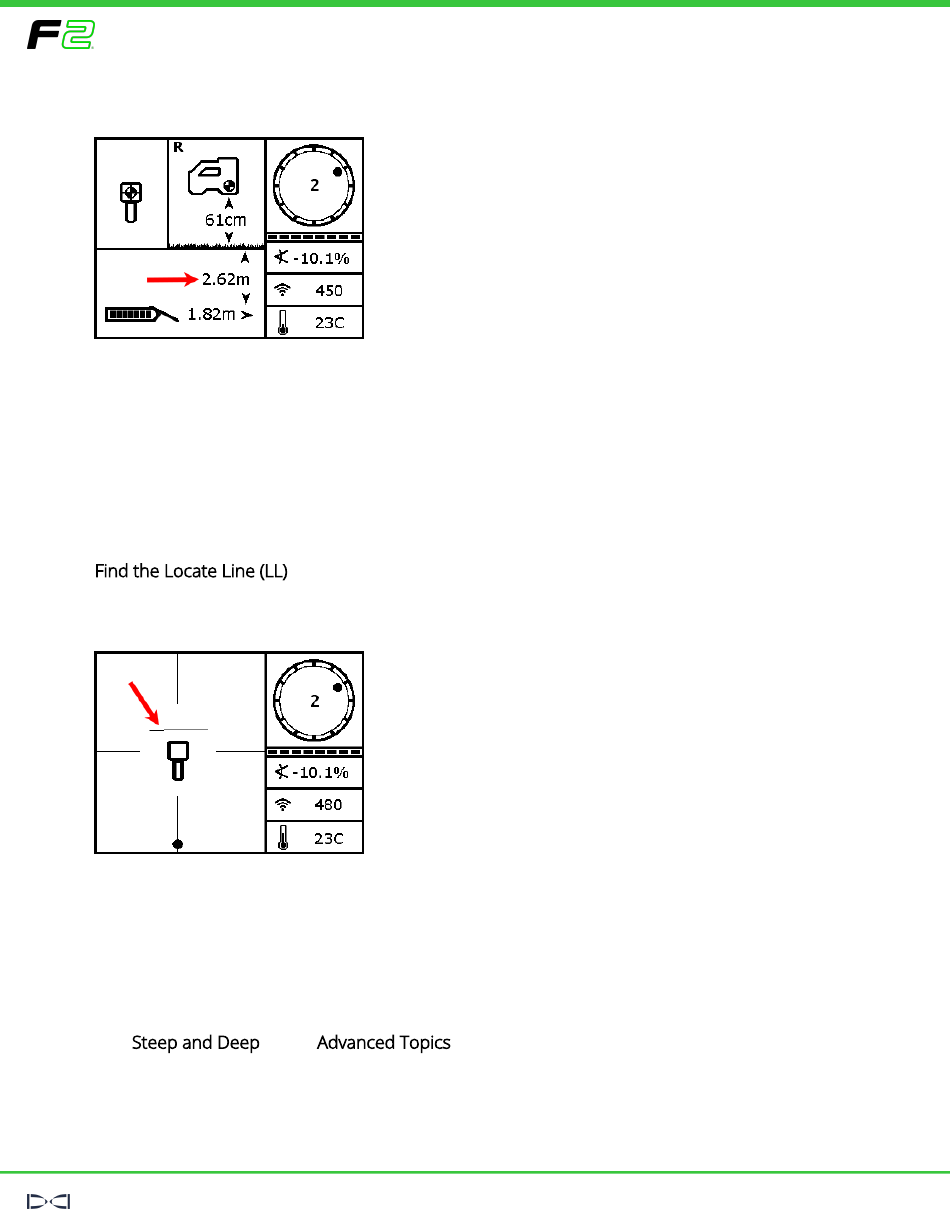

STEP 8 OF 12
Look back toward the RLP. The drill head is positioned to travel toward you
along the line connecting the RLP and FLP.
STEP 9 OF 12
Find the Locate Line (LL)
Walk back toward the RLP until the Locate Line (LL) appears.
STEP 10 OF 12
Ensure the locator is on the line connecting the two marked locate points.
Position the locator so the LL passes through the center of the box. The drill
head should be beneath this point as long as the transmitter is relatively level
(see Steep and Deep under Advanced Topics).
33
DIGITAL CONTROL, INC
