Digital Control DigiTrack Falcon F1 Quick Start Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Power On Receiver
1.
Install battery and click trigger to
power on the receiver.
2.
Ensure the region number in the
globe icons on the startup screen and
transmitter match.
3.
Click the trigger to reach the Locate
screen.
Receiver Locate Screen
Transmitter and receiver must be
3
(page
). For DigiTrak remote displays, see separate manual or
Quick Start Guide.
Receiver Main Menu
Click to open the Main menu. Click between menu options, hold
briefly and release to select.
© 2018 Digital Control Incorporated, Oct
All rights reserved. 402-1028-00-B English

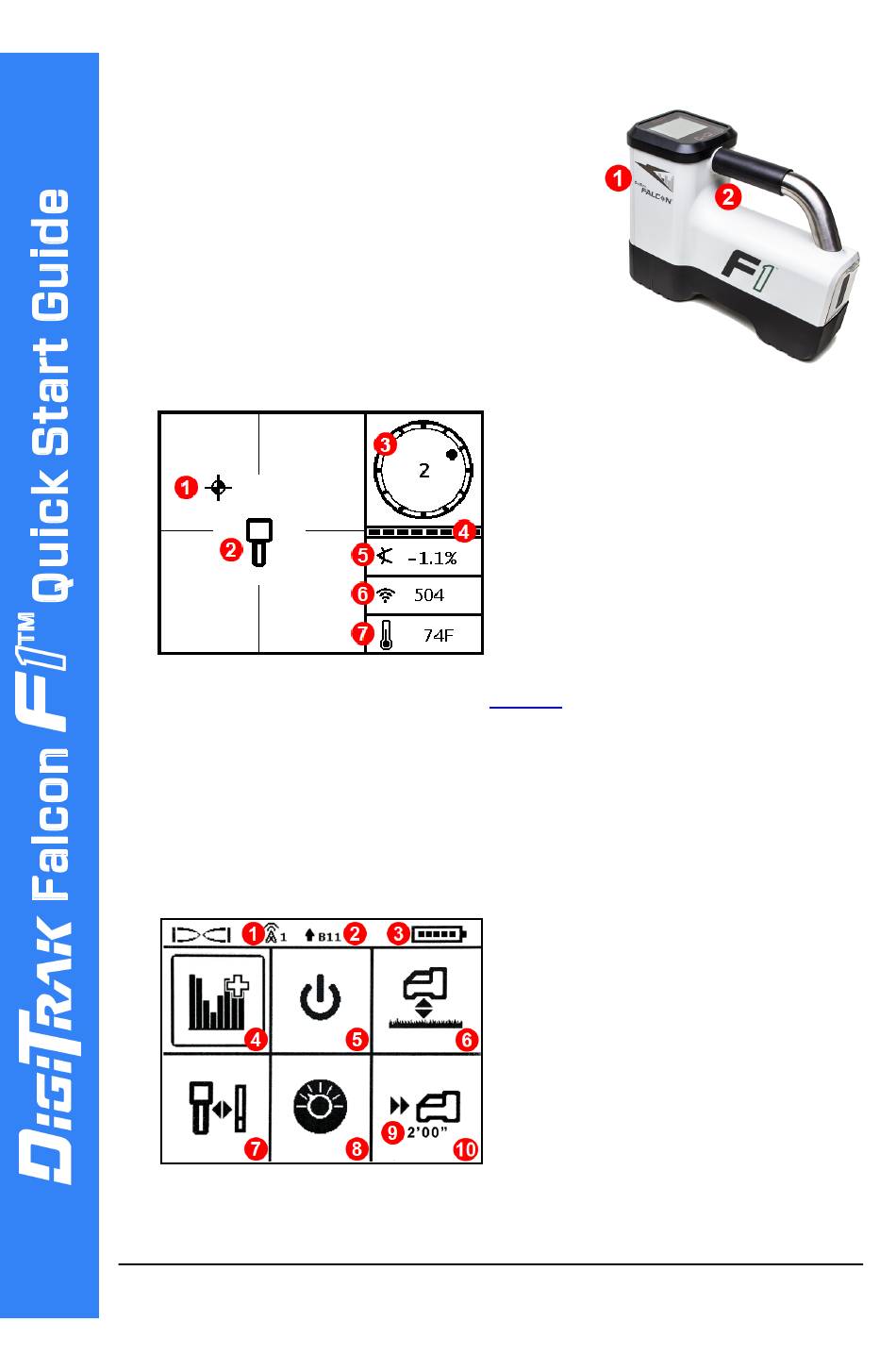

1. IR port    2. Trigger
1. Locate point (ball)
2. Receiver
3. Roll indicator
4. Roll/pitch update meter
5. Transmitter (Tx) pitch
6. Tx signal strength
7. Tx temperature
Paired
before data will display
1. Telemetry channel
2. Frequency band
3. Battery strength
4. Frequency Optimizer
5. Power off
6. HAG
7. Calibration
8. Settings
9. Target depth
10. Target Steering
www.digital-control.com
- 1 -
